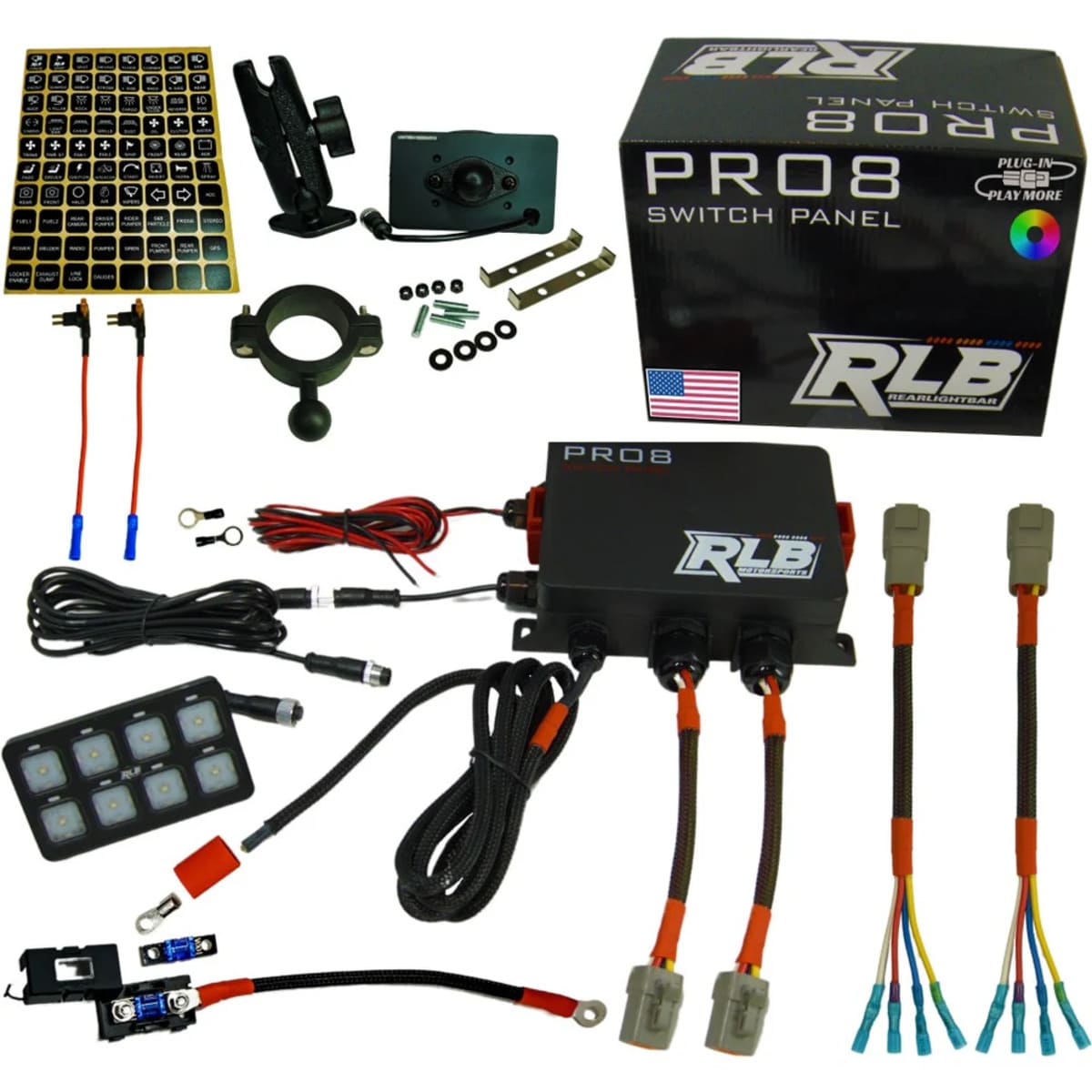

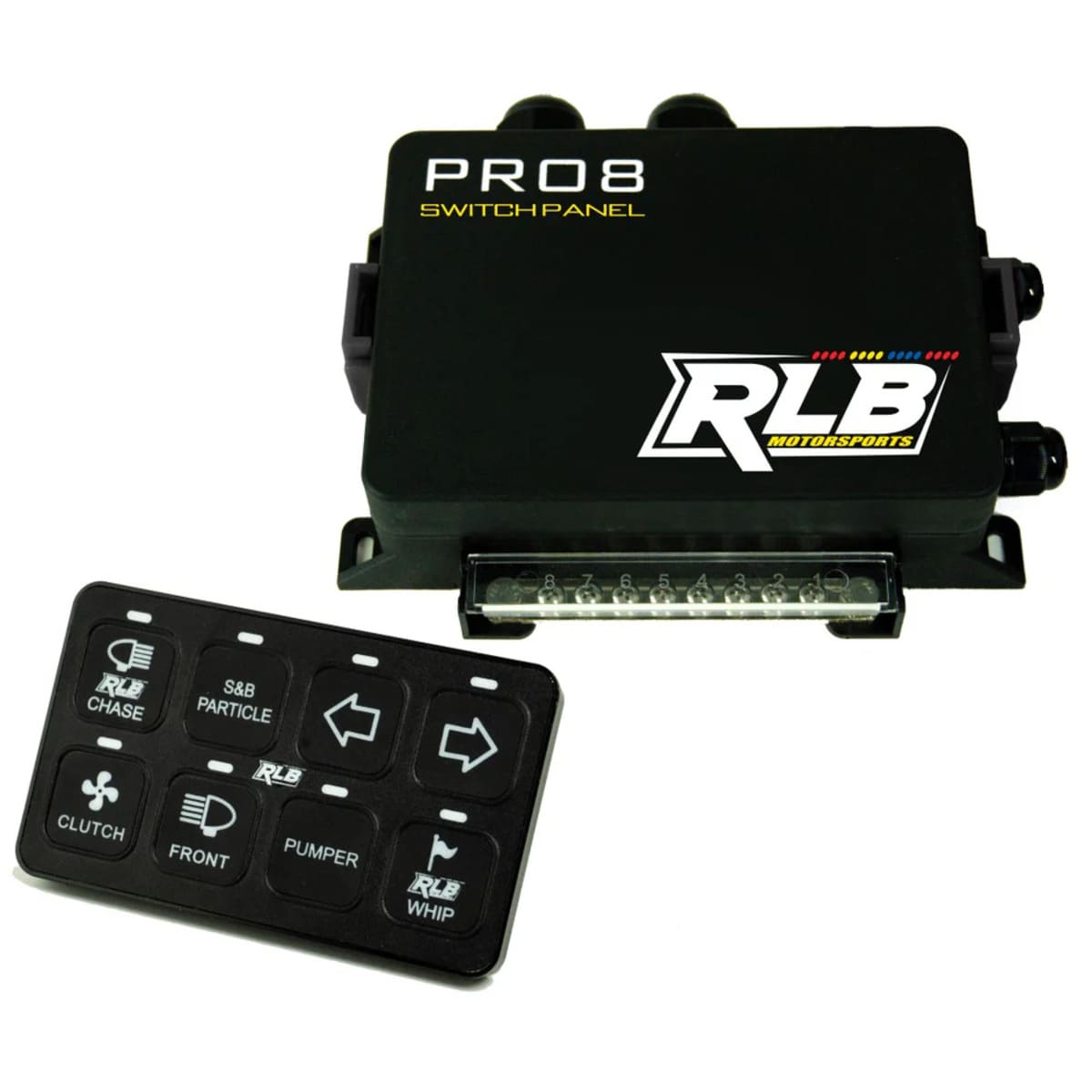

Pro-8 Switch Panel RLB Motorsports is an 8 gang (button) electronic programmable switch panel. Allows for easy installation of any 12V accessories to any off-road vehicle, UTV, Jeep, car, truck, RV, or boat. Waterproof, 100% serviceable, and with four easy mounting options. All-in-one Plug N Play kit.

All Systems Include:

• Sticker Legend

• Eight User-selectable Programmable Switches

• Eight 30a Circuits

• Waterproof Power Module

• 100% Serviceable, the Universal Relays and Fuses Are Replaceable, Not Solid State

• 4 Backlight Color Options; White, Blue, Green, and Red

• Two Installation Options: Direct to Battery or Ignition Activated

• 4 Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount

• Low Voltage Cut-off Protection

• Overvoltage Protection

• Completely Serviceable Fuse/relay Power Module

Switches Can Be Programmed for:

• On/off or Momentary

• Blinker

• Flash or Strobe, With User-selectable Strobe Patterns and One-touch Activation

• Memory Function

• Master Memory on/off Function

• Waterproof Polycarbonate Overlay Faceplate

Power Module:

• Size: Length 8.27″, Width 6.3″, Height 2.24″

• Temp. Rating: Automotive -40c – 125c

• Waterproof and Dust Rating: Ip66

• Amp Rating: 100a Max

• Each Switch Output: 30a Max

• Low Voltage Cutoff

• Ignition Control

Switch Panel:

• Size: Length 4.57″, Width 2.72″, Height 0.47″

• Housing: Anodized Aluminum

• Switch Membrane and Sticker Legend: Polycarbonate

• Temp. Rating: -30c – 85c

• Waterproof and Dust Rating: 1p66

• Backlight Colors: White, Blue, Green, Red

• Switch Functions: on/off, Flash, Strobe, Momentary, Blinker

• Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount
