RLB Motorsports Polaris RZR Desert Kit

RLB Motorsports Polaris RZR Desert Kit

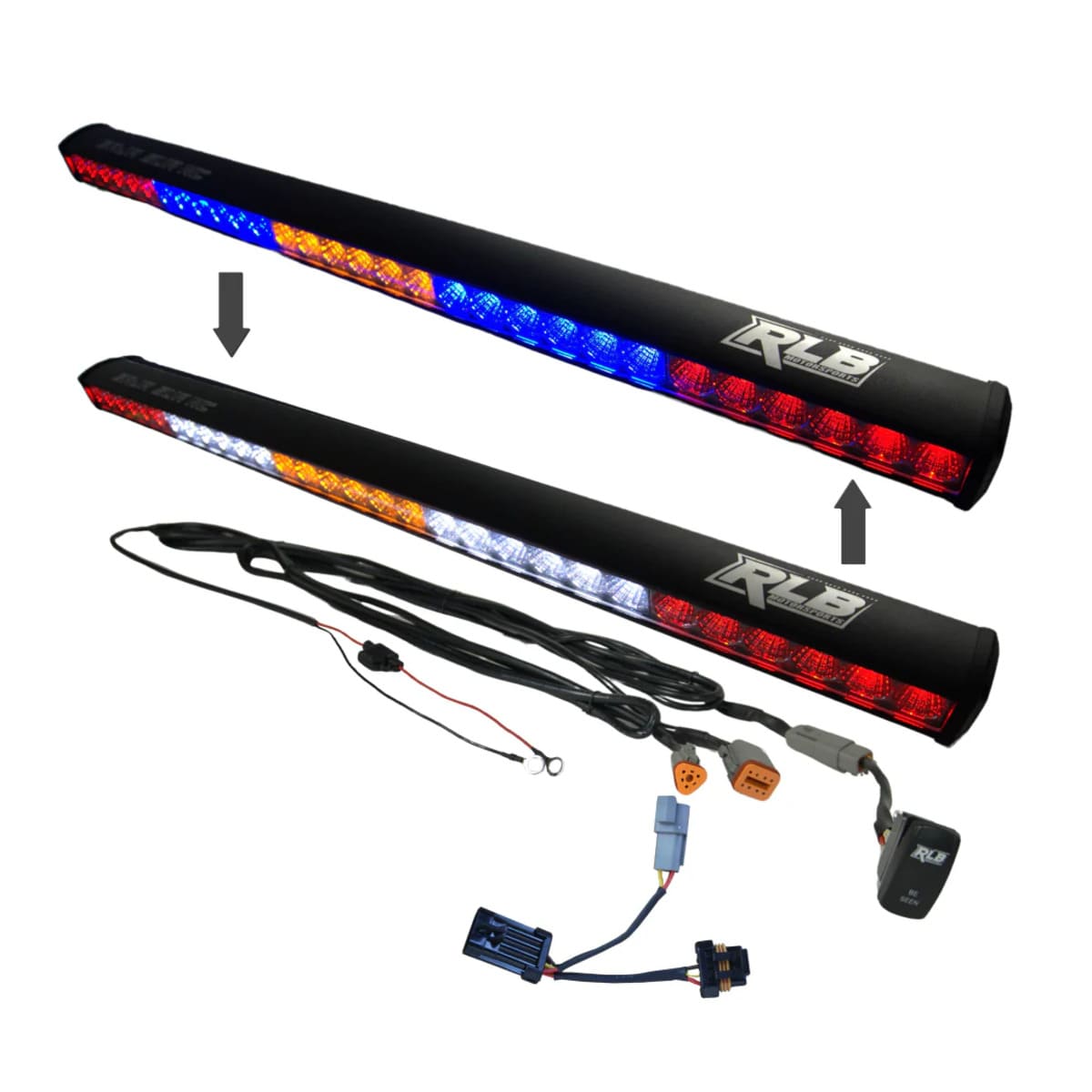

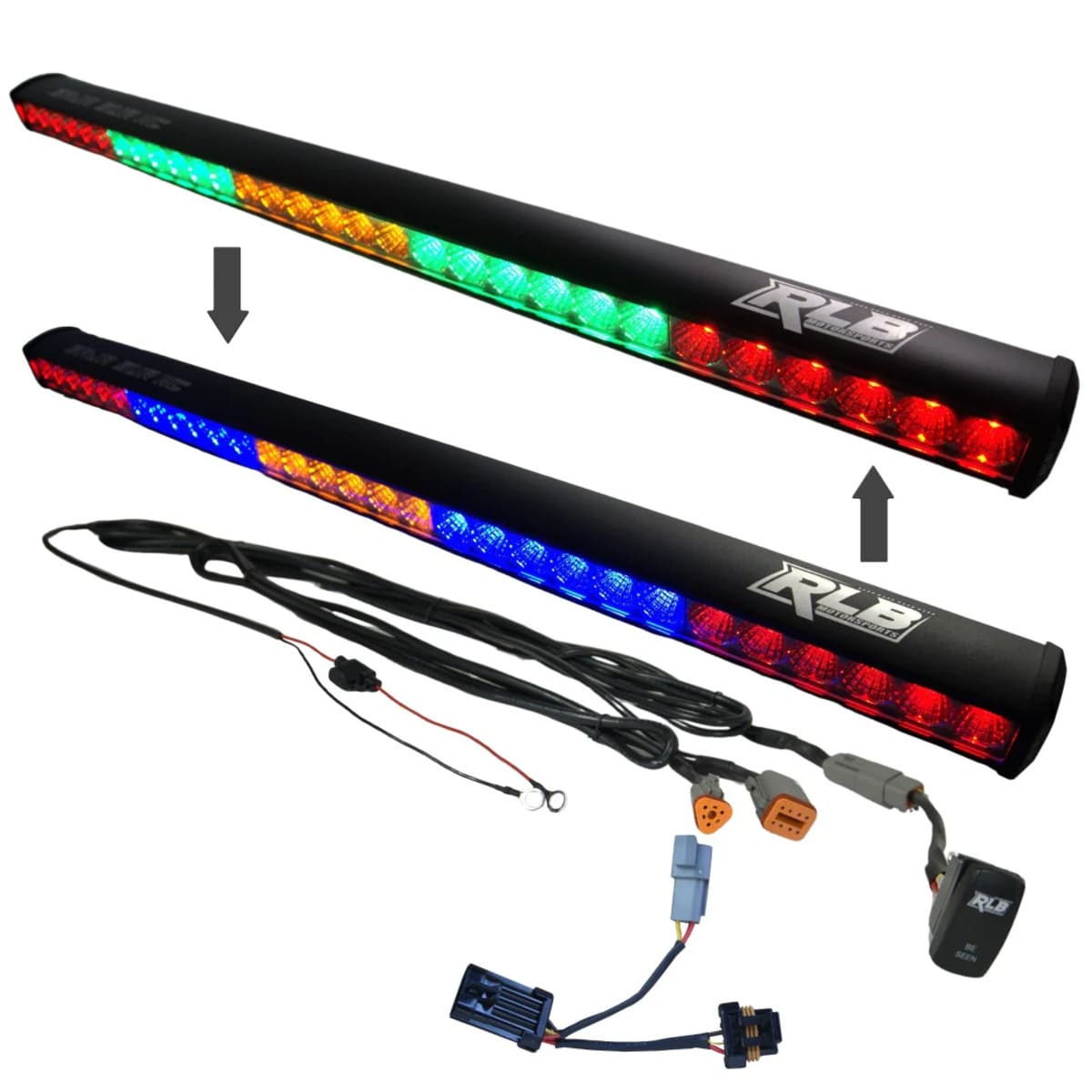

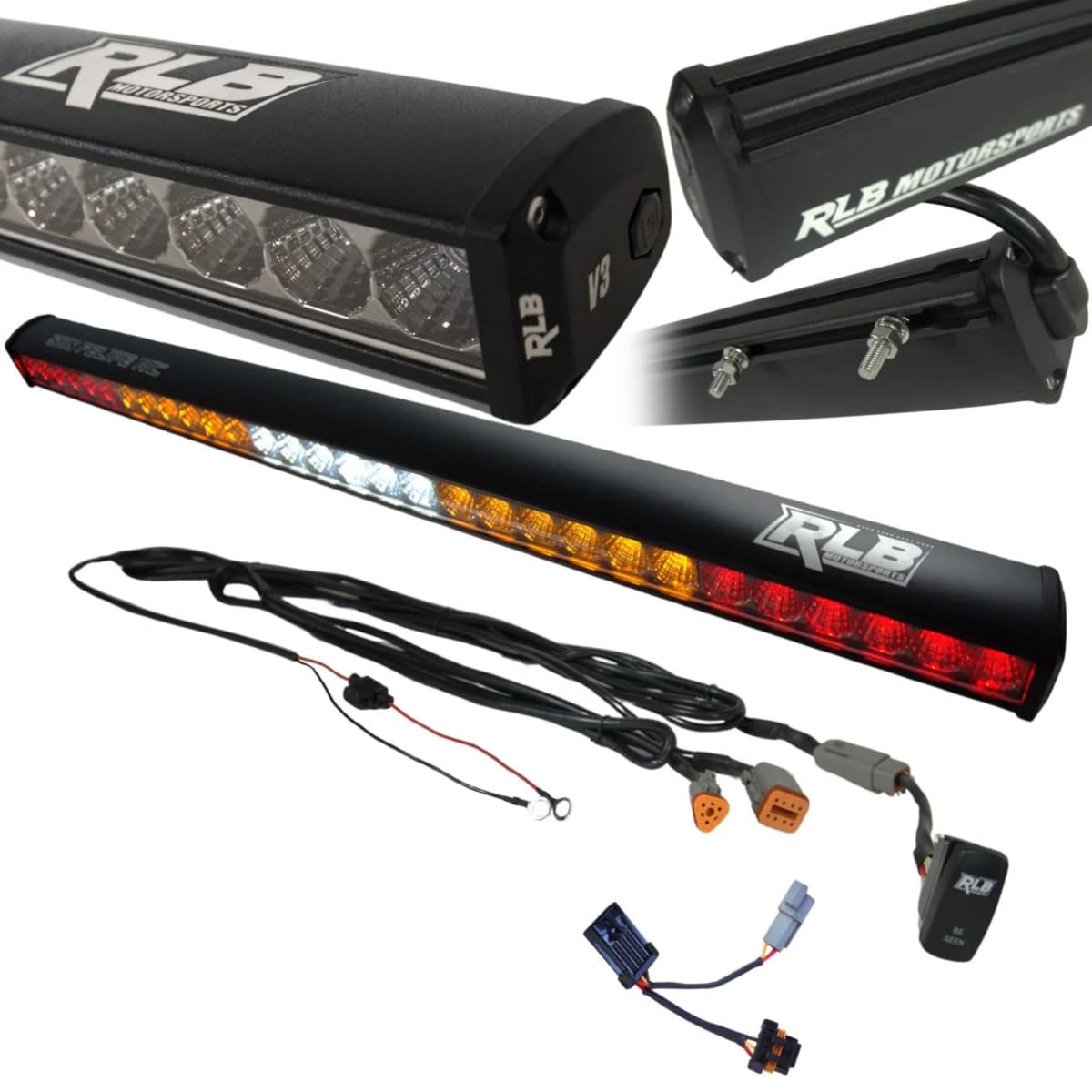

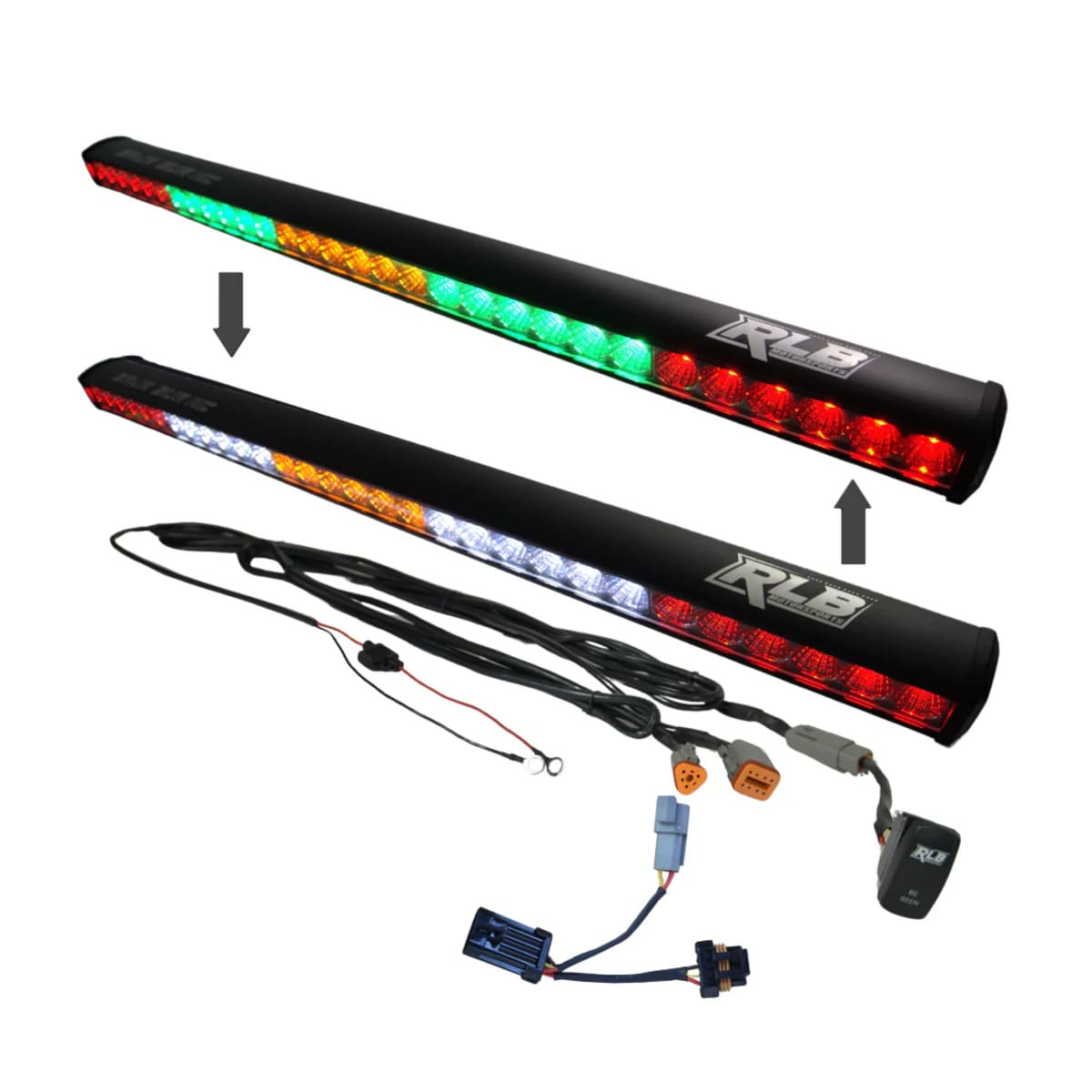

Features:

• Running/brake Led Lights: Blinker Capable With Any Blinker Kit (Sold Separate)
• Led: Dual Color Options: Green/amber/white, Blue/amber/white, Blue/green/amber or Amber/white
• Beseen™rocker Switch: Three Position Multi-Function Rocker Switch; 1) Color Option Off, &2) Color Option On, and 3) Momentary – Quick Press – Change Color Strobe Pattern (White Option No Strobe) &Amp; Long Press (2 Second Hold) – Switch Between Color Options (Green/white, Blue/white, Blue/green or Amber/white). Beseen™led Illuminated Rocker Switch Fits All Factory Installed Rocker Slots, for Both Utv and Automotive.
• Proprietary Rocker Switch: Three Position Multi Function Rocker Switch; 1) Off, 2) On, and 3) Momentary – Quick Press to Change Led Strobe Pattern, Long Press – 2 Second Hold, Changes Between Led Color Options.
• Led Strobe Light Combinations: 7 Patterns; 1 Solid, and 6 Different Strobe Pattern Combinations
• Dual Variable Trac-Mounting-System: 2 Mounting Slots Run the Full-Length of Light Bar; 1 Vertical (Back Side of Housing) 1 Horizontal (Bottom of Housing)
• Plug & Play for All Polaris Rzr Model Utvs – No External Relay Needed
• Built-in Overvoltage Protection


Specifications:

• Led Color: RED: 620-360NM AMBER: 585-595NM WHITE: 6500-7000K BLUE/GREEN: 520-530NM
• Led Sourse: Epistar 1w LED
• Led Life: 50,000 hour life expectancy
• Lens: Hard Impact Resistant Polycarbonate
• Housing: Powder coated Aircraft Grade Aluminum
• IP Degree: IP67 Fully Waterproof Housing
• Wiring: Sealed GM Style Deutsch waterproof connectors
• Hardware: Stainless steel, mounting bolts included
• Universal for all12V power source systems

Full Power Consumption: Dimensions:

• 36”: 36 Watt 36″L x 1.750″H x 2.125″D
• 30”: 30 Watt 30.125″L x 1.750″H x 2.125″D

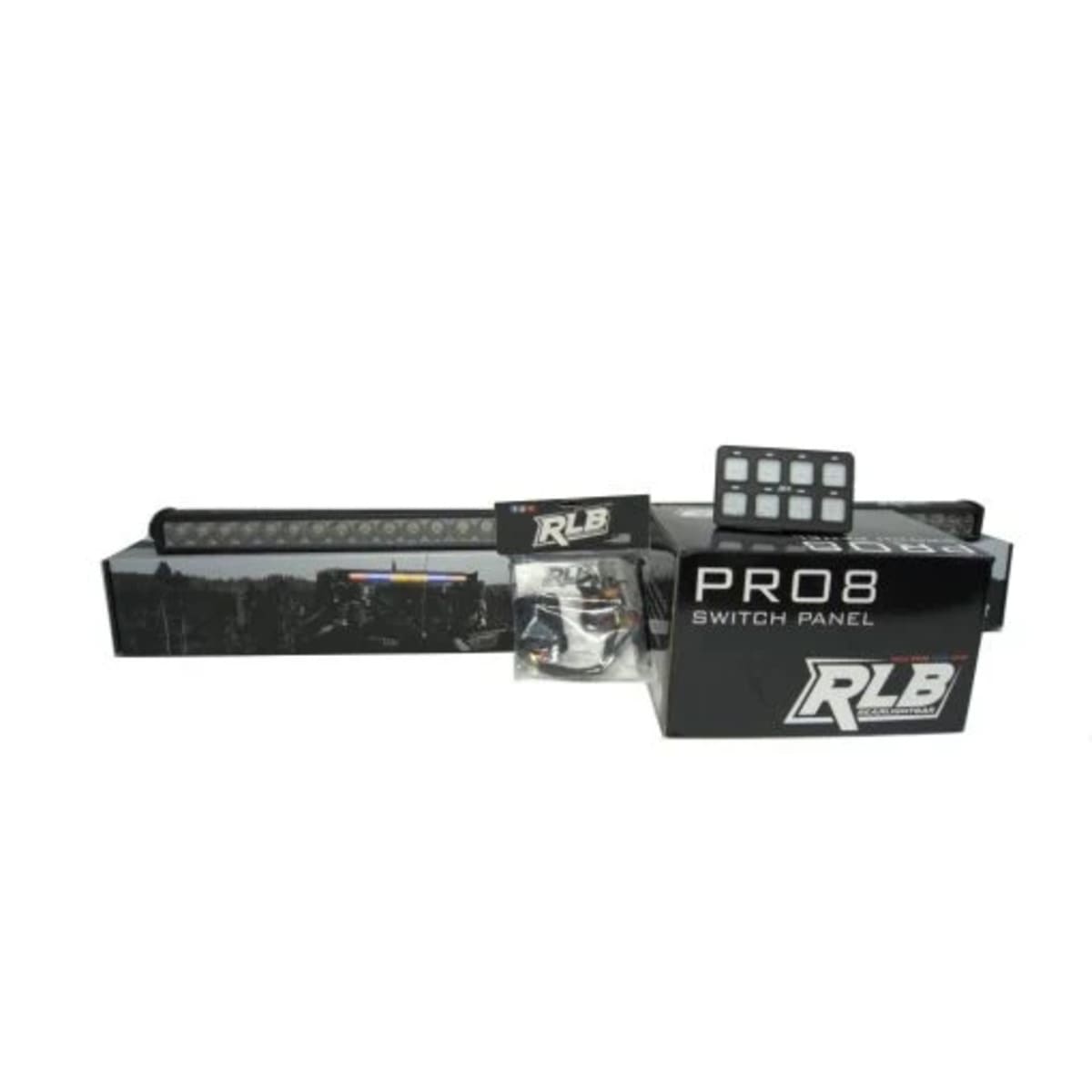

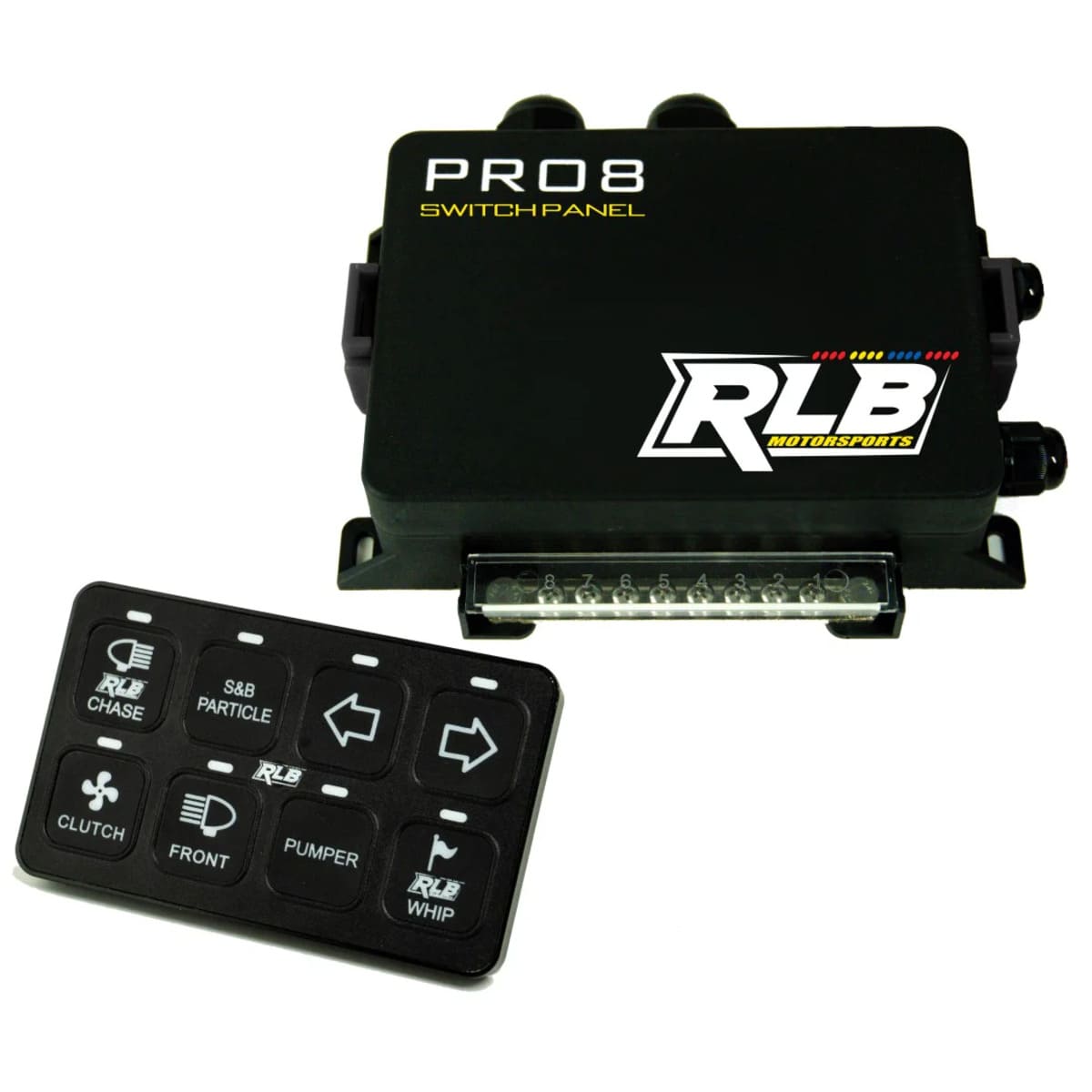

The PRO8 is an 8-button electronic programmable switch panel. Allows for easy installation of any 12V accessories to any off-road vehicle, UTV, Jeep, car, truck, RV, or boat. Waterproof, 100% serviceable, and with four easy mounting options. All-in-one Plug N Play kit.

PRO8 Power Module:

• Size: Length 8.27″, Width 6.3″, Height 2.24″
• Temp. Rating: Automotive -40c – 125c
• Waterproof and Dust Rating: Ip66
• Amp Rating: 100a Max
• Each Switch Output: 30a Max
• Low Voltage Cutoff
• Ignition Control

Switch Panel:

• Size: Length 4.57″, Width 2.72″, Height 0.47″
• Housing: Anodized Aluminum
• Switch Membrane and Sticker Legend: Polycarbonate
• Temp. Rating: -30c – 85c
• Waterproof and Dust Rating: 1p66
• Backlight Colors: White, Blue, Green, Red
• Switch Functions: on/off, Flash, Strobe, Momentary, Blinker
• Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount

All Systems Include:

• Sticker Legend
• Eight User-selectable Programmable Switches
• Eight 30a Circuits
• Waterproof Power Module
• 100% Serviceable, the Universal Relays and Fuses  Are Replaceable; Not Solid State
• 4 Backlight Color Options; White, Blue, Green, and Red
• Two Installation Options: Direct to Battery or Ignition Activated
• 4 Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount
• Low Voltage Cut-off Protection
• Overvoltage Protection
• Completely Serviceable Fuse/relay Power Module

Switches Can Be Programmed for:

• On/off or Momentary
• Blinker
• Flash or Strobe, With User-selectable Strobe Patterns and One-touch Activation
• Memory Function
• Master Memory on/off Function
• Waterproof Polycarbonate Overlay Faceplate


Installation Instruction:
