Morimoto Banger Bar Harness Power (Big Banger)

Morimoto Banger Bar Harness Power (Big Banger)

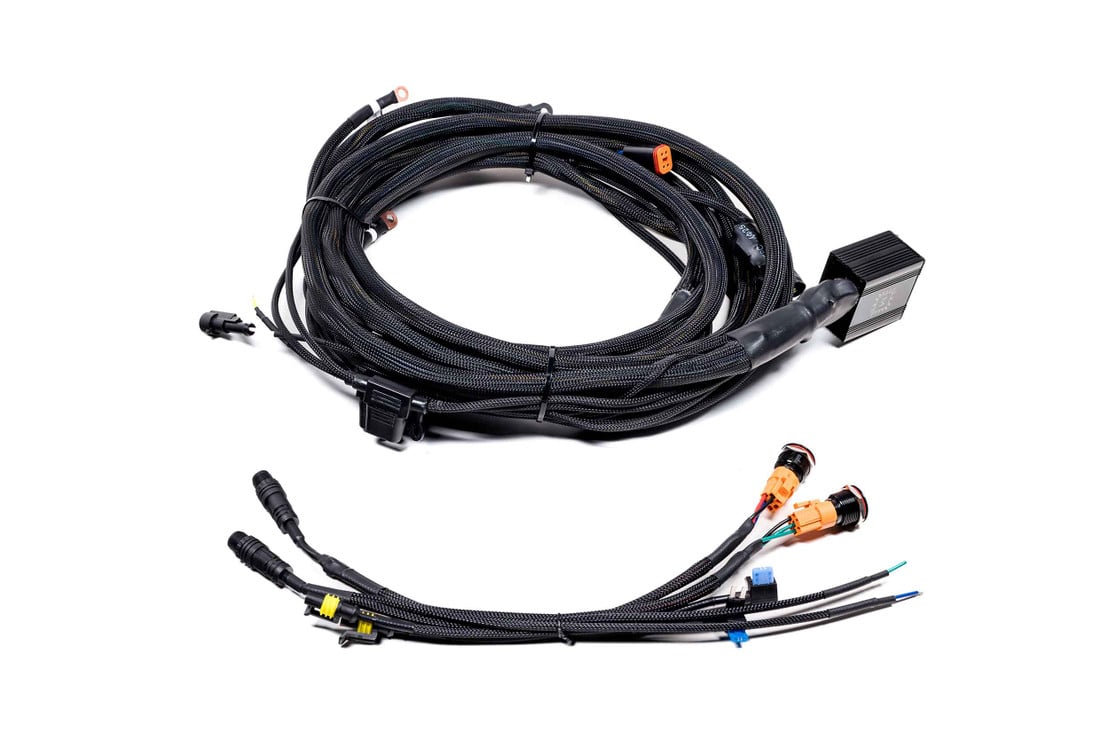

Power Up: The Morimoto big banger bar is a piece of equipment designed to set a new standard in in its segment, and the same goes for the wiring. This harness is designed to control a series of big banger pods and their dual intensity backlight with ease.

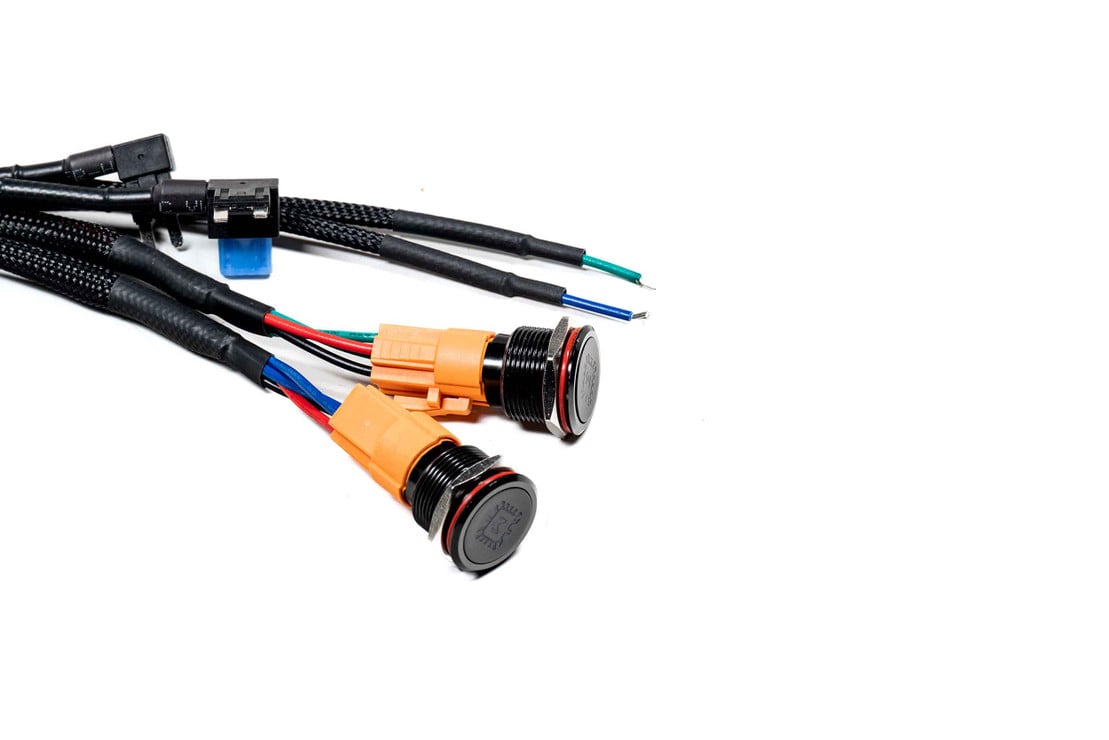

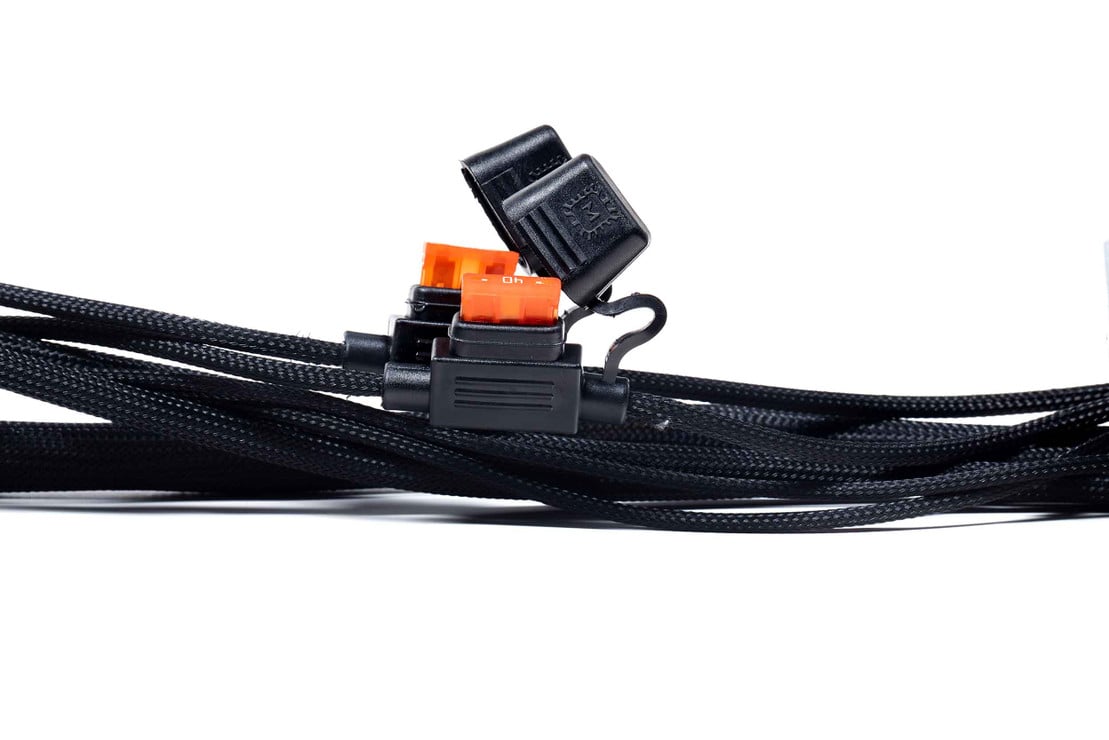

OEM+: Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with Hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-4s female outputs with dual seals. Stainless steel power and ground terminals. Proprietary m-spec push button switch with Amber-led backlight.

Proper: All wiring is properly sized and relays rated for flicker-free, reliable power delivery. Every line of the 16 AWG copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy duty heat shrink. Your factory wire harness Will fall apart before this thing.

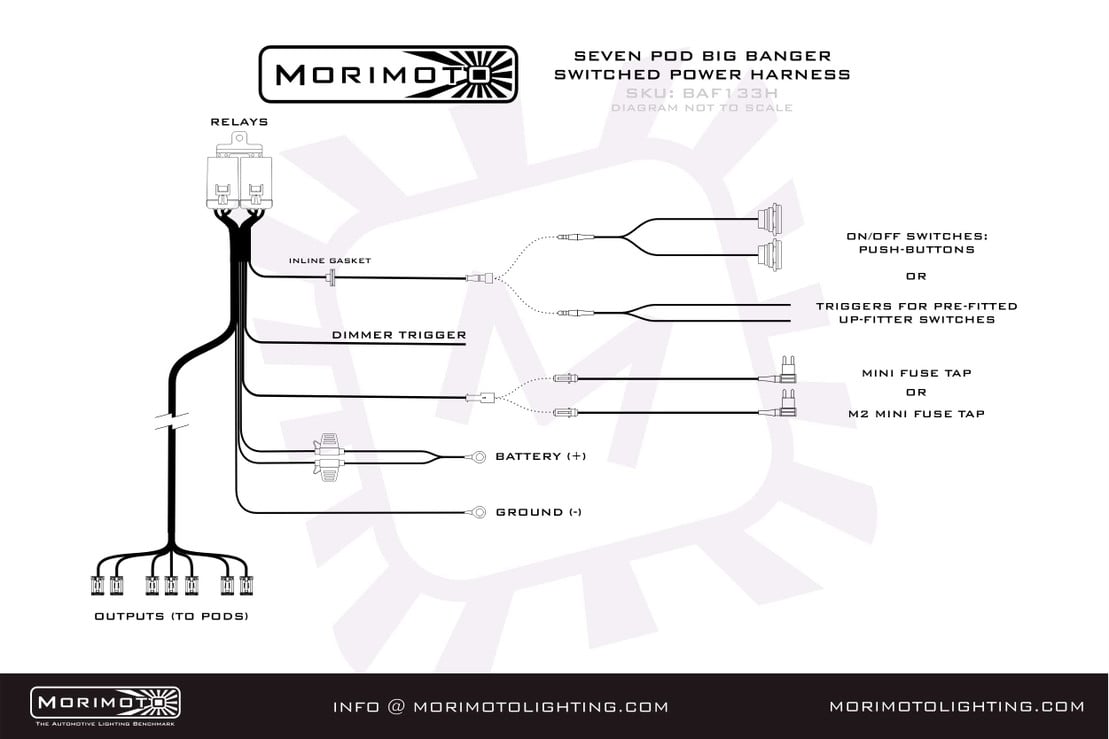

Plug N Play: The connections on the harness have been laid out in a logical way to power up to seven big bangers linked together with the banger bar links. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation, since you Don’t have to jam the switch mechanism through the firewall. The harness also includes an input line that’s ideal for use with up fitter switches.

DRL Drive: The harness is designed to send power to the big banger backlight using an ignition-switched power source in your fuse box. To do so, the harness includes both a mini and micro fuse tap to ensure success regardless of your make/Model. This Will make the backlight run at full intensity. In order to dim the backlight for dusk or night time driving, the harness has a separate line that should be tapped into your parking light or low Beam circuit.

Compatible: This harness is a perfect match for Morimoto big banger led pods linked together as a light bar. It is purposely designed to deliver enough power, and control the dual intensity backlight. While it May work with other 4-pin led pods on the market, it is not designed it to be Universal. Note: The harness is built to work with up to 7 pods, however, it can also be used to power shorter bars. If running 6 pods instead of 7, skip one of the middle three connectors for a 2+2+2 switching configuration. If running 5 pods instead of 7, skip the first and last connector for a 1+3+1 switching configuration. Remember to use the included DT connector caps to seal off any unused connectors.

Benchmark: Morimoto. The automotive lighting benchmark. We are globally recognized as the brand to beat when it comes to aftermarket lighting upgrades for the automotive aftermarket. No other brand blends performance, quality, and style quite like we do. Our vast product line covers today’s most Popular trucks and cars. If you Don’t see it, trust that we can make it. Whether you’re interested in something off the shelf or a brand new product designed exclusively for you: Connect with Morimoto today!

What’s Included:

Compatibility:

Tech Specs:

Instructions:
