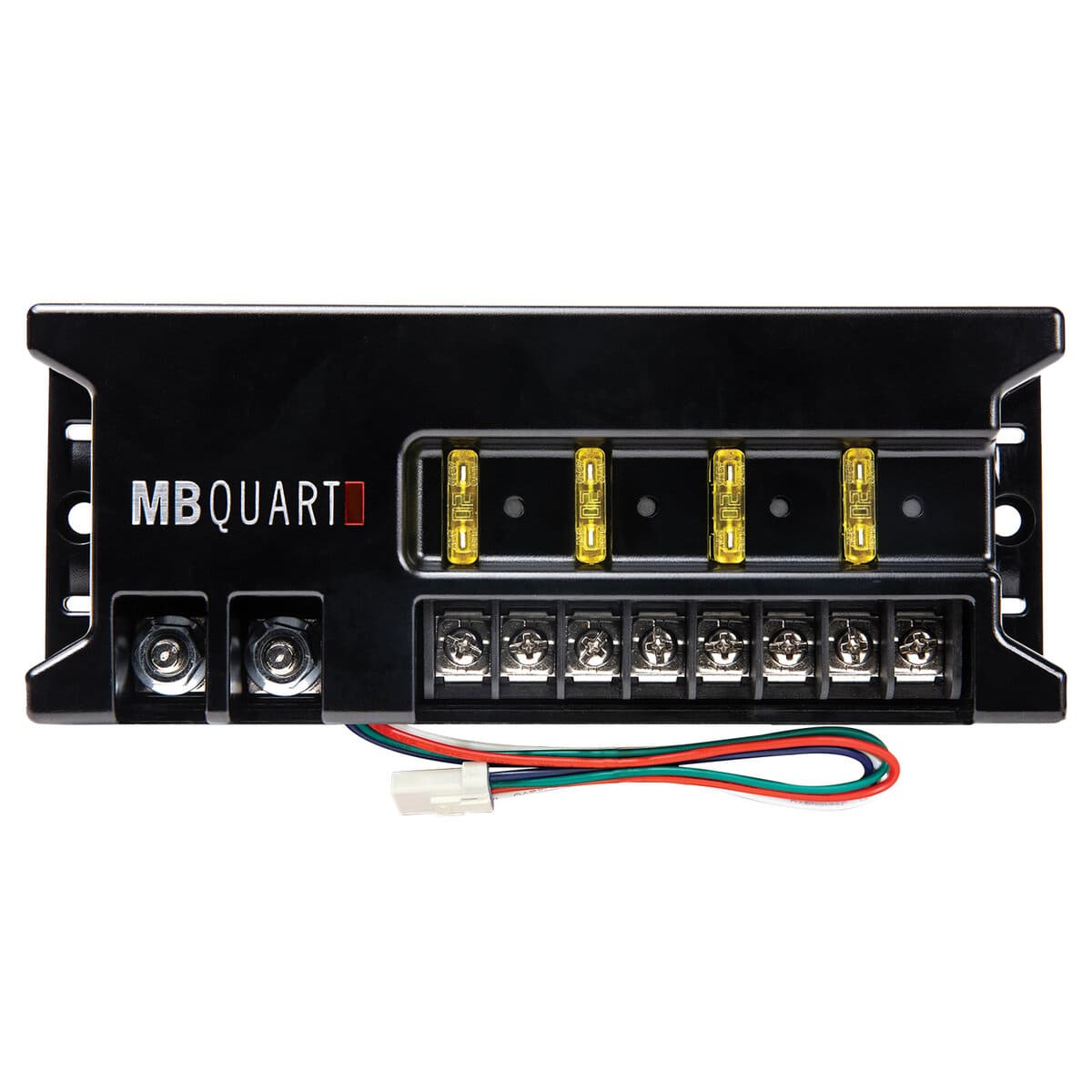

MB Quart GMR-RB4 4-Circuit Relay Bank
The GMR-RB4 relay bank features four 20-amp (max) circuits that are plug-and-play and controlled by the GMR7V1 Source Unit (sold separately). This allows users to easily add, wire, and control any switchable 12V accessory in their vehicle.
Features:
| Compatible Vehicle Fitment | Universal |
|---|---|
| Compatible Product Models | Directly plug-and-play with the GMR7V1 Source Unit (sold separately), giving users access and control to any 12V accessory via the GMR7V1's digital switches. |

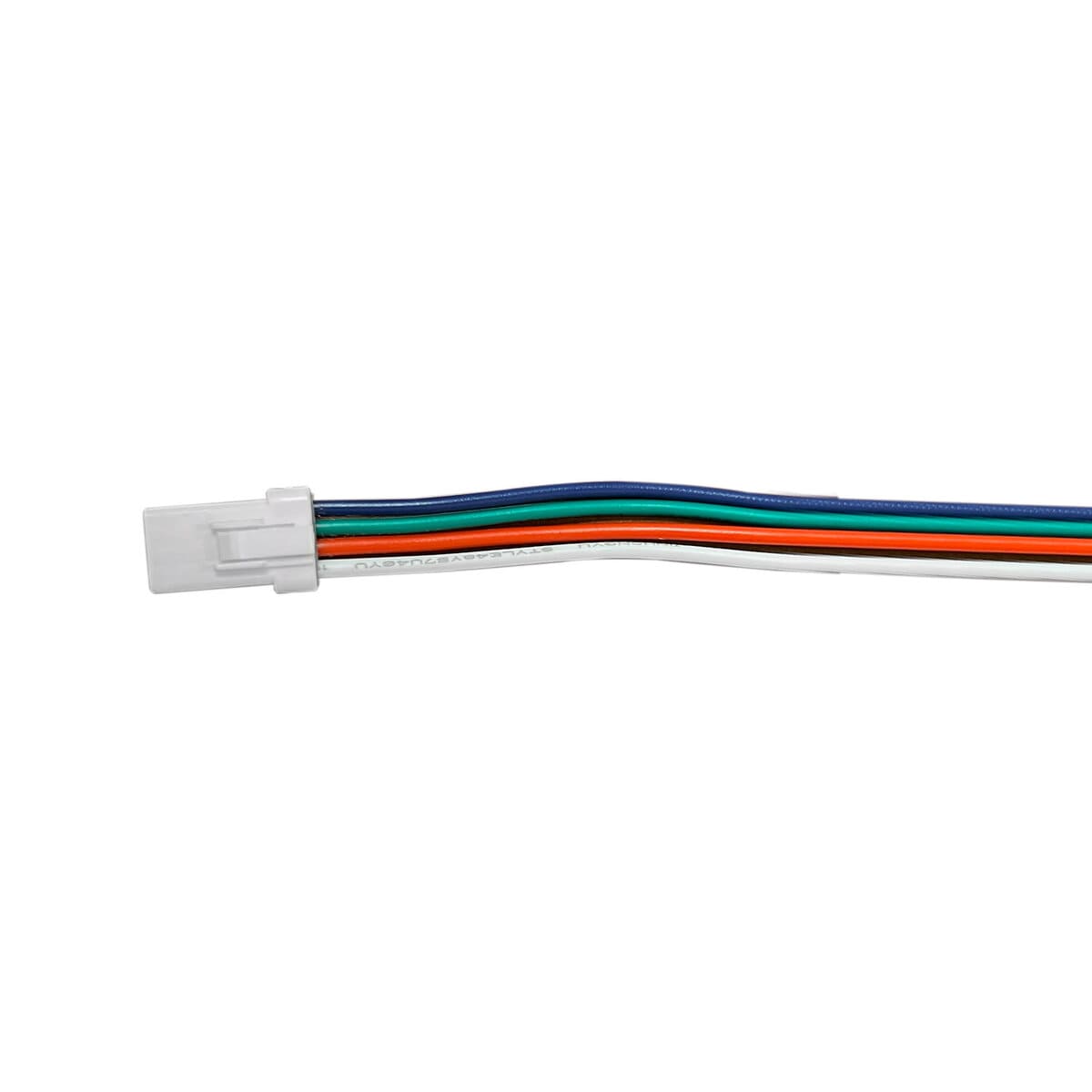

| Installation | The GMR-RB4 has a simple three-wire connection. Connect the relay bank to the GMR7V1 (sold separately) via the male JST connector to the female JST connector on the GMR7V1 labeled 'AUX TRIGGER'. Provide 12V power/ground to the GMR-RB4 via a 8 AWG wire with an 80A fuse on the 12V+ wire. Adding 12V accessories to each 20A (max) circuit is done via a simple 12V power and ground connection. |
| Other Features | Quickly and easily know which fuse is blown via the glowing LED indicator that will light as long as a load is still connected to the circuit. |
Specifications:
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 8.5 × 4.19 × 2 in |
| Item Length (in) |
6.875 |
| Item Width (in) |
2.75 |
| Item Height (in) |
1.25 |
| Type |
GMR7V1 Accessory |
| Brand |
MB Quart |
| Series |
GMR |
| Category |
Marine, Powersports |
| Condition |
New |
| Color |
Black |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Accessory Dimensions |
6.875" x 2.75" x 1.25" |
| Accessory Additional Specs |
Four 12V circuits – 80A(max) total / 20A(max) per circuit |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Instructions:
| View/Download (1.9 MB) | MB Quart GMR7V1 Accessory (GMR-RB4) Quick Start Guide (Rev1) |
|---|
