LSK Yamaha YXZ Long Travel Kit

LSK Yamaha YXZ Long Travel Kit

LSK Is Proud To Introduce Our New And Improved +3.5″ YXZ Long Travel Kit! Our Kit Uses 4130 Tig-Welded Control Arms And Tie Rod Extensions For Improved Structural Rigidity And Weight Savings Over Traditional Mild Steel Arms. This Kit Is Best Suited For Those Who Use Their Vehicle In Both The Dunes And Out In The Desert. While This Kit Can Be Used Rock Crawling, The Increased Track Width Could Pose An Issue For Some Tighter Trails.

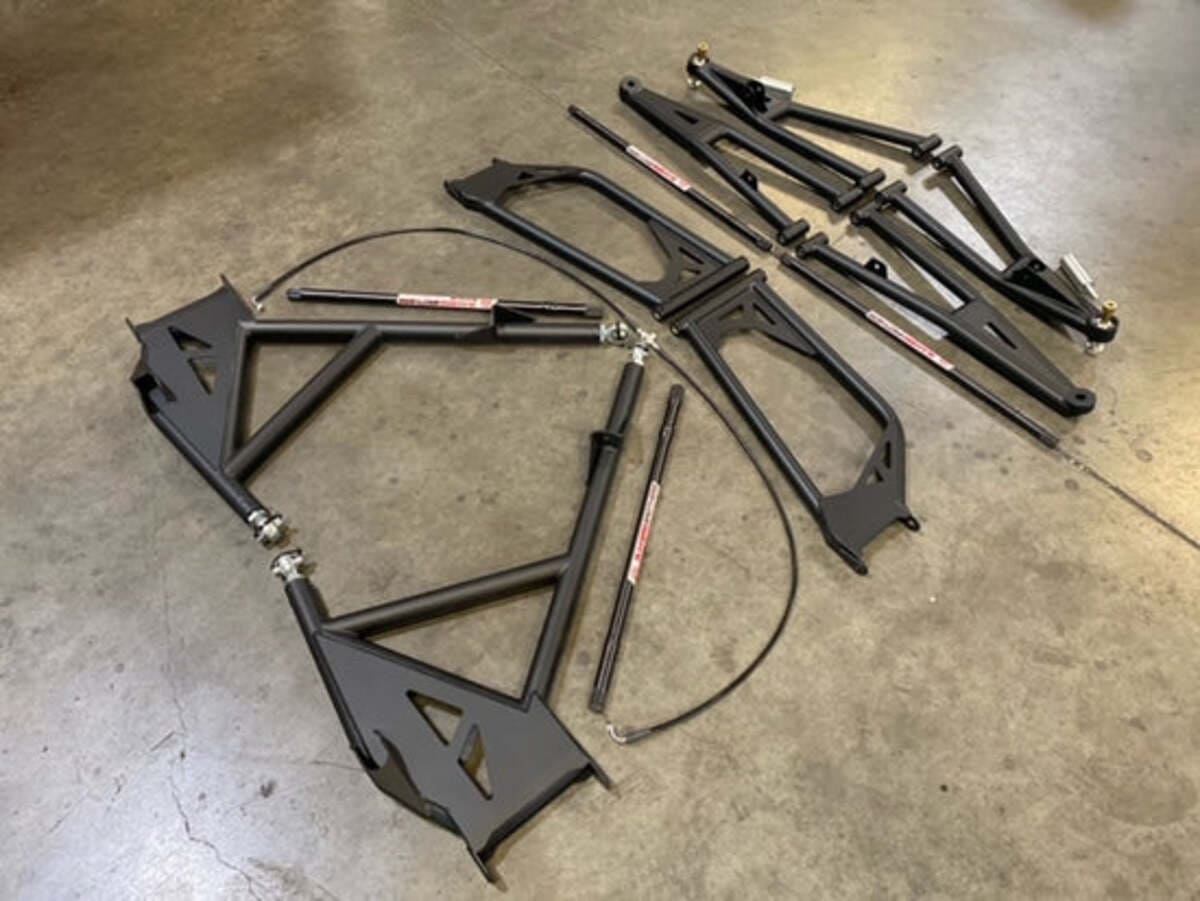

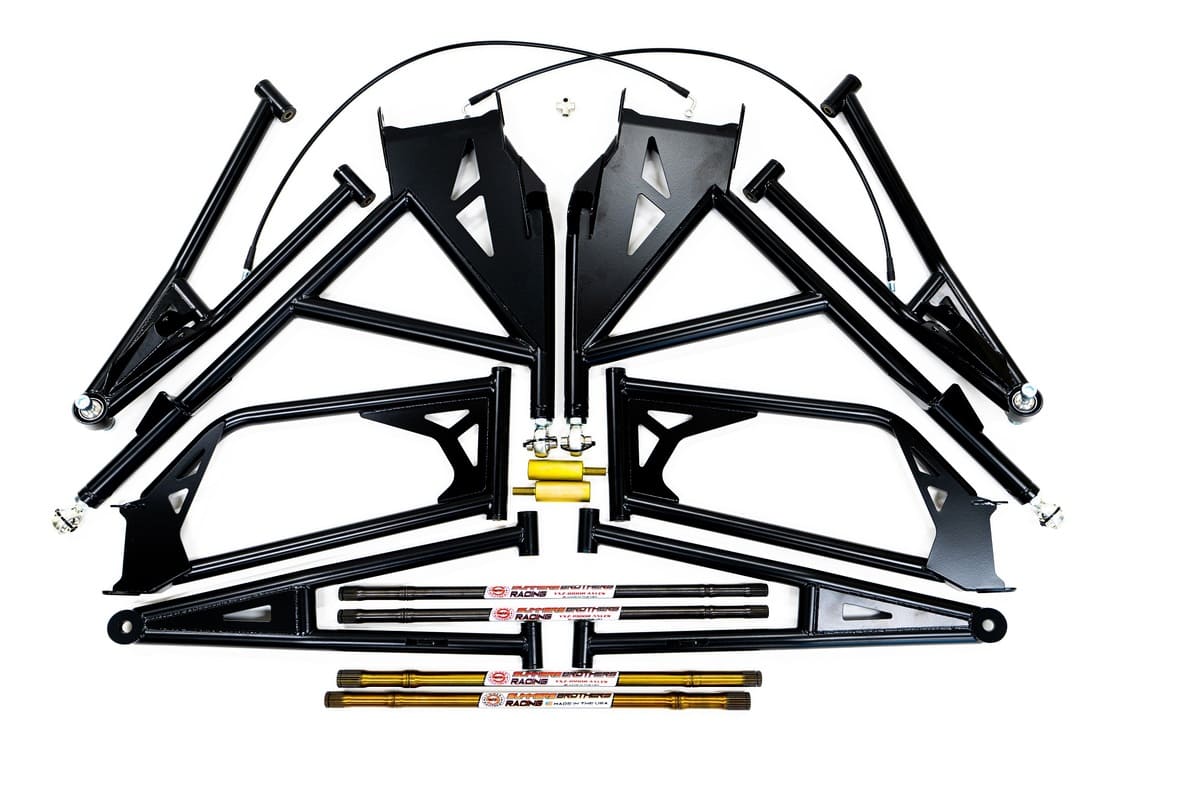

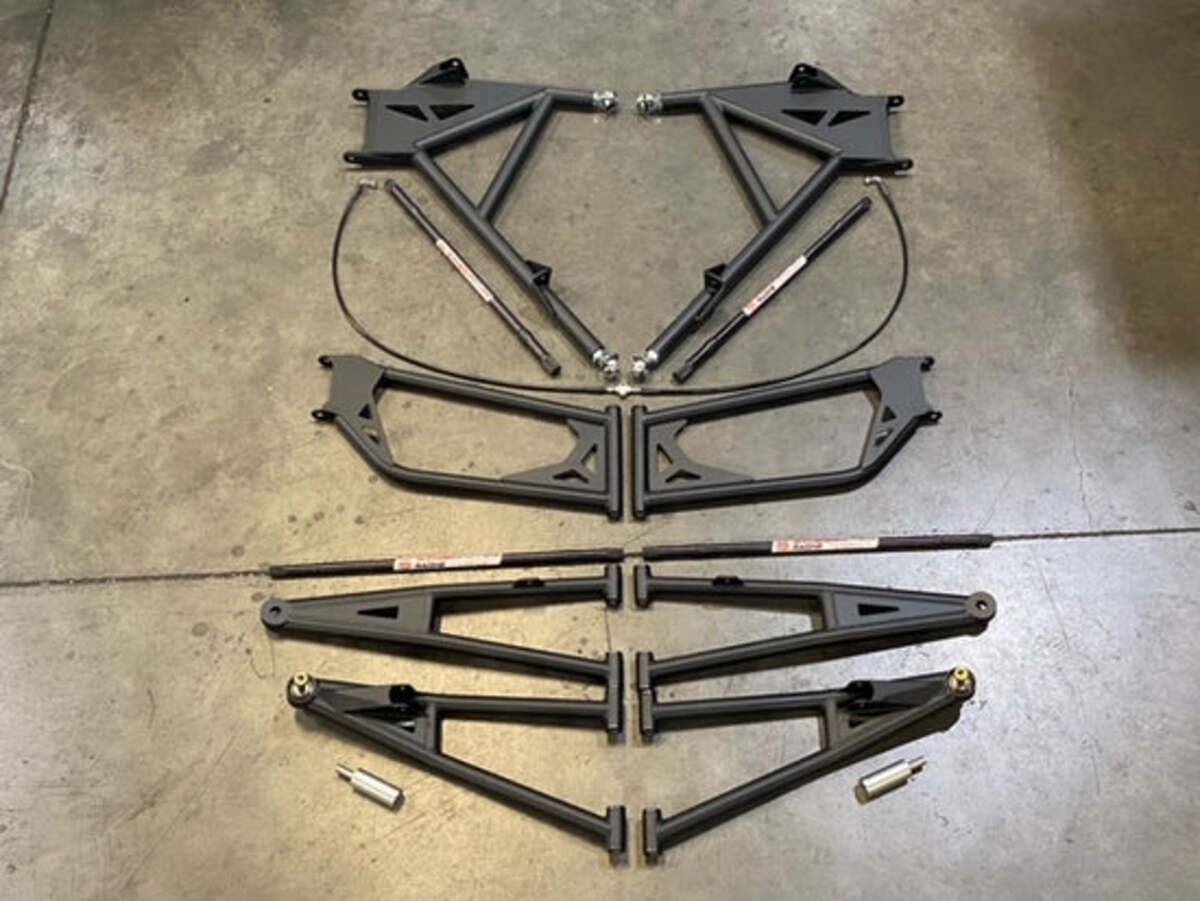

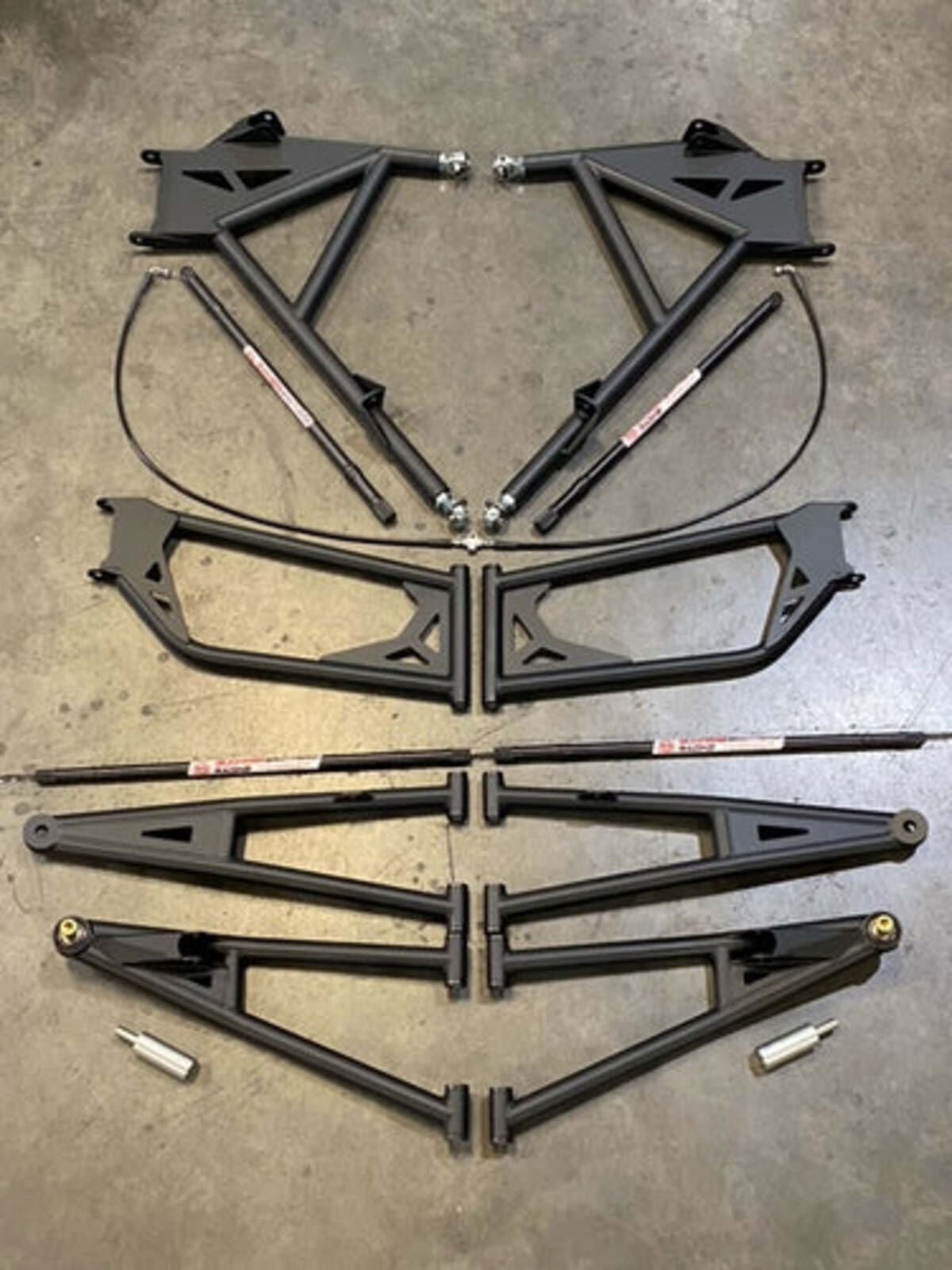

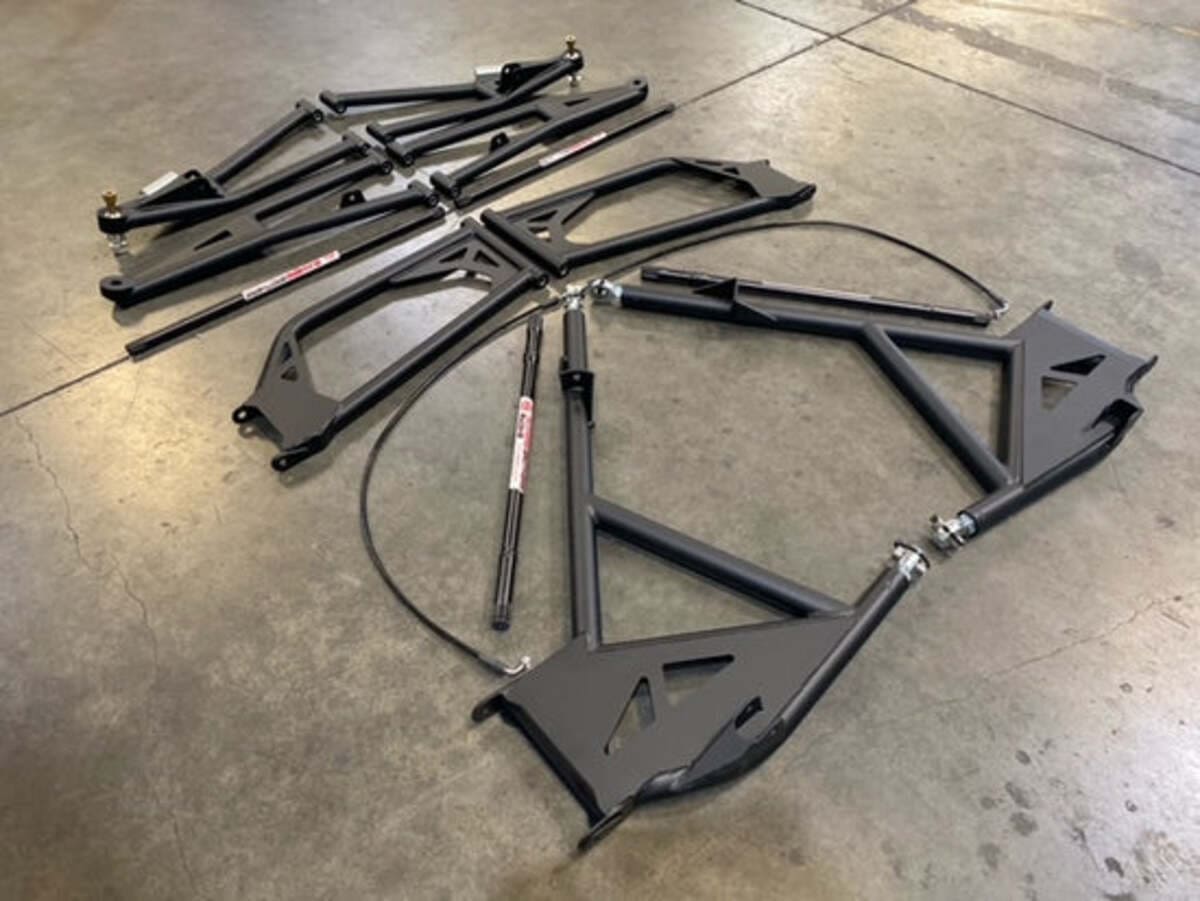

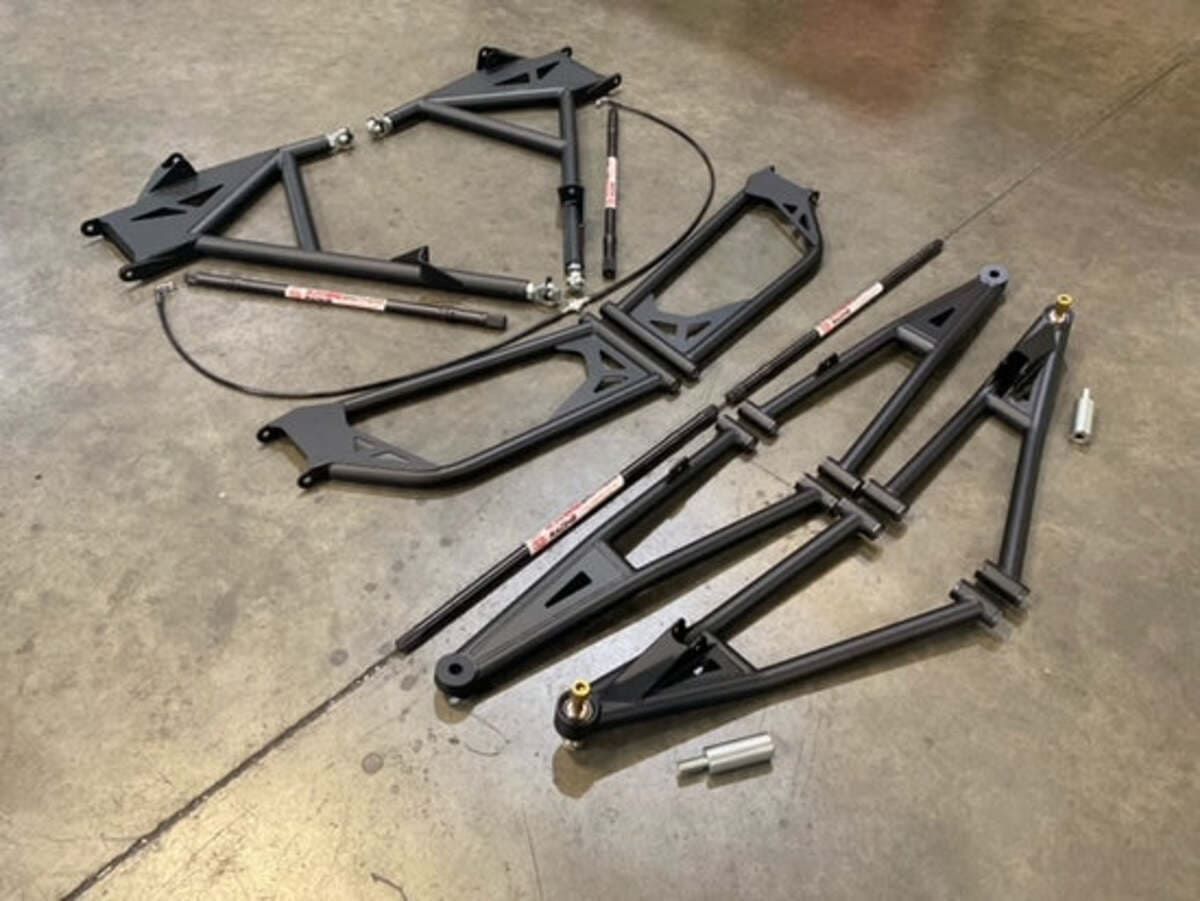

Includes:

• Front Upper Arms

• Front Lower Arms

• Rear Upper Arms

• Rear Lower Arms

• Tie Rod Extensions

• Extended Front Brake Lines (OEM rear Lines Are Reused)

• Durable Satin Black Powdercoat Finish (Raw Kits Can Be Special Ordered But Will Have Varied Lead Times)

Specifications:

• Track Width: Extended 3.5″ On Each Side For A Total Of +7″ Overall

• Wheel Base: No Increase To Maintain Optimal Handling With OEM Shocks

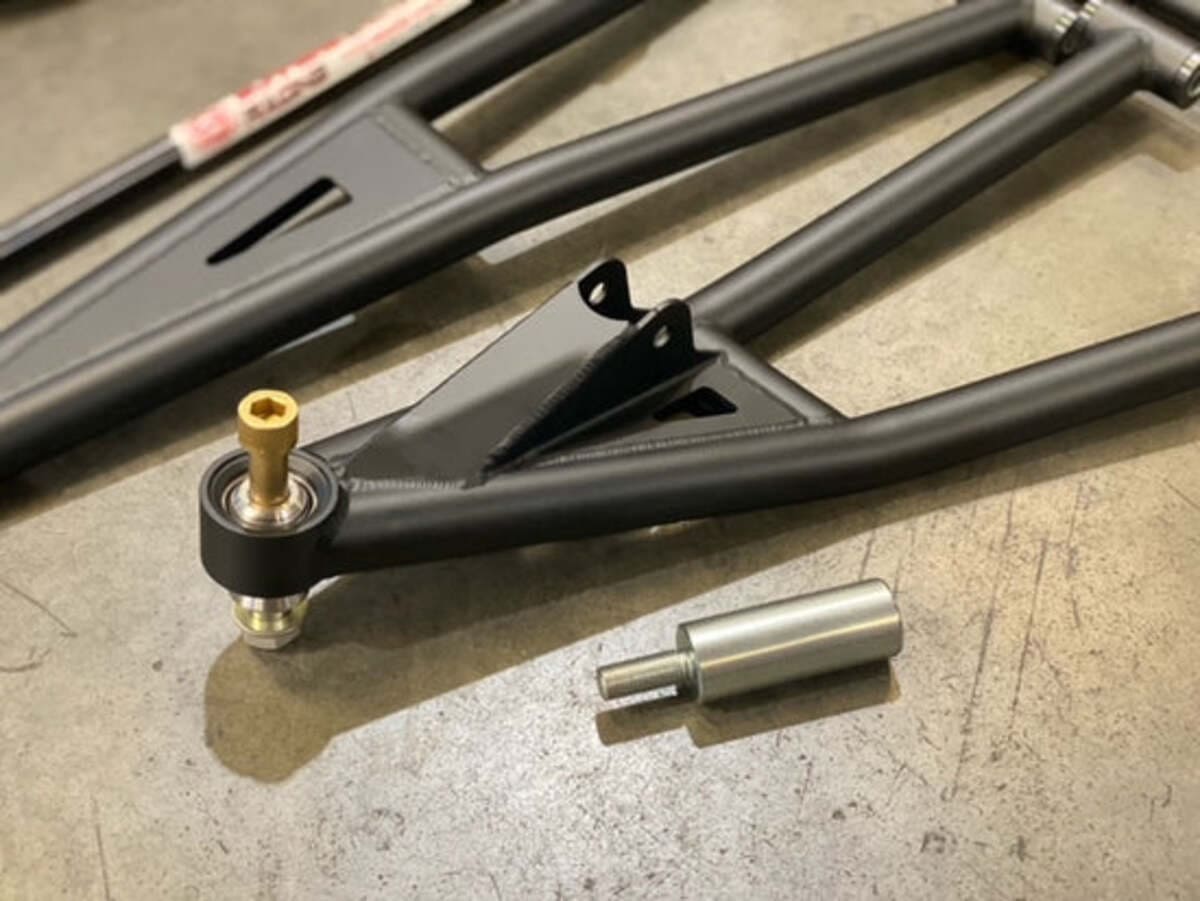

• Front Upper Arms Use FK Uniballs & 17-4 Stainless Misalignments for Increased Durability

• Delrin Bushings With Zinc Coated Inner Sleeves

• 3/4″ FK Heims In The Rear Lower Frame Mounts For Adjustability And Greater Range Of Motion

Requires:

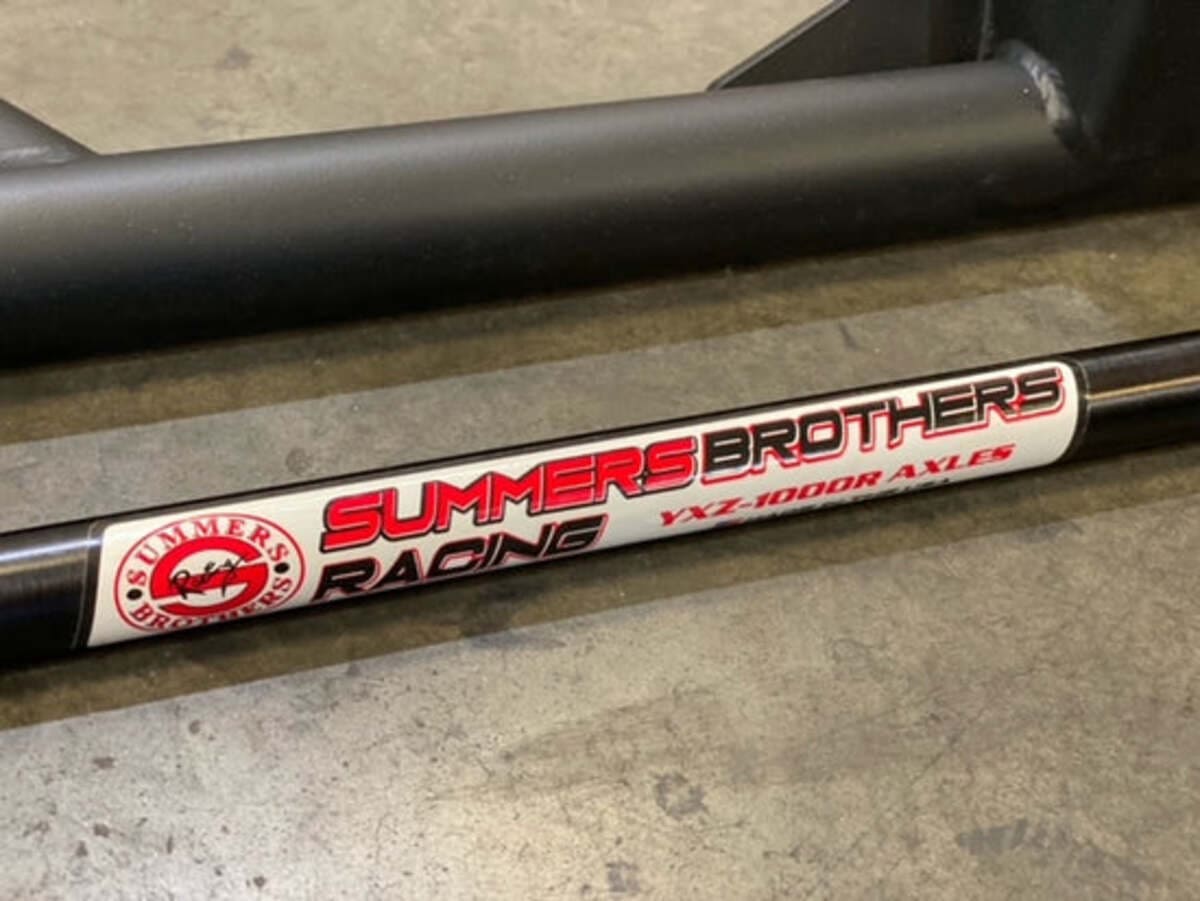

• +3.5″ Axle Shafts – Summers Brothers Extended Axle Shafts Can Be Purchased With This Kit In The Drop Down Menu Or Axles Can Be Customer Provided


Notes:

• This System Was Designed Around OEM Shocks, You Do Not Need To Purchase Aftermarket Shocks To Install This System

• If Summers Brothers Axles Are Purchased You Will Have To Reuse Your OEM Inner & Outer CV Assemblies
