LSK Polaris RZR Pro XP & Turbo R 4 Seat Radius Cage

LSK Polaris RZR Pro XP & Turbo R 4 Seat Radius Cage

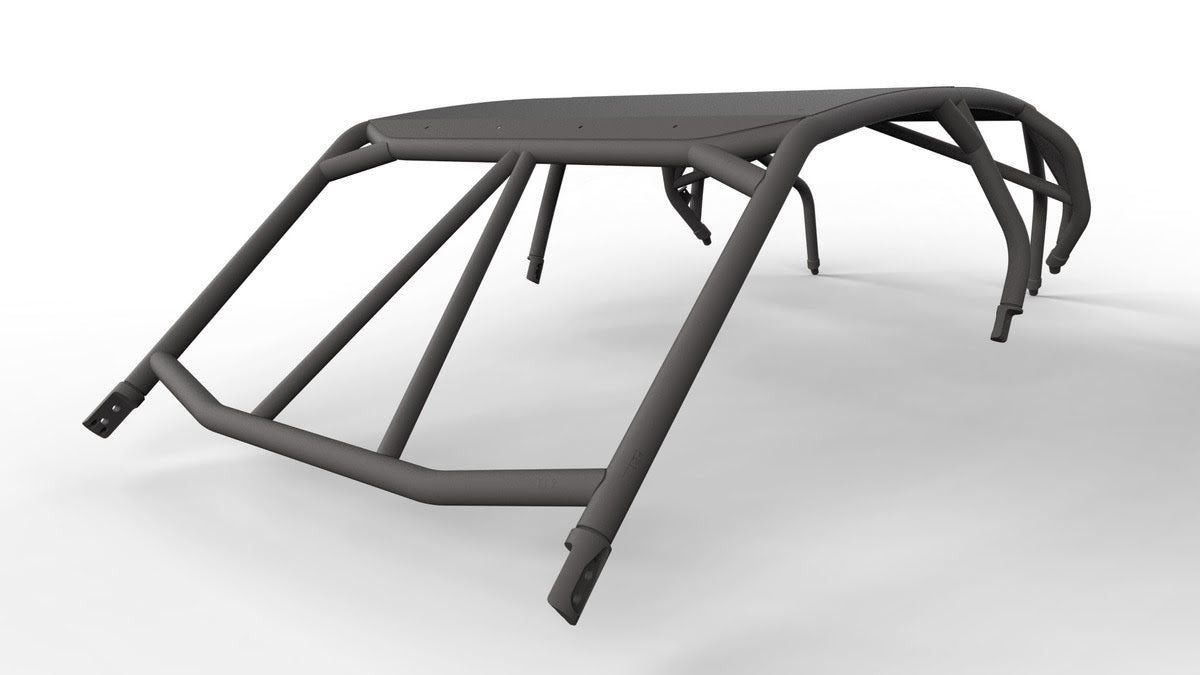

Introducing The Weld It Yourself Cage Kit For The RZR PRO XP 4 Seater! This Cage Is Built With .120 Wall DOM Main Tubes And .095″ DOM Support Tubing That Can Be Either MIG or TIG Welded Without The Use Of A Specialized Fixture – Just Install The Supplied Connector Plates To The Stock Cage Locations And Piece Together The Cage On The Vehicle.

Includes:

• 30 Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component

• 1.75″ OD .120 Wall DOM Tubing For Main Structure

• 1.75″ OD & 1.50″ OD .095″ DOM For All Other Support Tubes

• Cage Bungs & Hardware To Mount In Factory Cage Mounting Locations


Dimensions: 74 × 25 × 10 in

Requires:

• Welding – This Kit Can Be Welded Together Once Configured On The Vehicle


Upgrades:

• Aluminum Roof – .06 Thick 2 Piece Roof W/ Small Visor Bend And Bead Rolled Joint – Complete With Weld On Tabs And 1/4″ Grade 8 Hardware

• KC Hilites Polaris RZR Turbo R Pro XP Bar Kit – 39″ PROs Gravity LED – 6 – Light – Light Bar system – 120w Combo Beam Kc Light Bar Tabs May Not Fit Lsk Cage. Custom Light Bar Tabs May Be Neccessary.

Notes:

• This Cage Sits 17.80″ (45.21cm) Tall From Center Of B Pillar Through Bolt To Highest Point On Cage

• Must Use A Floor Jack Under Center Of Vehicle During Installation To “level Out” The Frame Rails – Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult


Installation:
