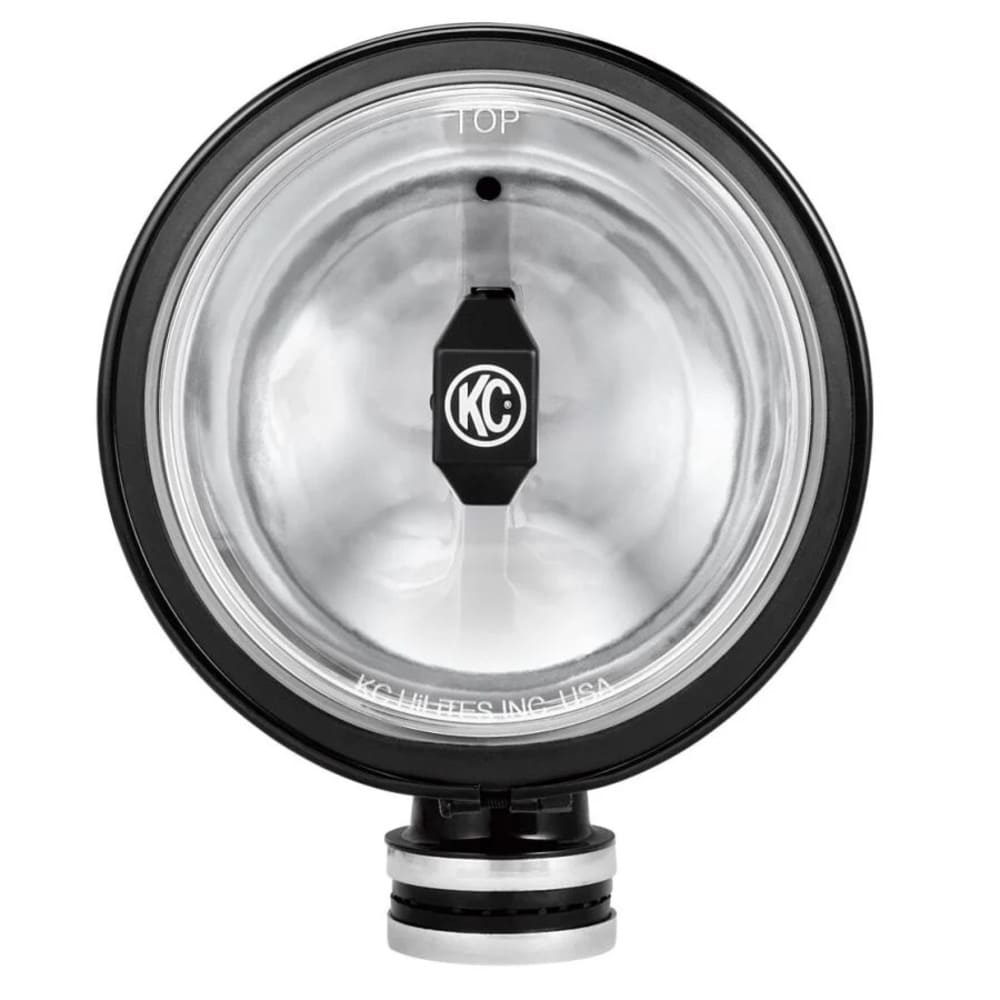

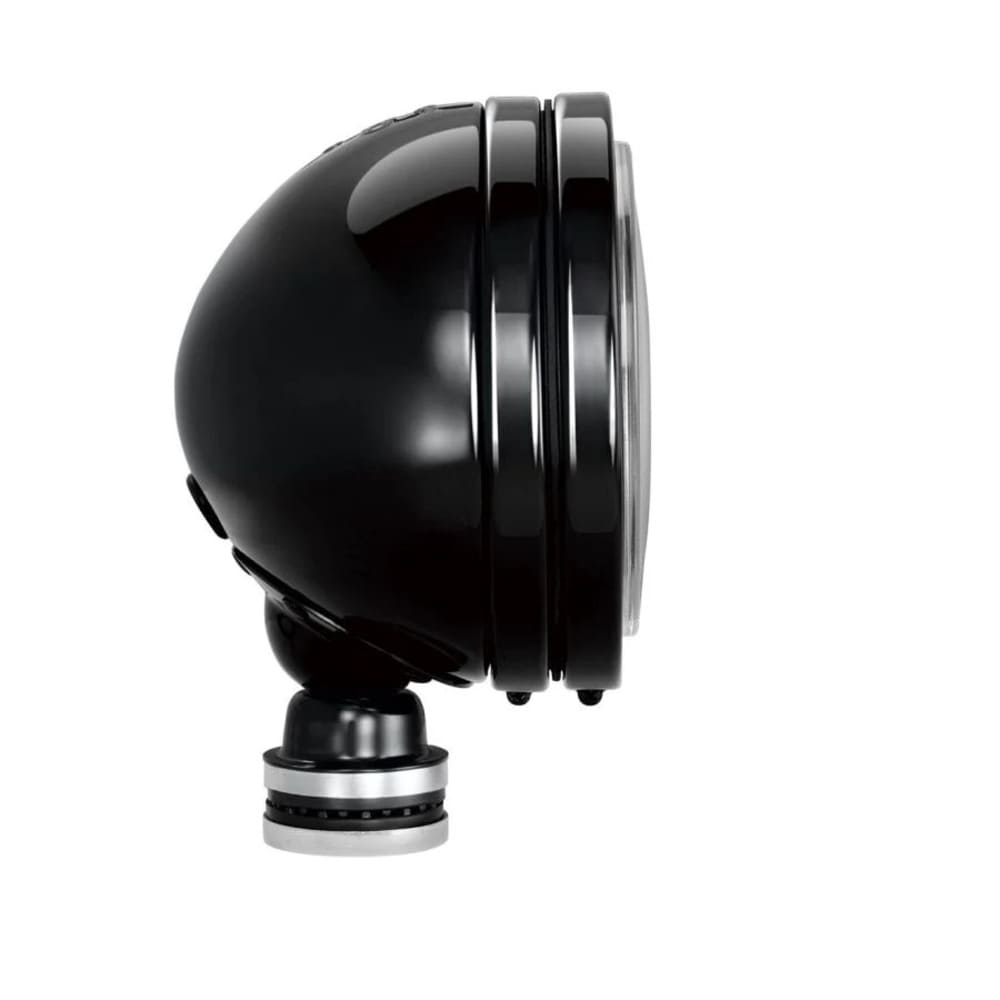

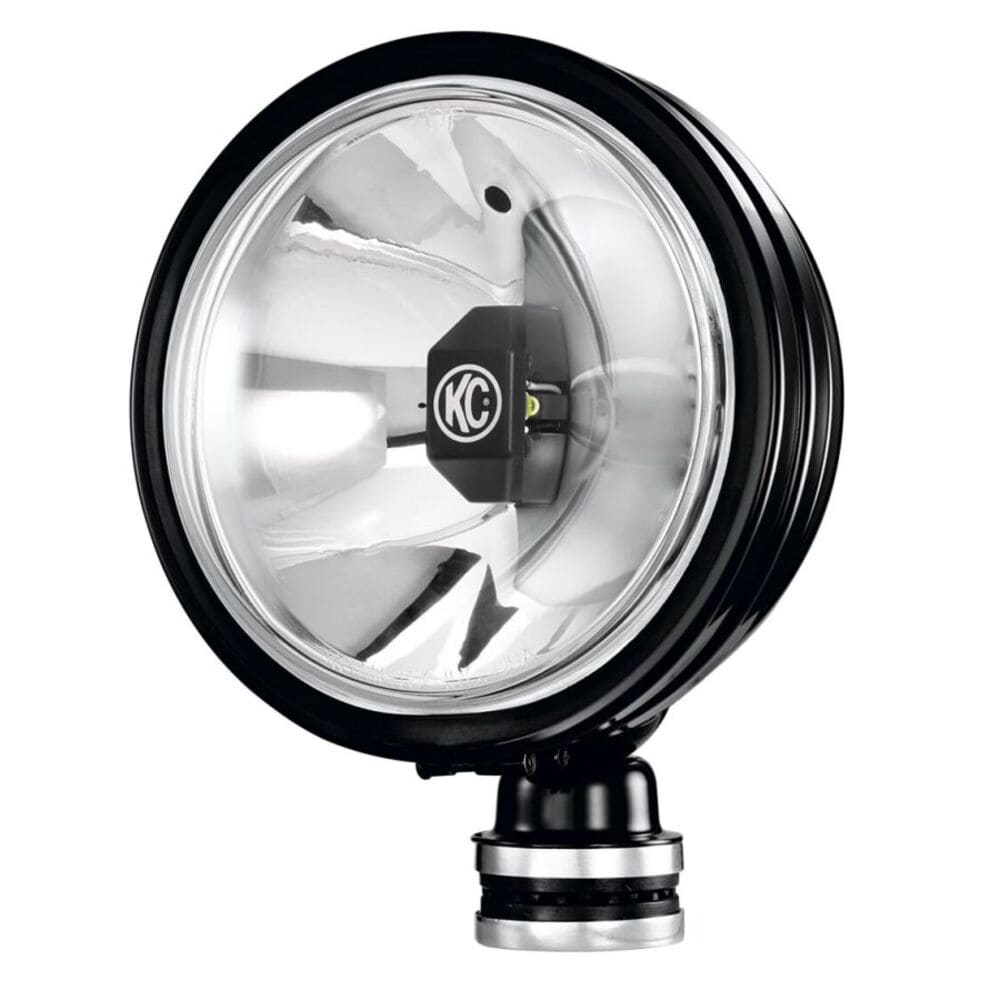

KC HiLiTES 6" Daylighter with Gravity LED G6 Pair Pack System
KC's 6" Gravity LED Daylighter feature 20w LED bulbs in a SAE legal driving pattern. Black steel housing and polycarbonate lens with FLEXible base for easy aiming. Pair includes complete wiring harness, switches, and ABS stone guards.
Features:
- Race Proven Strength & Durability: The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.
- Adjustable Mounting for Accuracy and Precision: Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency.
- Gravity GRD Extreme Output and Efficiency: Gravity Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.
- Available Beam Pattern and Advantages: Driving Beam - SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights.
- 2 x 20W Gravity® LED G6 optical inserts
- Black Powder Coated Steel housing
- Hard Coated Polycarbonate Lens
- Driving Beam Pattern
Specifications:
Per Light:
- LED Source: CREE XPL HD LED
- Amp Draw: 1.63A
- Voltage: 9V-32V
| Weight | 8.000000 |
| Compliance DOT/SAE/ECE | SAE J581, ECE R112 (Driving) |
| Wattage Per Light | 20W |
| Total Wattage | 40W |
| Amp Draw Per Light | 3.3 a |
| Voltage | 9V-32V |
| Lumens Per Light | 2,300 lm |
| Lux Per Light | 1,310 lx |
| Candela Per Light | 131,000 cd |
| Light Temp | 5000 K |
| Lens Color | Clear |
| LED Color | White |
| Beam Pattern | Driving |
| Beam Distance | 724 m |
| Light Technology | LED |
| Mount Location | A-Pillar / Ditch, Bumper, Overhead, Rear / Back-up |
| Size of Products | 6" |
| Material | Stainless Steel |
| Product Finish | Black |
| Included Components | 2 x Gravity LED™ Daylighter(Black Steel) SAE/ECE Driving Beam Light, Wiring Harness with Weatherproof Connectors, Illuminated LED Light Switch, 2 x 6" Protective KC Daylighter light Guards, Mounting Hardware |
| Color | Black |
| Product Dimensions | W: 6.22 " x H: 8.42 " x D: 5.38 " |
| UPC | 084709006532 |
| IP Rating | IP67 |

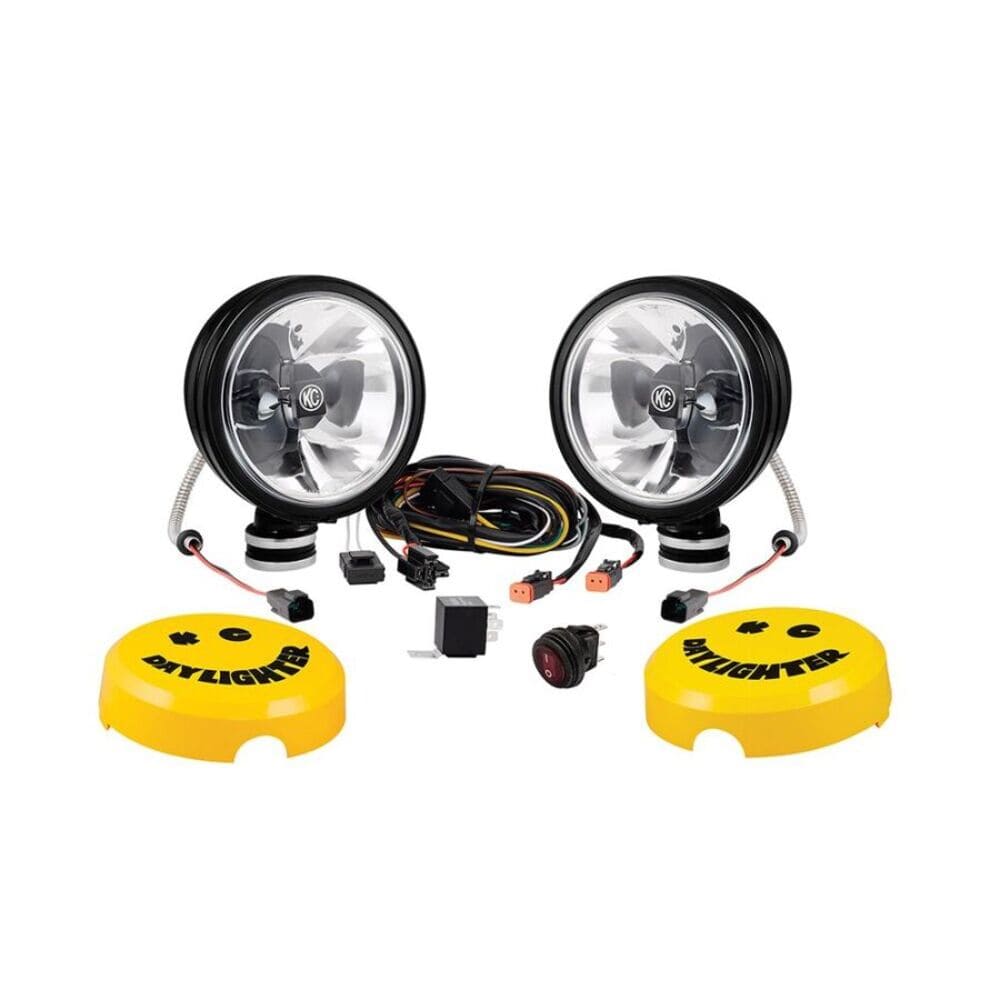

Kit Includes:
- 20W 6" Gravity® LED Daylighter lights
- Deluxe Wiring Harness w/ 2-Pin weatherproof connectors
- Protective KC Daylighter light Guards
- 30A Illuminated Switch w/ Switch Panel
Installation Instructions:
