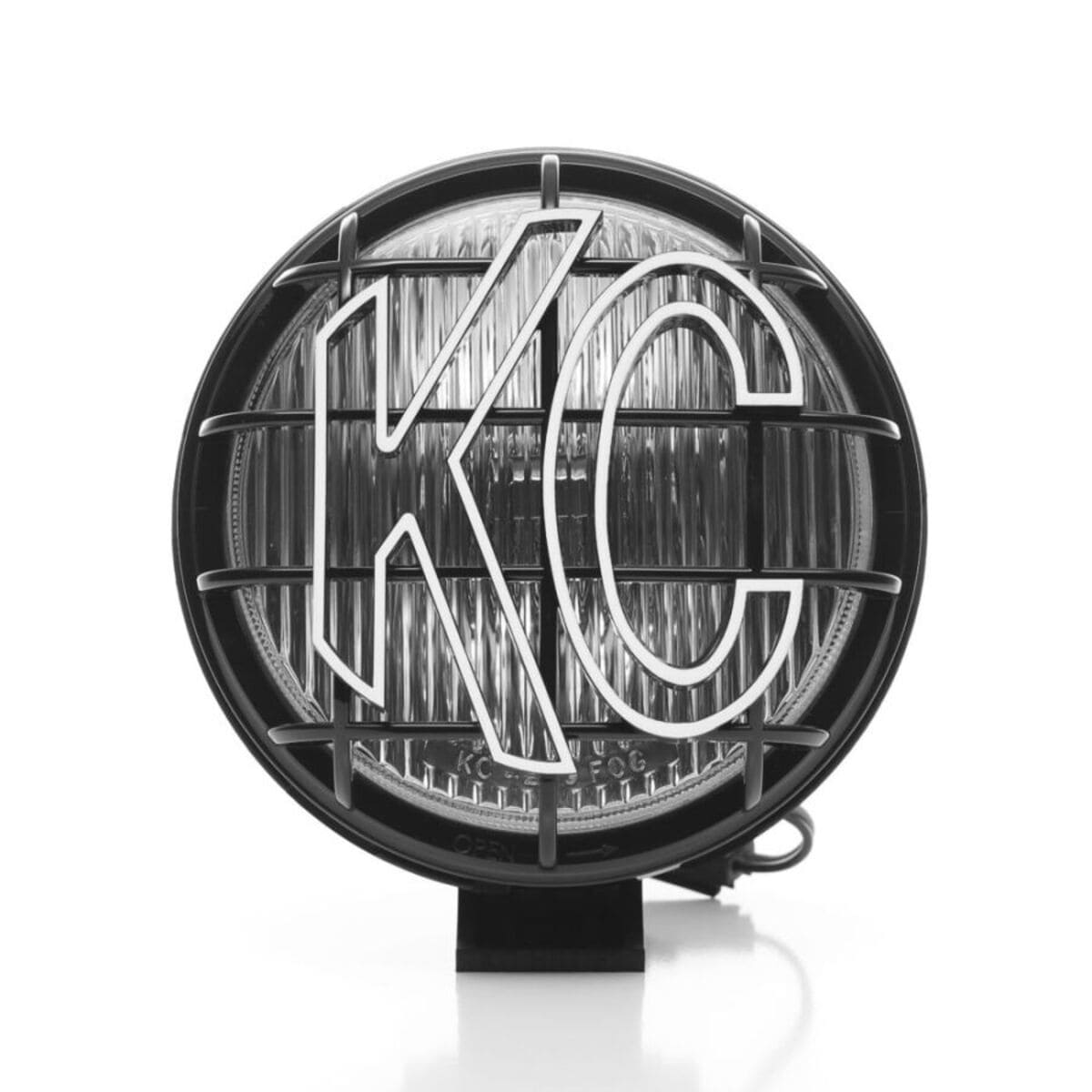

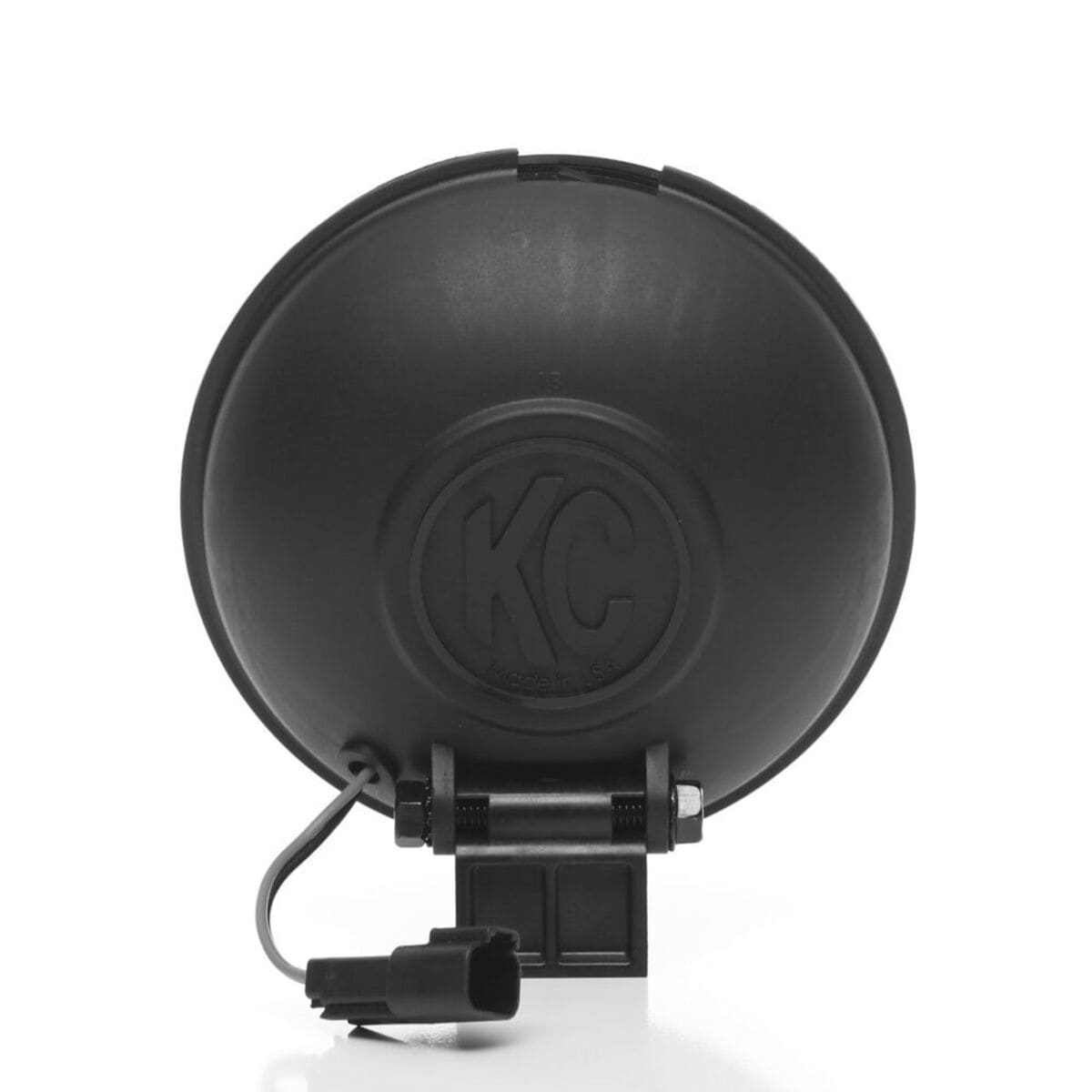

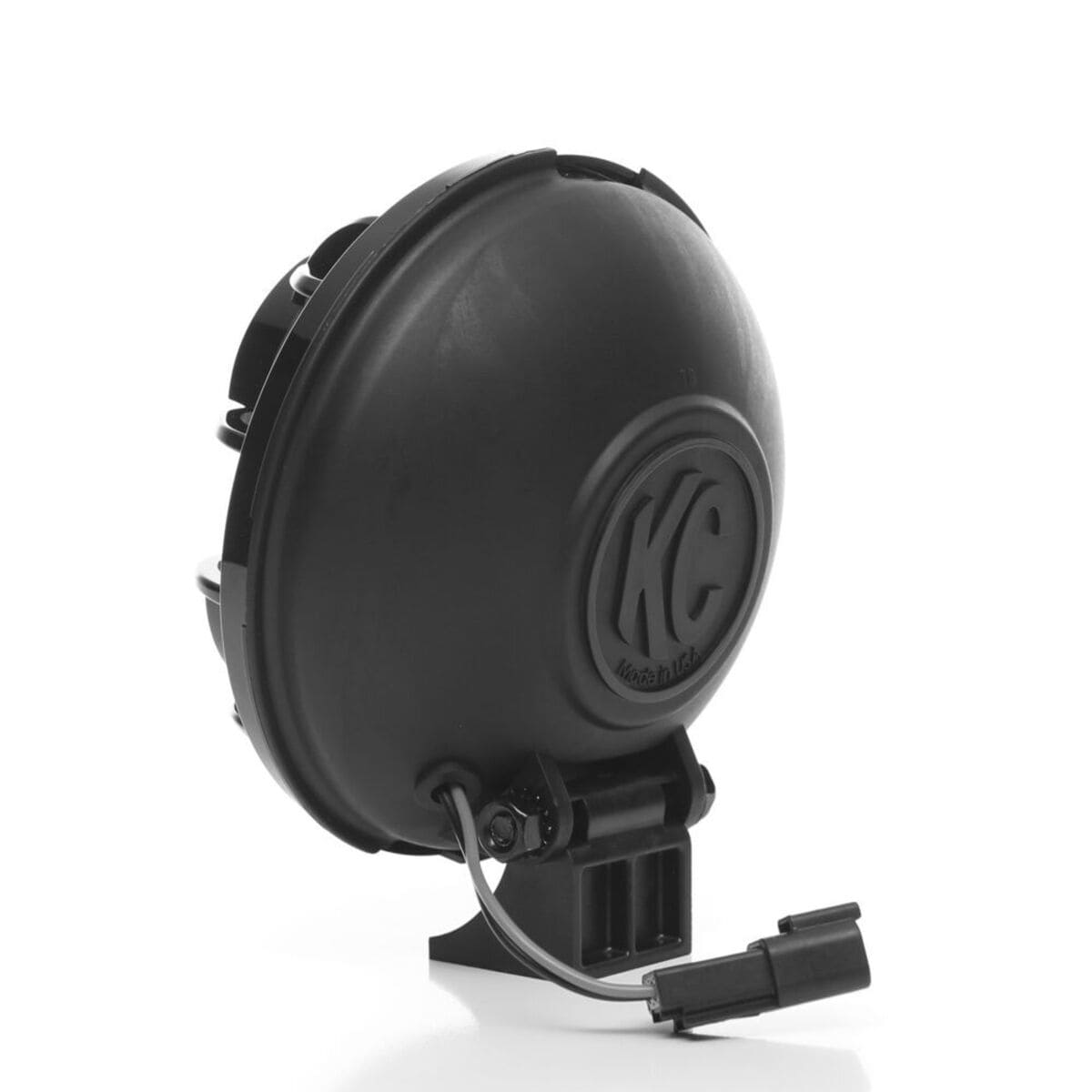

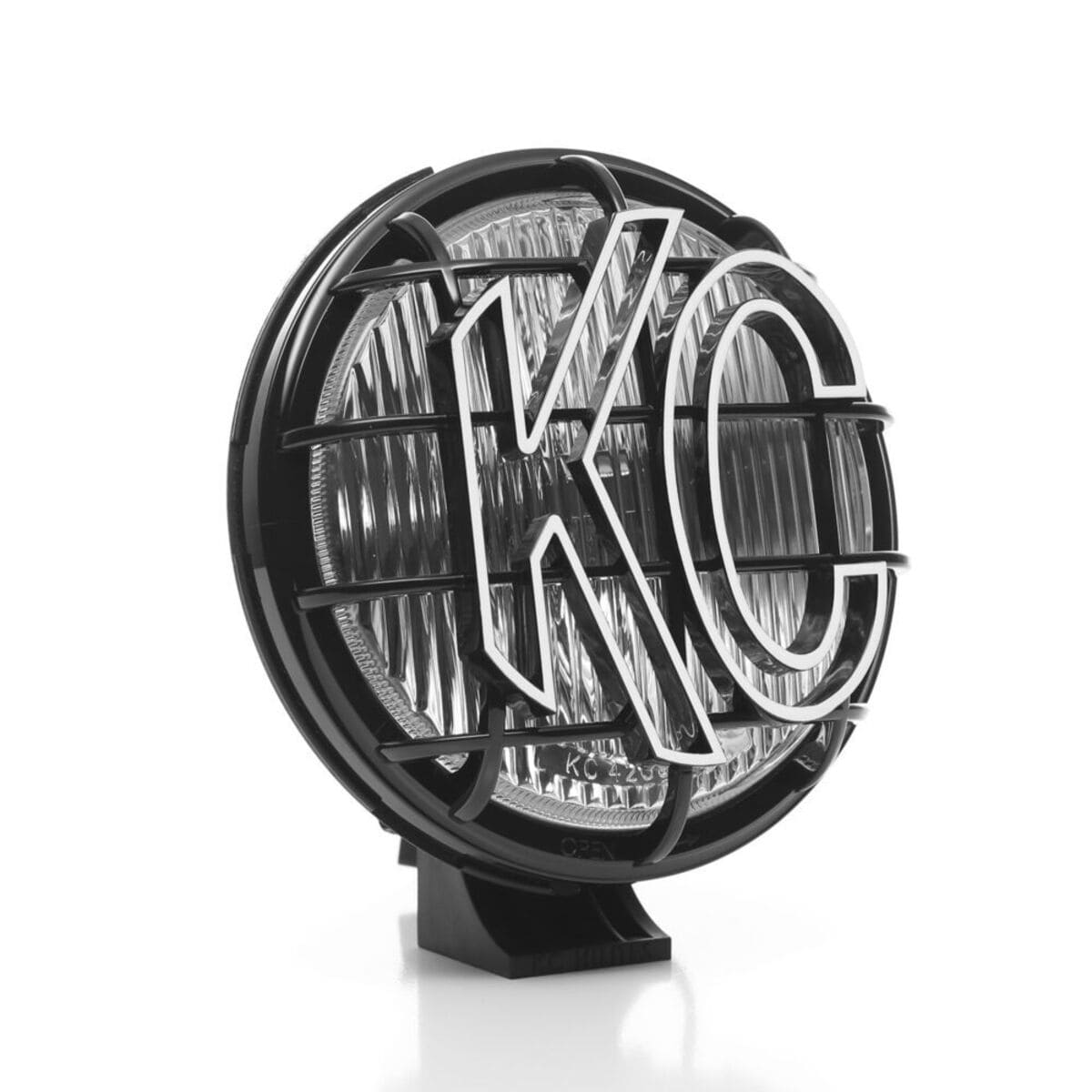

KC HiLiTES 6" Apollo Pro Halogen Pack System - Pair
KC's 6" Apollo Halogen use 100W Halogen bulbs available in a spot beam pattern, slim black polymax housing and glass lens, with built in protective stone guards. System includes complete pre-terminated relay wiring harness.
Advanced Reflector Optics: 6" Apollo Pro Halogen lights deliver 1,962 lx 10m of light output with a beam distance of 886 meters. The Apollo Pro's optical glass lens, computer designed polished optical reflectors and powerful 100W Halogen bulbs combine to produce super bright light output. Not only is there more range and power, but also improved clarity.
Available Beam Pattern and Advantages: Different beam patterns offer advantages depending on your specific lighting needs. Spot Beam- Provides focused bright light for maximum forward distance and high-speed visibility.
Designed for Strength and Durability: The Apollo Pros were created for the most demanding off road terrains. Featuring an IP67 rated Polymax housing and built in stone guards, these lights are engineered to last and perform for years to come.
Features:
- 100W Halogen Bulb
- Slim Black Polymax Housing
- Computer Designed Polished Reflector Optics
- Durable Optical Quality Glass Lens
- Spot Beam Pattern
-
Raw Lumens: 2,452 lm
-
Lux 10 Meters: Spot- 1,962 lx
-
Candela (per light): Spot- 196,200 cd
- Beam Distance (Meters): Spot- 886m
Specifications:
| Weight | 4.000000 |
|---|---|
| Wattage Per Light | 100W |
| Total Wattage | 200W |
| Amp Draw Per Light | 16.67 a |
| Voltage | 9V-32V |
| Lumens Per Light | 2,452 lm |
| Lux Per Light | 1,962 lx |
| Candela Per Light | 196,200 cd |
| Light Temp | 4000 K |
| Lens Color | Clear |
| LED Color | White |
| Beam Pattern | Spot |
| Beam Distance | 886 m |
| Light Technology | Halogen |

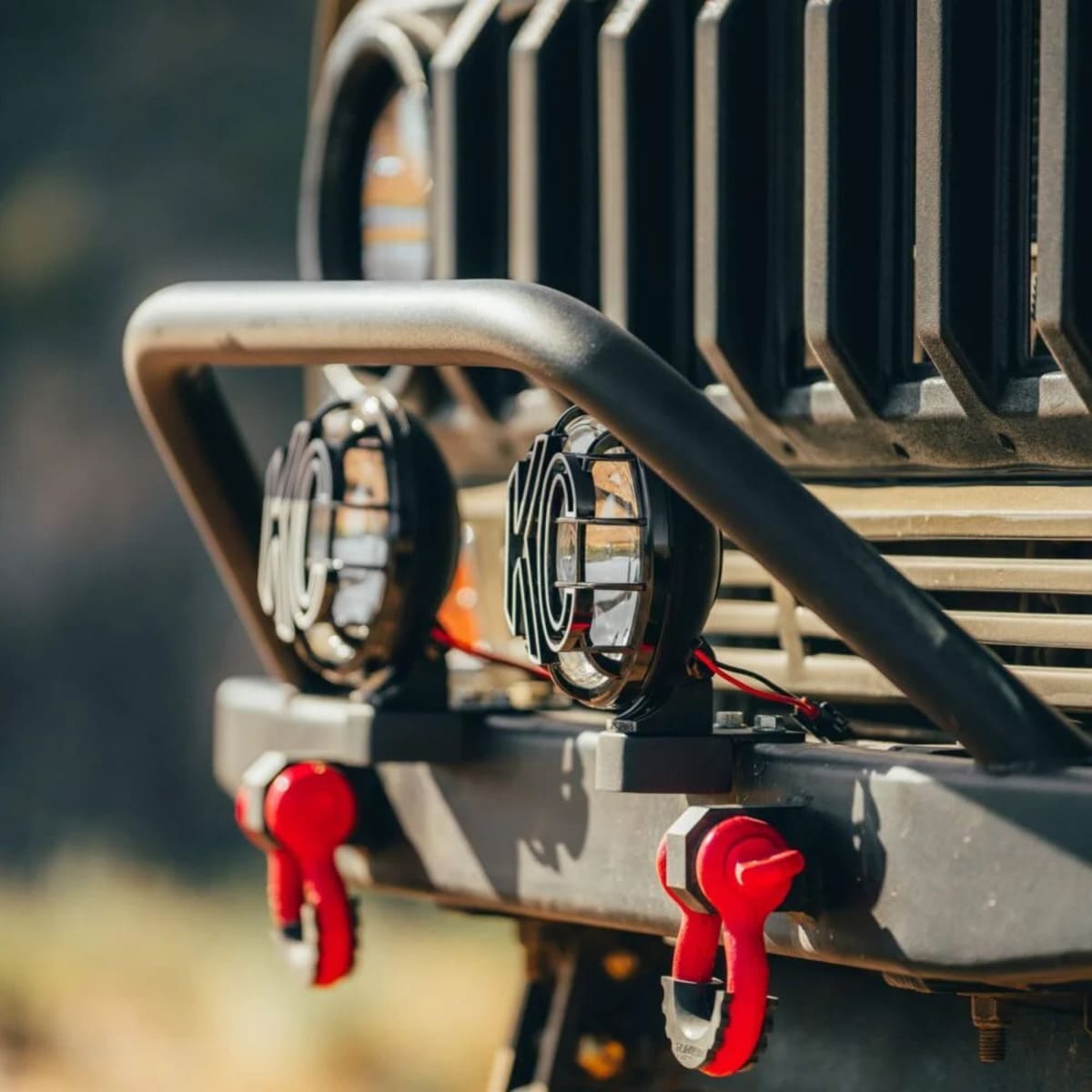

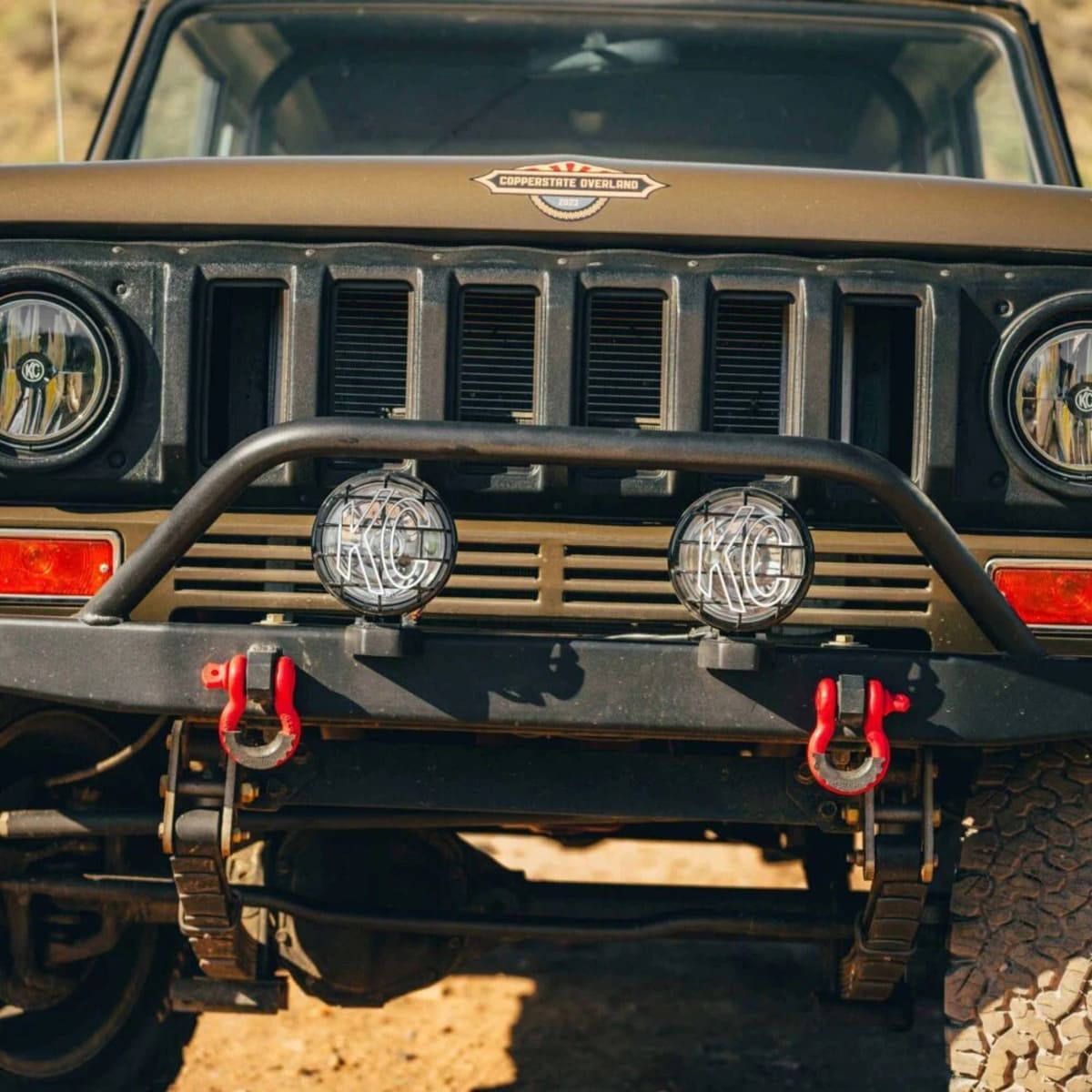

| Mount Location | A-Pillar / Ditch, Bumper, Overhead |
| Size of Products | 6" |
| Material | ABS Plastic |
| Product Finish | Black |
| Included Components | 2 x 100W 6" Apollo Pro Halogen Spot Beam Light, Deluxe Wiring Harness with DT Weatherproof Connectors, Illuminated LED Light Switch, 2 x Integrated Protective Stone Guard |
| Color | Black |
| Product Dimensions | W: 6 " x H: 6.75 " x D: 3 " |
| UPC | 084709091507 |
| IP Rating | IP67 |
| Wattage | 100W per light |
| Amp Draw | 8.3A |
| Voltage | 9V-32V |
| IP Rating | IP67 |
| Product Dimensions | W - 6" x H - 6.75" x D - 3" |

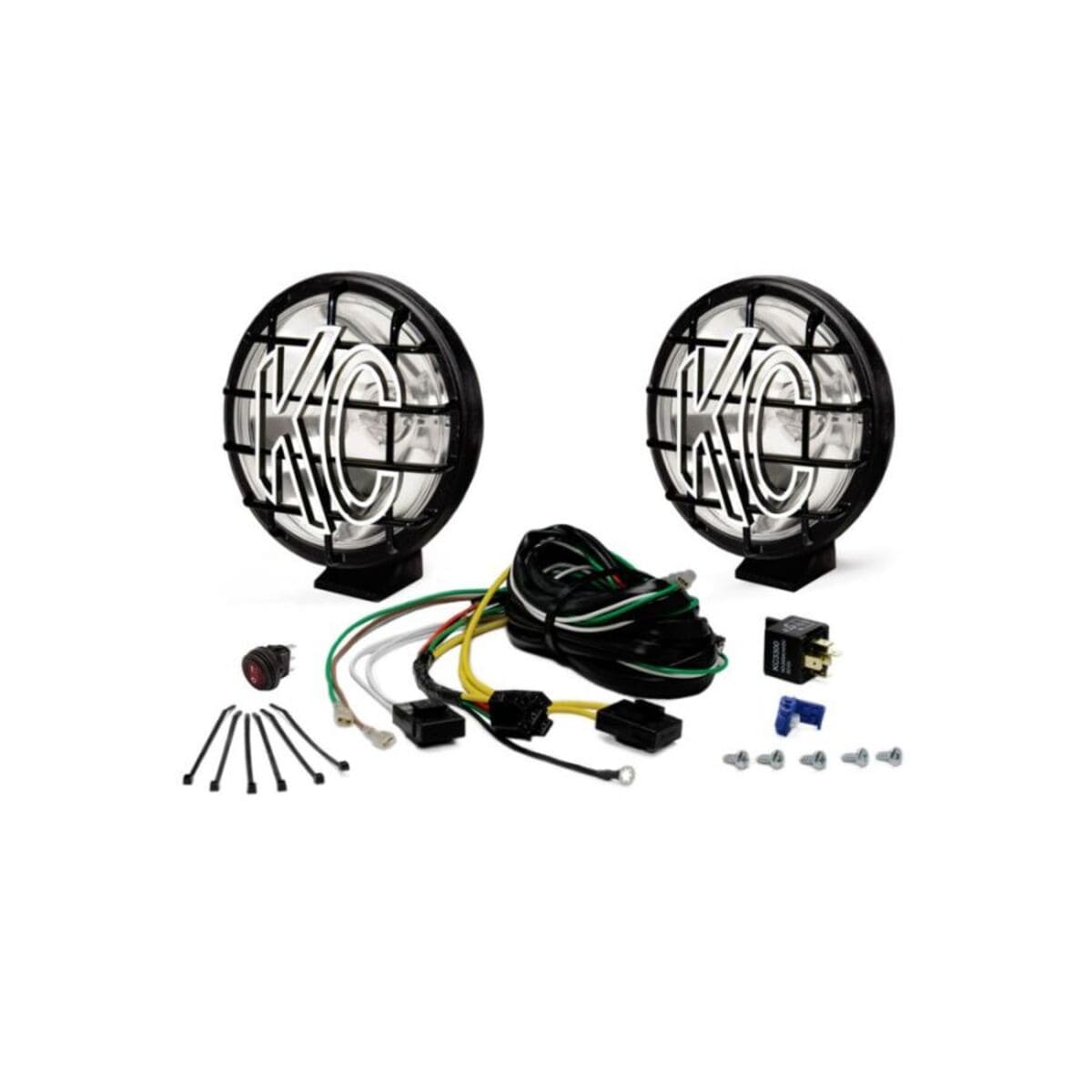

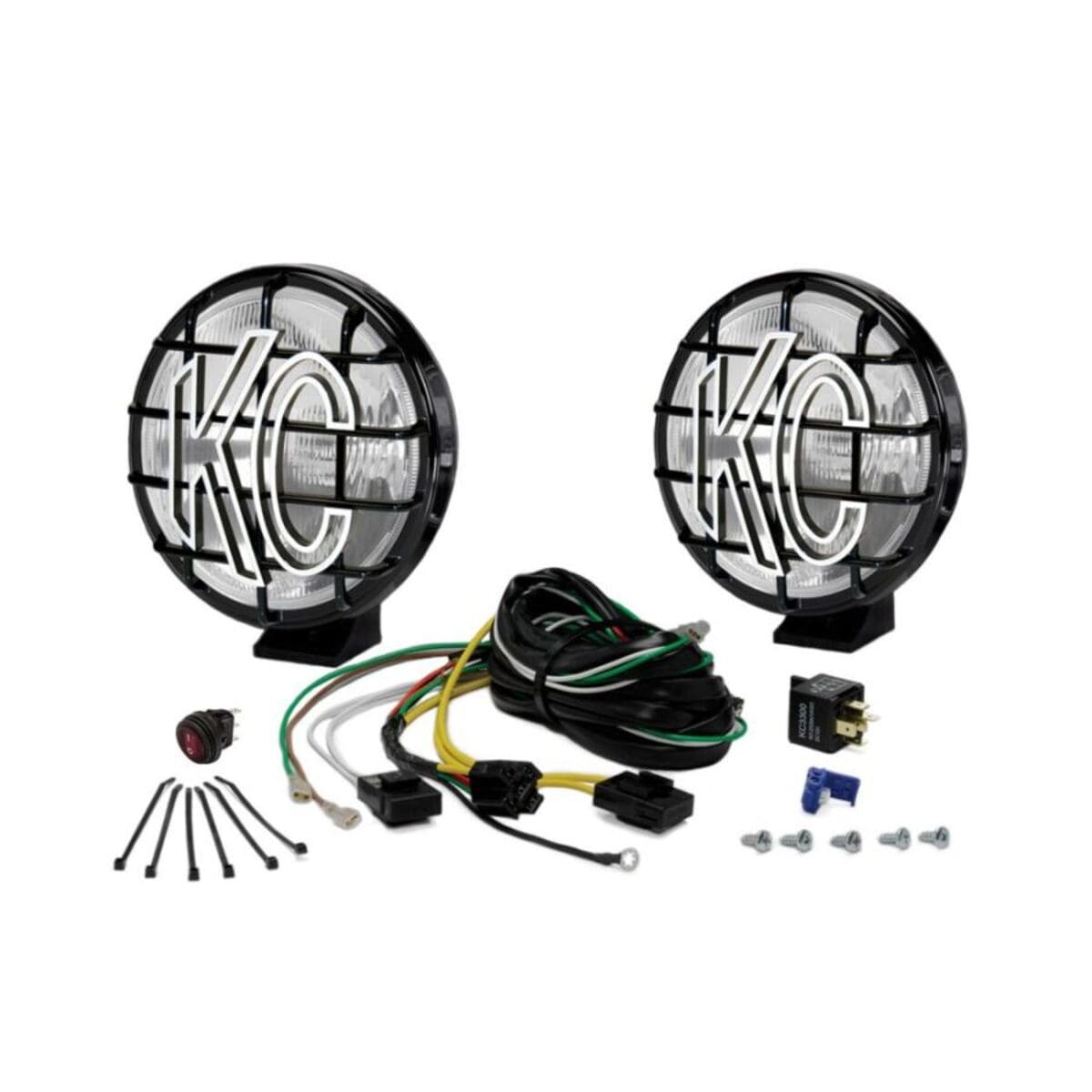

Kit Includes:
- (2) 100W 6" Apollo Pro Halogen lights
- Deluxe Wiring Harness with 2-Pin weatherproof connectors
- 30 Amp Illuminated Switch w/ Switch Panel
- (2) Built in Stone Guard/Bezels
