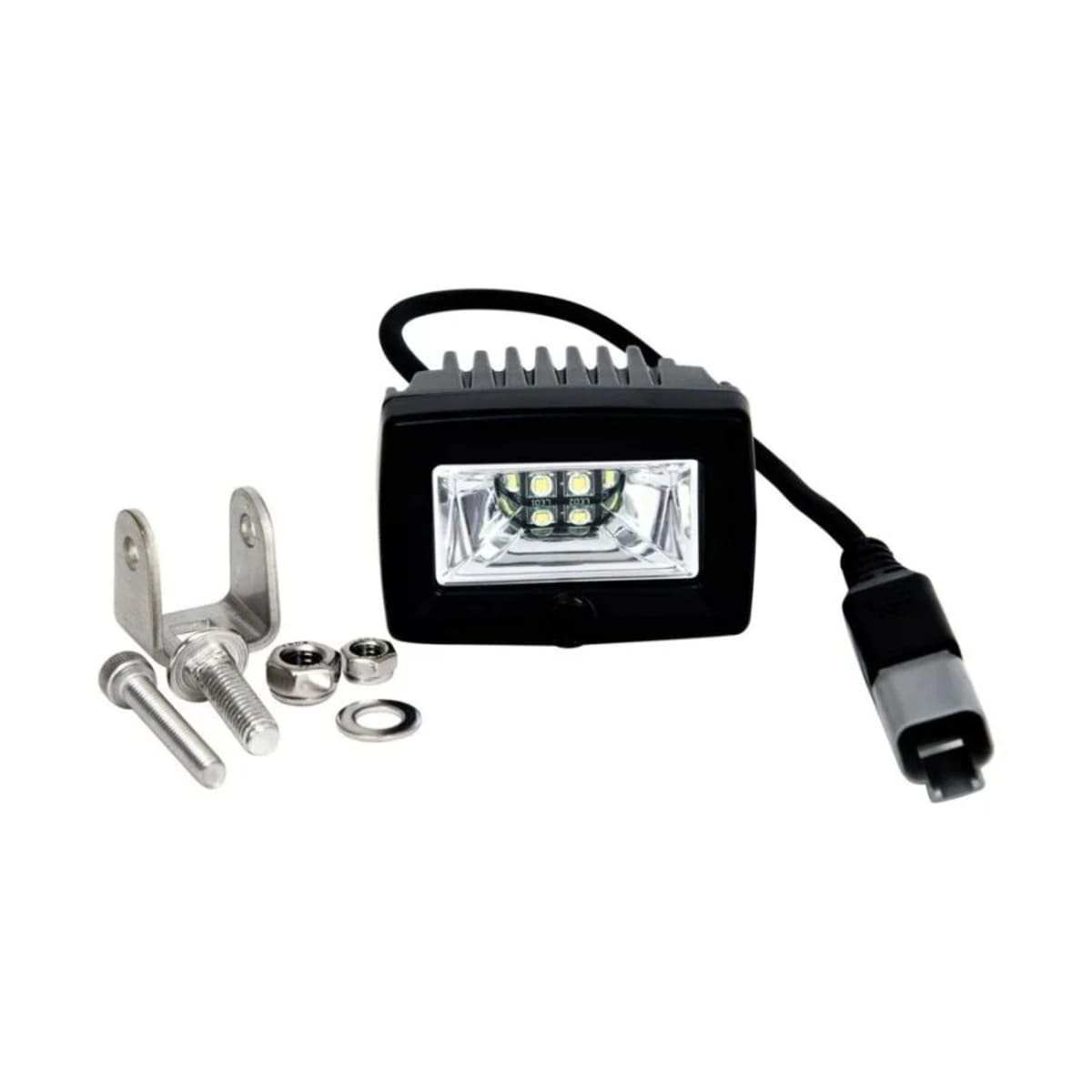

KC HiLiTES 20W Flood Beam 2" C-Series C2 LED Single Backup Light

KC HiLiTES 20W Flood Beam 2" C-Series C2 LED Single Backup Light



KC's C2 Backup light uses an ultra-wide 120-degree Flood Beam Pattern to provide powerful peripheral illumination around your vehicle, improving night time visibility when reversing.

Optical Performance and Led Efficiency: KC's C2 utilizes ultra-wide 120-degree flood reflector optics to provide smooth and evenly distributed light across a horizontal field of vision. This light is ideal for illuminating immediate areas as a work or flood light, and also as an effective reverse backup light for all vehicle types.

Durable Construction for Reliable Light Performance: Constructed from a lightweight military-grade (US MIL-810-STD) IP67 rated sealed Aluminum Die-Cast Housing with shatterproof GE Lexan lens for an impenetrable, waterproof housing. The C2 flood light was built to last, utilizing advanced Dual Heat-Sink design for maximum heat dissipation to ensure optimum light performance for up to 50,000 hours.



Features:

• 20W 2" C2 LED Area Light

• Durable Diecast 6063 Aluminum Housing

• UV Resistant Black Powder Coated Housing

• Dual Oversized Heat Sink Design for Cooler, Brighter and Longer Lasting LED Performance

• Gore Military Grade Breather Membrane to prevent condensation and entry of dust/contaminants

• Optically Clear and Shatter Proof Lexan Lens

• Ideal for Illuminating Immediate Areas as a Work or Effective Backup Reverse light

• 120° Area Flood Beam Pattern For Evenly Distributed Lighting
• RAW Lumens 2,200 lm

• LUX @ 10 meters 27 lx

• Candela 2,700 cd

• Beam Distance (Meters) 104m



Specifications:

Weight	1.250000
Wattage Per Light	20W
Total Wattage	20W
Amp Draw Per Light	1.67 a
Total Amp Draw	1.67 a
Voltage	9V-36V
Lumens Per Light	2,200 lm
Total Lumens	2,200 lm
Lux Per Light	27 lx
Candela Per Light	2,700 cd
Total Candela	2,700 cd
Light Temp	6000 K
Lens Color	Clear
LED Color	White
Beam Pattern	Flood
Beam Distance	104 m
Light Technology	LED
Mount Location	A-Pillar / Ditch, Bumper, Overhead
Size of Products	2"
Material	Aluminum Alloy
Product Finish	Black
Included Components	2" C2 LED C-Series LED Scene Light, Z-Bracket
Color	Black
Product Dimensions	W: 2.85 " x H: 2.21 " x D: 2.17 "
UPC	084709015190
IP Rating	IP67
Wattage	20W
LED Source	CREE XMK
LED Color	6000K
Amp Draw	1.6A
Voltage	9V-36V
IP Rating: IP67 -Product Dimensions	W - 2.85" x H - 2.21/1.91" x D - 2.17"



Note:

• Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version



Installation Instructions:

• Installation Guide - KC 63091 Wiring Harness
