High Lifter Polaris Ranger 900 60% Dual Idler Version 6'' Portal Gear Lift

High Lifter Polaris Ranger 900 60% Dual Idler Version 6'' Portal Gear Lift



Forged Gear Boxes

• Strongest boxes on the market because forging produces a tougher piece of metal

• Forging is stronger than both cast and billet aluminum

• Competitors use cast aluminum and billet aluminum boxes

• These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting

• Customers asked for box venting and we give you the option

• Our box design offers a plug for venting with an optional easy to install kit that will be available soon

• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

• High density Kevlar fiber gaskets plus no additional sealant is needed

• Gasket material is creep resistant plus oil and coolant resistant

Seals

• Two oil seals on the spindle shaft for 100% more sealing area

• Dual seals prevent water intrusion and oil leaks

• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

Backing Plate

• These are the strongest backing plates on the market

• 5/16" steel plate with Bent flanges for strength and durability

• Welded gusset brackets and designed to factory off-set

• Works with all control arms that are built to factory hub specifications

13" Rotor

• Precision ground stainless steel rotors (this is a big deal for brake performance)

• Access holes for ease of assembly and disassembly

• Slotted rotor allows for heat dissipation and cooling

Gear Profile

• Alloy steel heat treating process increases overall internal and external strength

• CNC precision ground machining ensures excellent fitment and increased strength

• Controlled gear lapping for ease of installation and a quieter performance




Features:

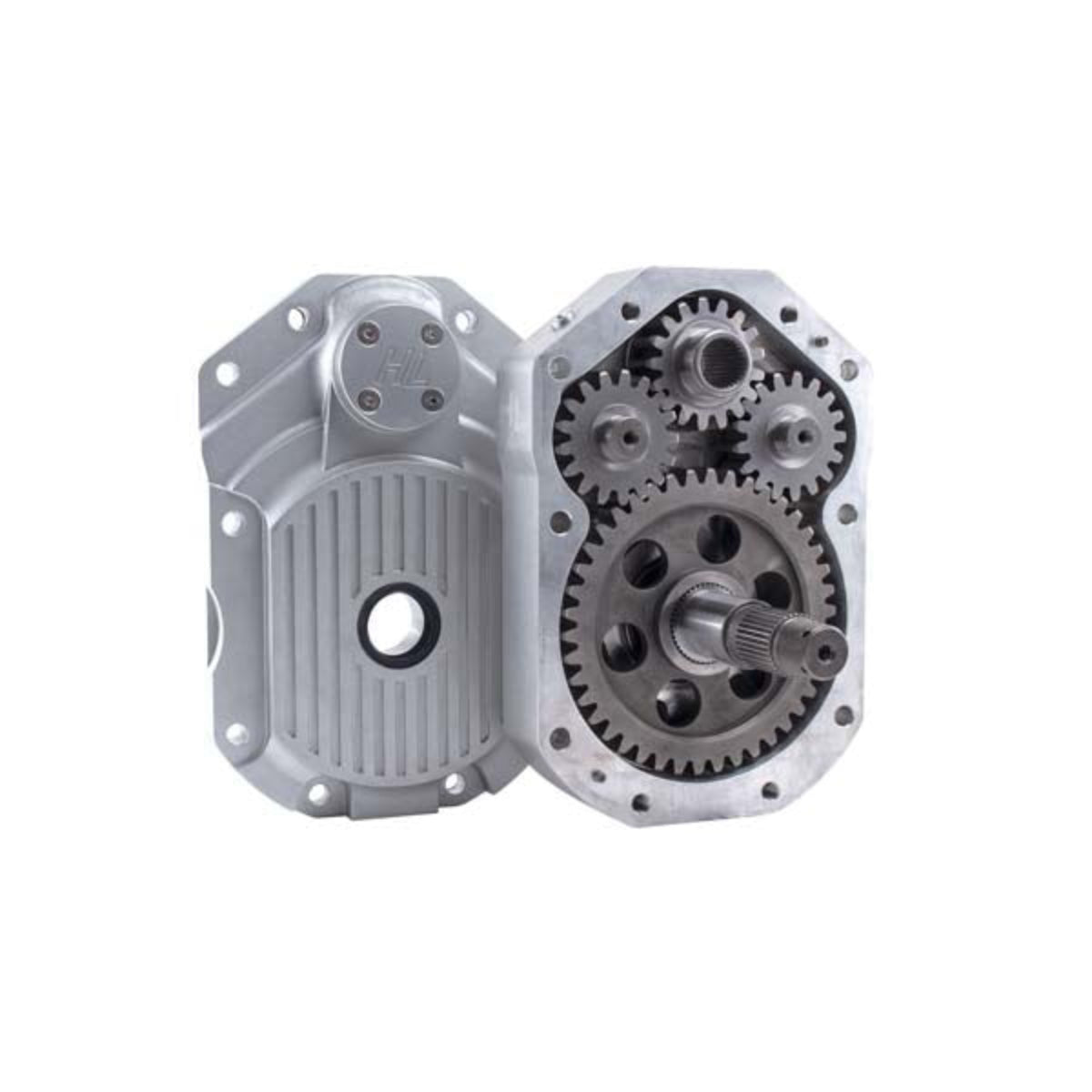

• High Lifter improved the portal design by adding a second idler gear in the gear box

• The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.

• You gain more reliable torque transfer

• If you run a 40" tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must

• Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…

• 60% Gearing extends brake life by needing brakes less often due to greatly improved engine braking

• Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don't have a need to run fast, a lower ratio performs better and give you the power you want!



Dimensions:

• Weight: 250.000000

• Length: 48.000000

• Width: 40.000000

• Height: 36.000000




Installation Instruction:



Note:

• High Lifter strongly recommends pairing this High Lifter Portal Gear Lift with a High Lifter Frame Stiffener Kit. Reinforce your frame to save yourself from a potentially expensive repair!



Fitment:

• 2019 Polaris Ranger Crew XP 900

• 2018 Polaris Ranger Crew XP 900

• 2018 Polaris Ranger Crew XP 1000 EPS

• 2018 Polaris Ranger Crew XP 1000 EPS Northstar

• 2018 Polaris Ranger Crew XP 1000 EPS High Lifter

• 2017 Polaris Ranger Crew XP 1000

• 2017 Polaris Ranger Crew XP 1000 EPS

• 2017 Polaris Ranger Crew XP 1000 EPS High Lifter

• 2017 Polaris Ranger Crew XP 900

• 2017 Polaris Ranger Crew XP 900 EPS

• 2017 Polaris Ranger Crew XP 1000 EPS HVAC

• 2016 Polaris Ranger Crew XP 900-5 EPS

• 2016 Polaris Ranger Crew XP 900-6 EPS

• 2015 Polaris Ranger XP 900 Crew

• 2015 Polaris Ranger XP 900 Crew EPS

• 2014 Polaris Ranger XP 900 Crew
