High Lifter Can-Am Maverick X3 Apexx 72" Radius Bar

High Lifter Can-Am Maverick X3 Apexx 72" Radius Bar

High Lifter improved the radius bar design even further with our APEXX Suspension Line. In addition to durable, adjustable heim joints, these radius bars are made with thicker material than stock. We’ve increased wall thickness by over 70% on the upper radius bar.

High Lifter Radius Bars can be differentiated from other aftermarket radius bars by the polyurethane bushings we use. They are firmer than rubber and should last the life of the vehicle. The enhanced performance helps keep the radius bar stable and aims to eliminate excess movement. By greatly reducing movement, the suspension is more efficient and responsive to the driver.

Installation and maintenance are made easy with adjustable length and can be serviced with readily available parts. The simple bolt-on kit features heim joints for easy camber adjustment. High Lifter’s Radius Bars will give you the strength and clearance needed for peace of mind when riding.

Upper Radius Bar Features:

• Crafted from extreme duty 1.5” x .188” DOM steel construction – up to 70% larger than many stock radius bars
• Massive replaceable 7/8” heim and 5/8” heim joints for camber adjustability without sacrificing strength
• Easy adjustability with straight bar design
• Polyurethane bushings to eliminate excess movement
• Simple bolt-on kit
• UV-resistant Powder Coating
• Step by step instructions complete with multi-images for a quick install
• Limited Lifetime Warranty (Excludes wearable items like bearings, cones, and heim joints)

Upper Radius Bars have “on the fly” adjustability! The straight bar design with massive 7/8” & 5/8” heim joints on either end allows for easy adjustability.

Middle & Lower Radius Bar Features:

• Kit includes both middle and lower radius bars
• Bars are arched that allows for 1.75” of additional ground clearance
• Crafted from extreme duty 1.5” x .188” DOM steel construction – up to 70% larger than many stock radius bars
• Larger extreme duty spherical bearings
• Massive replaceable 5/8” heim joints for camber and toe adjustability without sacrificing strength in both middle and lower radius bars
• Massive replaceable ¾” Teflon lined spherical bearings
• Added ground clearance over stock lower radius bar
• Polyurethane bushings to eliminate excess movement
• Simple bolt-on kit
• UV-resistant Powder Coating
• Step by step instructions complete with multi-images for a quick install
• Limited Lifetime Warranty (Excludes wearable items like bearings, cones, and heim joints)

Notes:

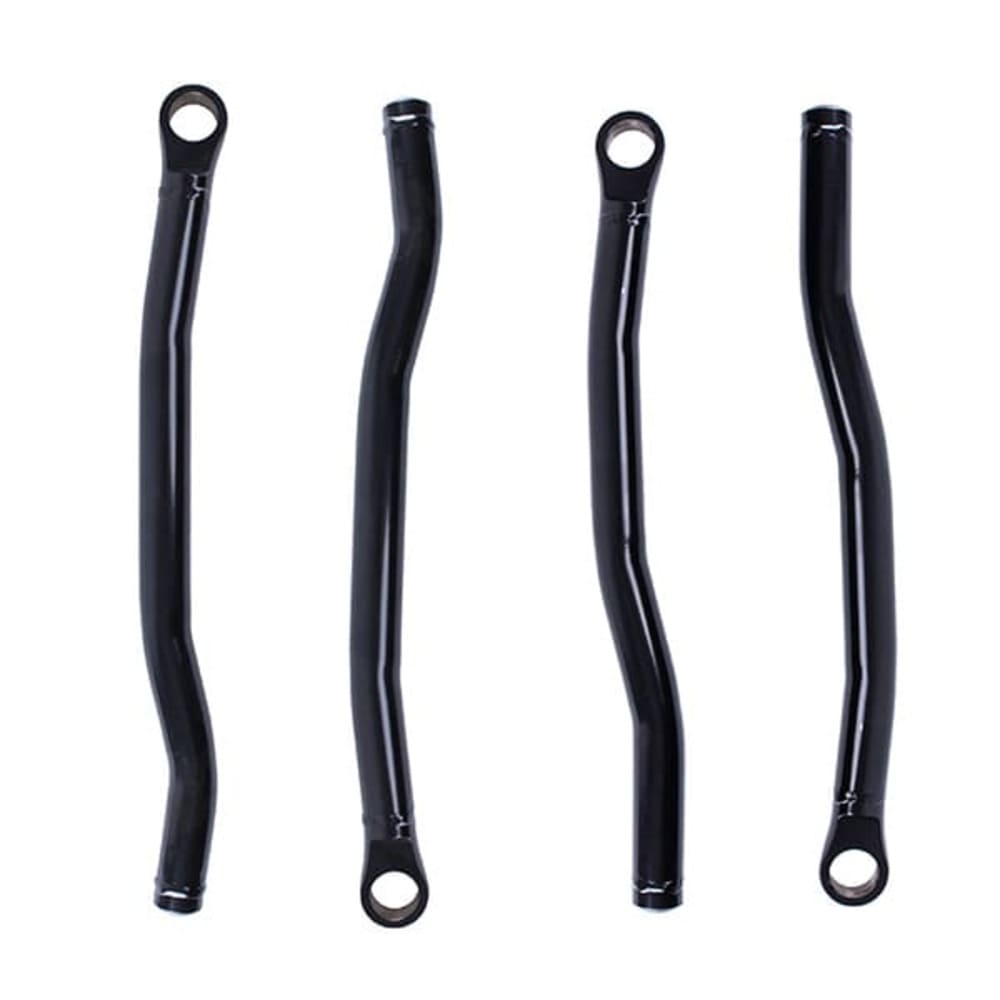

• The photos of the arched radius bars are the lower and middle and the straight bars pictured are the upper radius bars.

Fitment:

• 2017 Can-Am Maverick X3 MAX XRS
• 2017 Can-Am Maverick X3 XRS
• 2018 Can-Am Maverick X3 Turbo R MAX XRS
• 2018 Can-Am Maverick X3 Turbo R XMR
• 2018 Can-Am Maverick X3 Turbo R XRC
• 2018 Can-Am Maverick X3 Turbo R XRS
• 2019 Can-Am Maverick X3 Turbo R MAX XRS
• 2019 Can-Am Maverick X3 Turbo R XMR
• 2019 Can-Am Maverick X3 Turbo R XRC
• 2019 Can-Am Maverick X3 Turbo R XRS
• 2020 Can-Am Maverick X3 Turbo R MAX XRS
• 2020 Can-Am Maverick X3 Turbo R XRS
• 2020 Can-Am Maverick X3 Turbo RR MAX XMR
• 2020 Can-Am Maverick X3 Turbo RR MAX XRS
• 2020 Can-Am Maverick X3 Turbo RR XMR
• 2020 Can-Am Maverick X3 Turbo RR XRC
• 2020 Can-Am Maverick X3 Turbo RR XRS
• 2021 Can-Am Maverick X3 Turbo MAX R RS
• 2021 Can-Am Maverick X3 Turbo MAX RR XMR
• 2021 Can-Am Maverick X3 Turbo MAX RR XRS
• 2021 Can-Am Maverick X3 Turbo MAX RR XRS Smart-Shox
• 2021 Can-Am Maverick X3 Turbo R RS
• 2021 Can-Am Maverick X3 Turbo RR XMR
• 2021 Can-Am Maverick X3 Turbo RR XRC
• 2021 Can-Am Maverick X3 Turbo RR XRS
• 2021 Can-Am Maverick X3 Turbo RR XRS Smart-Shox
• 2022 Can-Am Maverick X3 MAX RS Turbo RR 72
• 2022 Can-Am Maverick X3 MAX XMR Turbo RR 72
• 2022 Can-Am Maverick X3 MAX XRS Turbo RR 72
• 2022 Can-Am Maverick X3 MAX XRS Turbo RR Smart Shox
• 2022 Can-Am Maverick X3 RS Turbo RR 72
• 2022 Can-Am Maverick X3 XMR Turbo RR 72
• 2022 Can-Am Maverick X3 XRC Turbo RR 72
• 2022 Can-Am Maverick X3 XRS Turbo RR 72
• 2022 Can-Am Maverick X3 XRS Turbo RR w/Smart-Shox 72
• 2023 Can-Am Maverick X3 MAX RS Turbo RR 72
• 2023 Can-Am Maverick X3 MAX XMR Turbo RR 72
• 2023 Can-Am Maverick X3 MAX XRS Turbo RR 72
• 2023 Can-Am Maverick X3 MAX XRS Turbo RR Smart Shox
• 2023 Can-Am Maverick X3 RS Turbo RR 72
• 2023 Can-Am Maverick X3 XMR Turbo RR 72
• 2023 Can-Am Maverick X3 XRC Turbo RR 72
• 2023 Can-Am Maverick X3 XRS Turbo RR 72
