Diode Dynamics '14-'18 Polaris RZR XP 1000 Stage Series LED Grille Kit

Diode Dynamics '14-'18 Polaris RZR XP 1000 Stage Series LED Grille Kit

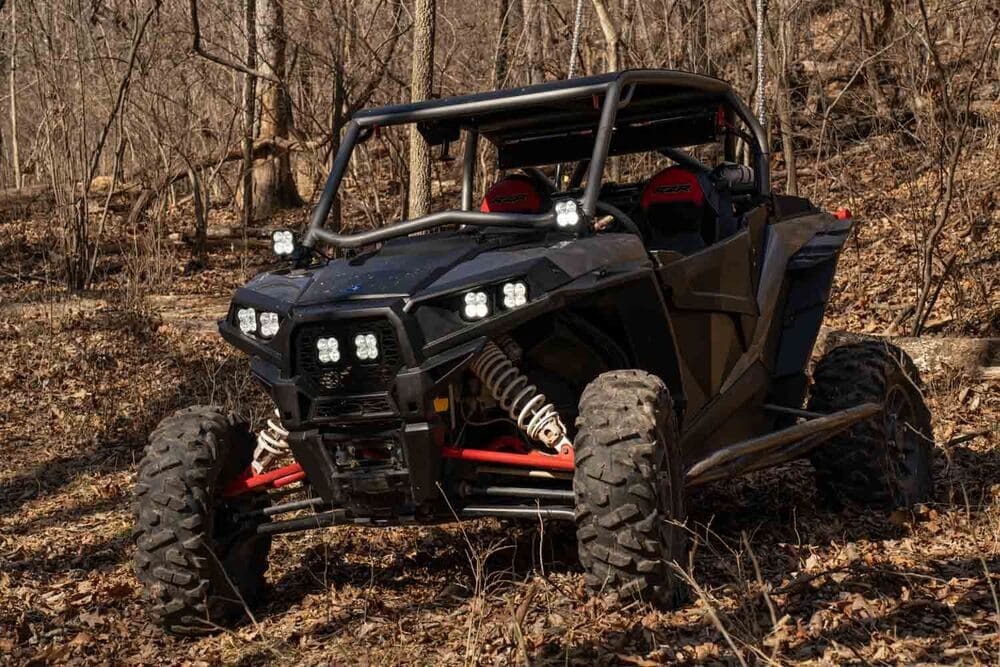

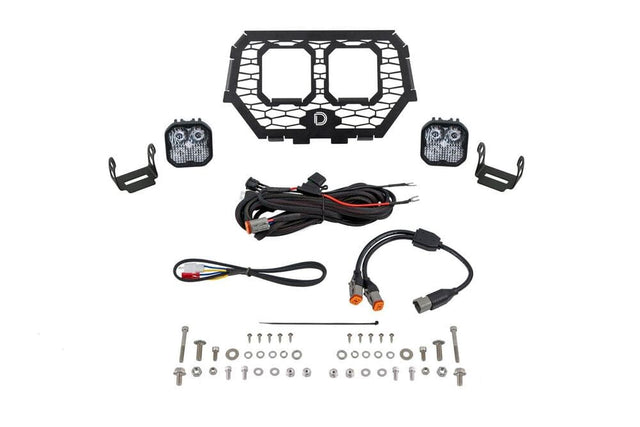

Designed for Performance. The Stage Series LED Grille Kit for the 2014-2018 Polaris RZR XP allows you to replace the factory plastic grille with a durable stainless steel grille using factory mounting points. No cutting or drilling required! This stainless steel grille from Diode Dynamics was specifically designed for the RZR XP with a honeycomb pattern to match the lower grille, and two openings that allow you to mount two SS3 LED pods with a stealth, OEM-like appearance. If you ride in dusty conditions, this is the perfect kit for you. The included SS3 LED pods will cut through dust and fog with ease, giving you more visibility in undesirable conditions.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Backlight Functionality. The Stage Series 3" LED Pods included in this kit feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. The included harness allows you to easily enable the DRL functionality!

Functional Output. Stage Series beam patterns were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency.

SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your RZR. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather and dusty conditions.

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

White or Yellow. This kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Interchangeable Lens. Need a different beam pattern or color? You can swap it yourself! We offer replacement lenses that allow you to change the color or optic of your Stage Series SS3 Pods.

Sport, or Pro. The Stage Series LED pods included in this kit are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
