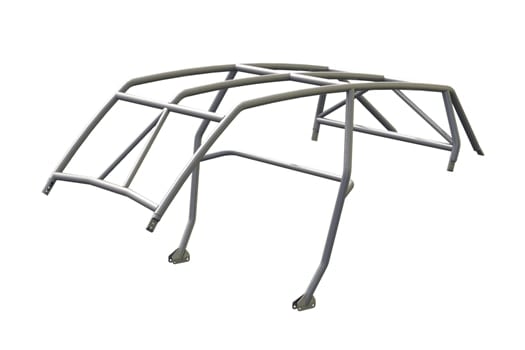

CageWRX Super Shorty Cage Kit - RZR XP4 1000 / XP4 Turbo S
SKU: CX-4SXPTSSS-DIY-AO

CageWRX Super Shorty Cage Kit - RZR XP4 1000 / XP4 Turbo S

SKU: CX-4SXPTSSS-DIY-AO
$1,099.99
Custom Icon
Earn $10 Fueled Cash

CageWRX Super Shorty Cage Kit - RZR XP4 1000 / XP4 Turbo S

Ready-to-weld Roll Cage Kit for Polaris® XP4 1000 (2019+) / XP4 Turbo (2019+) / XP4 Turbo S (2018+)

High-quality DOM steel used throughout. Main tubes are 1.75" diameter .095" thick and cross tubes are 1.25" diameter and .095" thick. Our Super Shorty roll cages use all stock mounting locations. Trophy Truck-inspired design provides exceptional safety for driver and co-rider. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work is required. Kit can be assembled and welded on chassis without the need for a separate fixture.

*In order to retain stock doors, front door hinges must be removed from the stock cage and re-welded to our cage. Doors will retain the exact stock location and fit.

Features:

  • Highest grade 1020 DOM steel
  • Main tubes 1.75" diameter
  • All tubes .095" wall thickness
  • (6) CNC Machined chassis clamps included
  • (4) Mounting plates for front row/back row tubes included
  • Highly triangulated roll cage for added strength
  • Slight radius roof design used
  • Tubes are laser cut and labeled
  • No welding fixture required
  • No grinding or other fab work required
  • Competent welder and welding machine, tape measure and 2 ratchet straps are all that is required
  • Kit can be TIG or MIG welded
  • ROOF NOT INCLUDED IN KIT.

What's In The Box?

  • 18 Laser Notched Tubes with tab and slot design for easy positioning of tubes
  • 6 Billet Tube Ends (chassis clamps)
  • 4 Chassis Mount Plates
  • 2 Rear Door Latch Mount Plates
  • 2 Whip mounts
