CageWRX Baja Spec Cage Kit - RZR XP4 1000 / XP4 Turbo S

CageWRX Baja Spec Cage Kit - RZR XP4 1000 / XP4 Turbo S

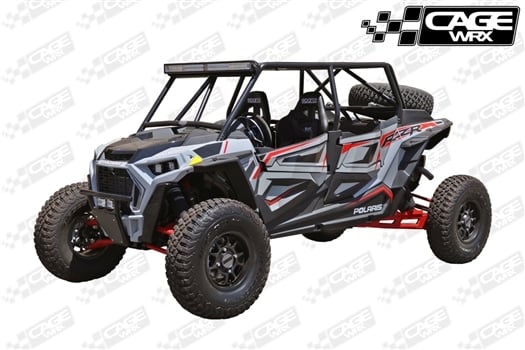

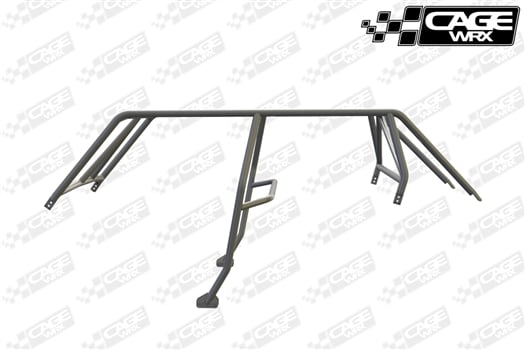

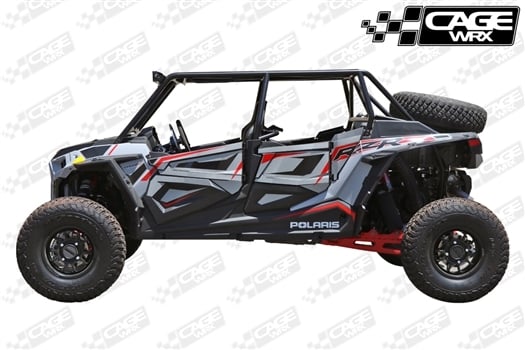

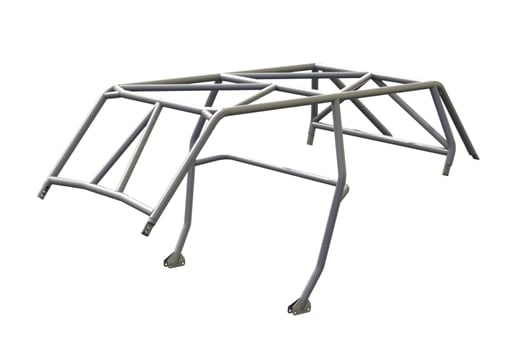

Ready-to-weld Roll Cage Kit for Polaris® XP4 1000 (2019+) / XP4 Turbo (2019+) / XP4 Turbo S (2018+)

High-quality DOM steel used throughout. Main tubes are 1.75" diameter .095" thick and cross tubes are 1.5" diameter and .095" thick. Our Baja Spec use all stock mounting locations. Trophy Truck-inspired design provides exceptional safety for driver and co-rider. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work is required. The kit can be assembled and welded on chassis without the need for a separate fixture. This kit meets SCORE and Best in the Desert roll cage requirement in terms of material, tube size, and design. Please check with the rule books for complete safety requirements.

*In order to retain stock doors, front door hinges must be removed from the stock cage and re-welded to our cage. Doors will retain the exact stock location and fit.

Features:

• Highest grade 1020 DOM steel
• Main tubes 1.75" diameter
• Interior Tubes 1.5"
• All tubes .095" wall thickness
• (6) CNC Machined chassis clamps included
• (4) Mounting plates for front row/back row tubes included

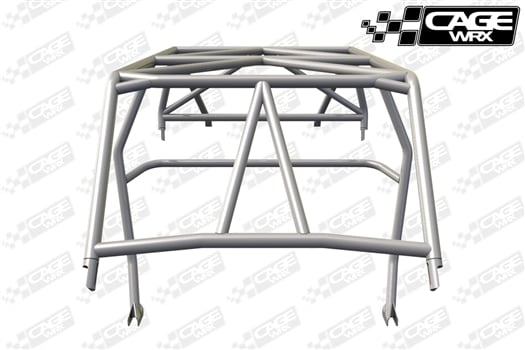

• Highly triangulated roll cage for added strength

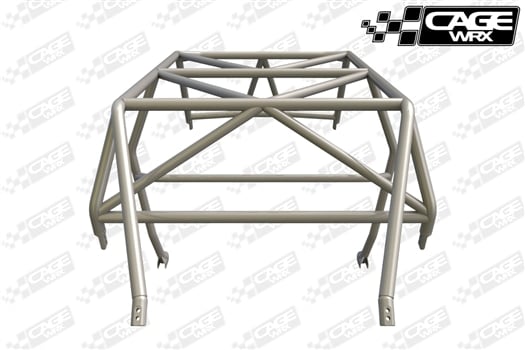

• Flat roof design

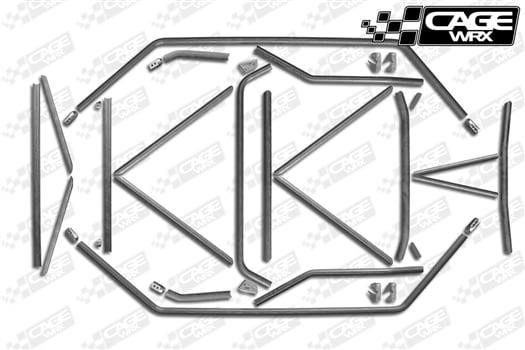

• Tubes are laser cut and labeled
• No welding fixture required. Can be welded using the vehicle as the fixture
• No grinding or other fab work required
• Competent welder and welding machine, tape measure, and 2 ratchet straps are all that is required
• Kit can be TIG or MIG welded
• ROOF NOT INCLUDED IN KIT.
