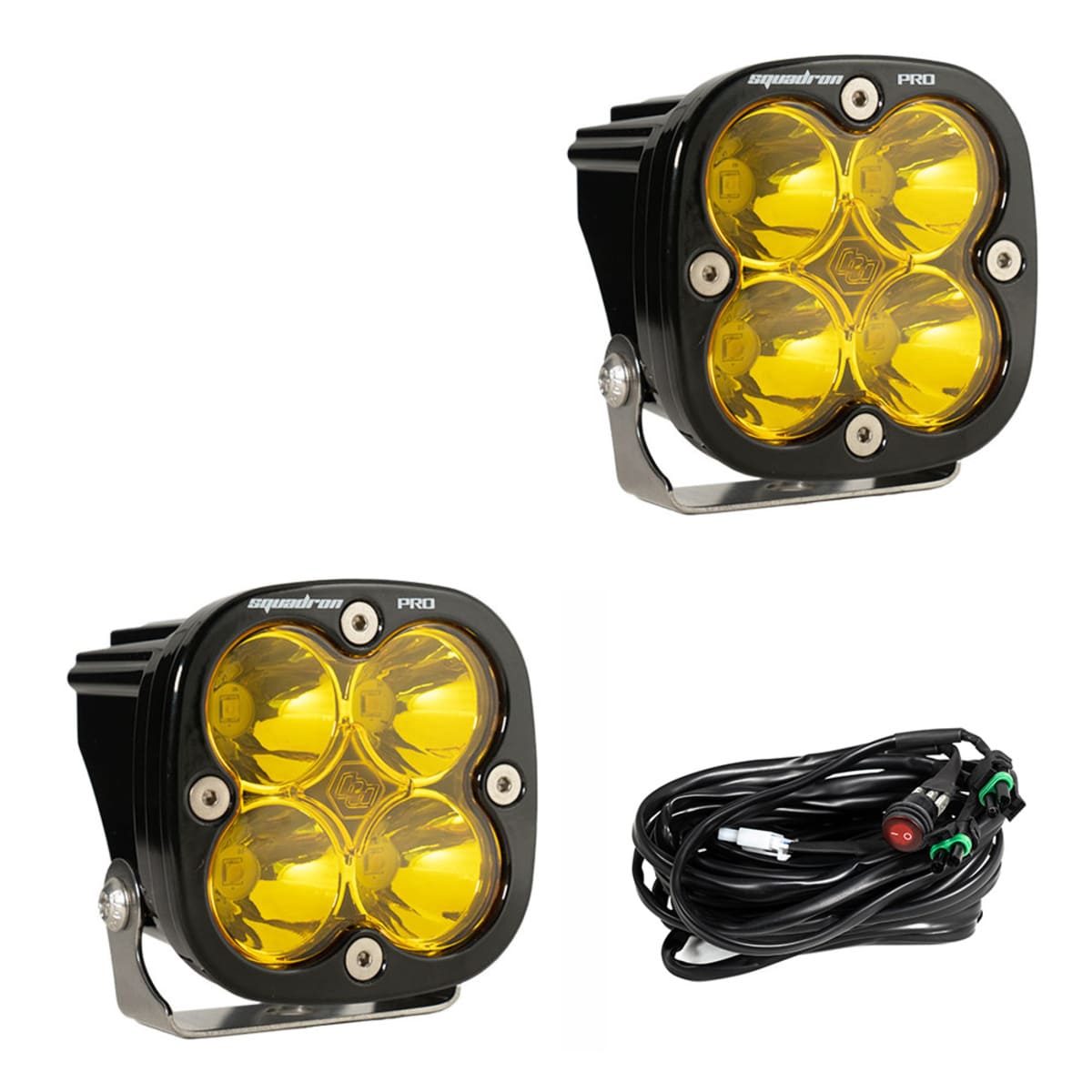

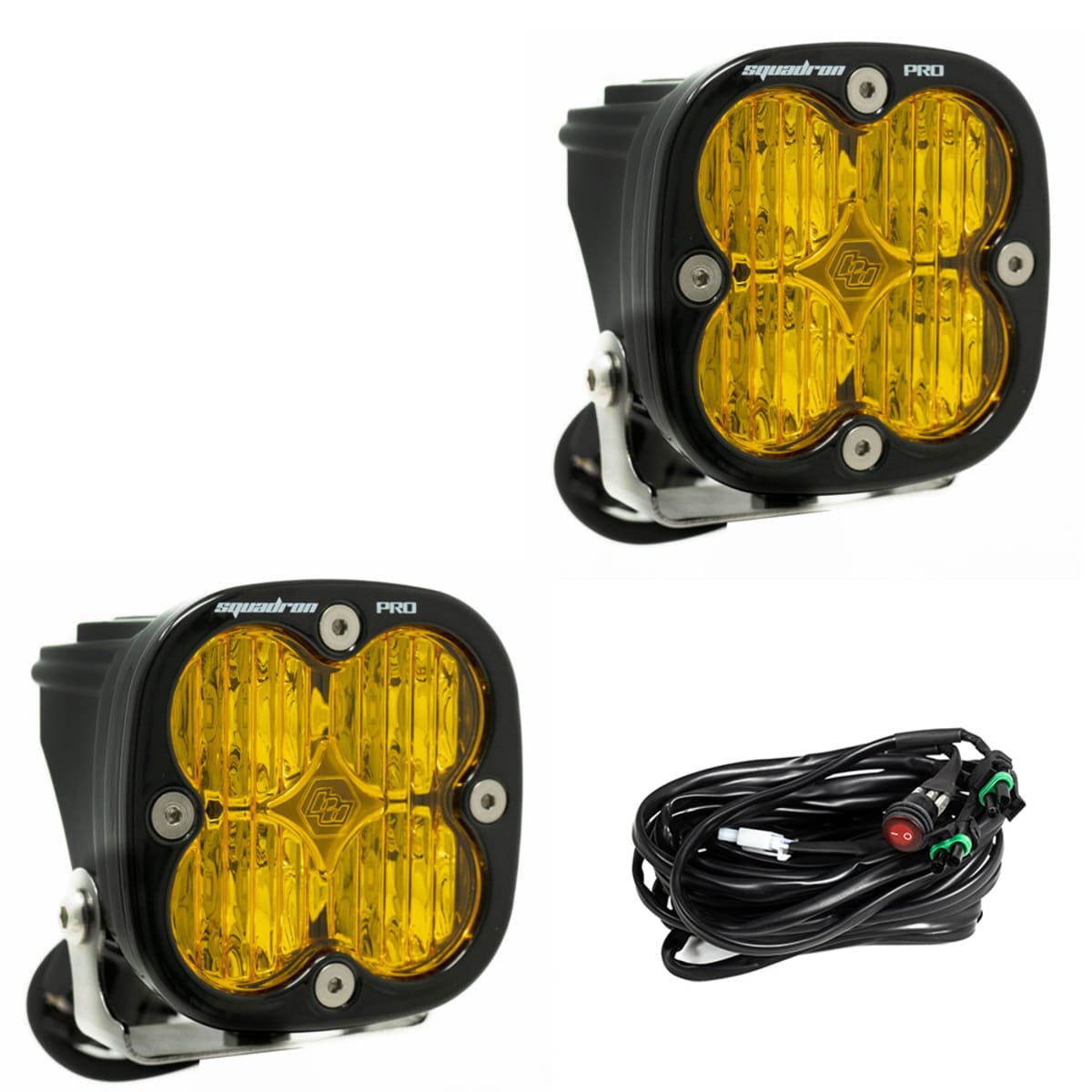

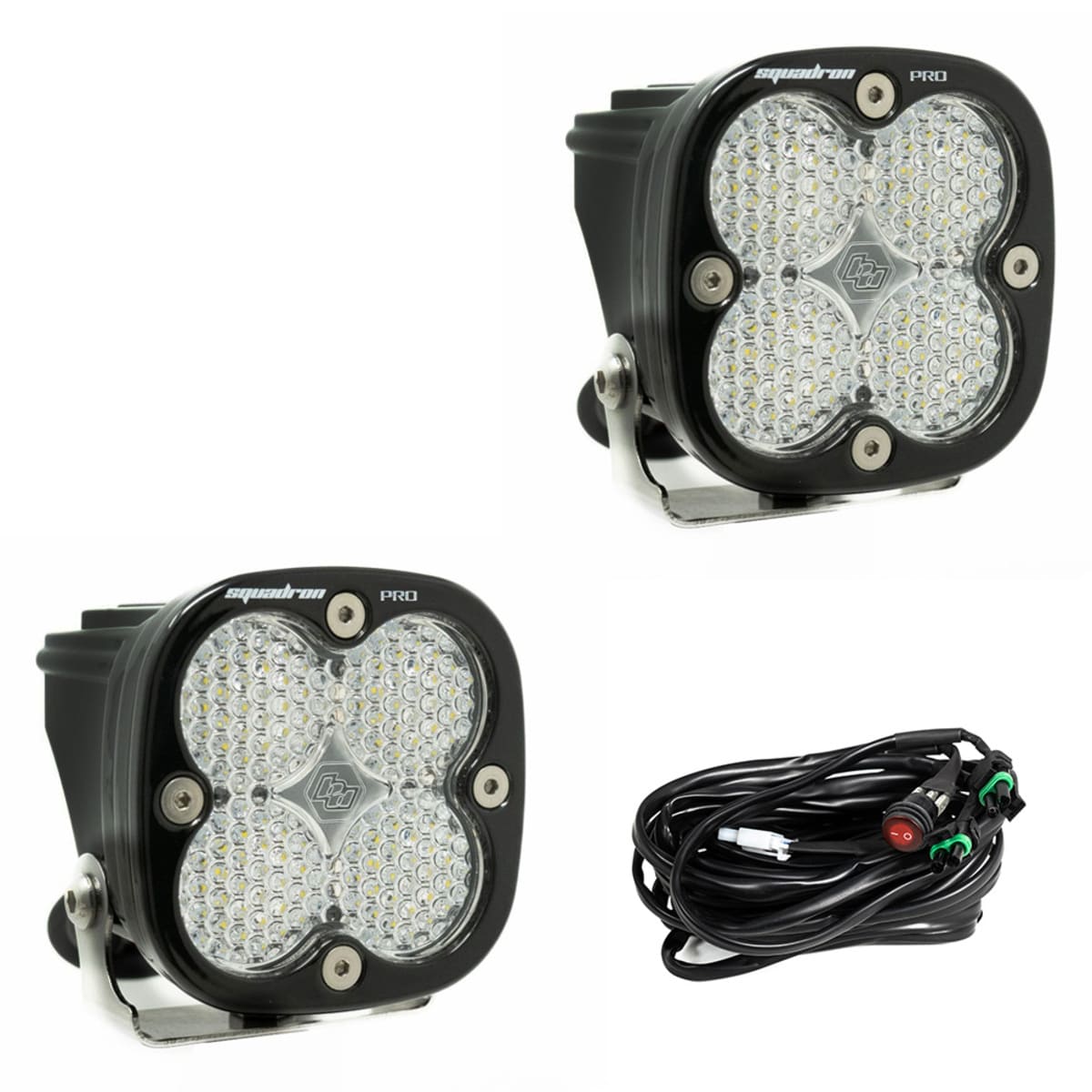

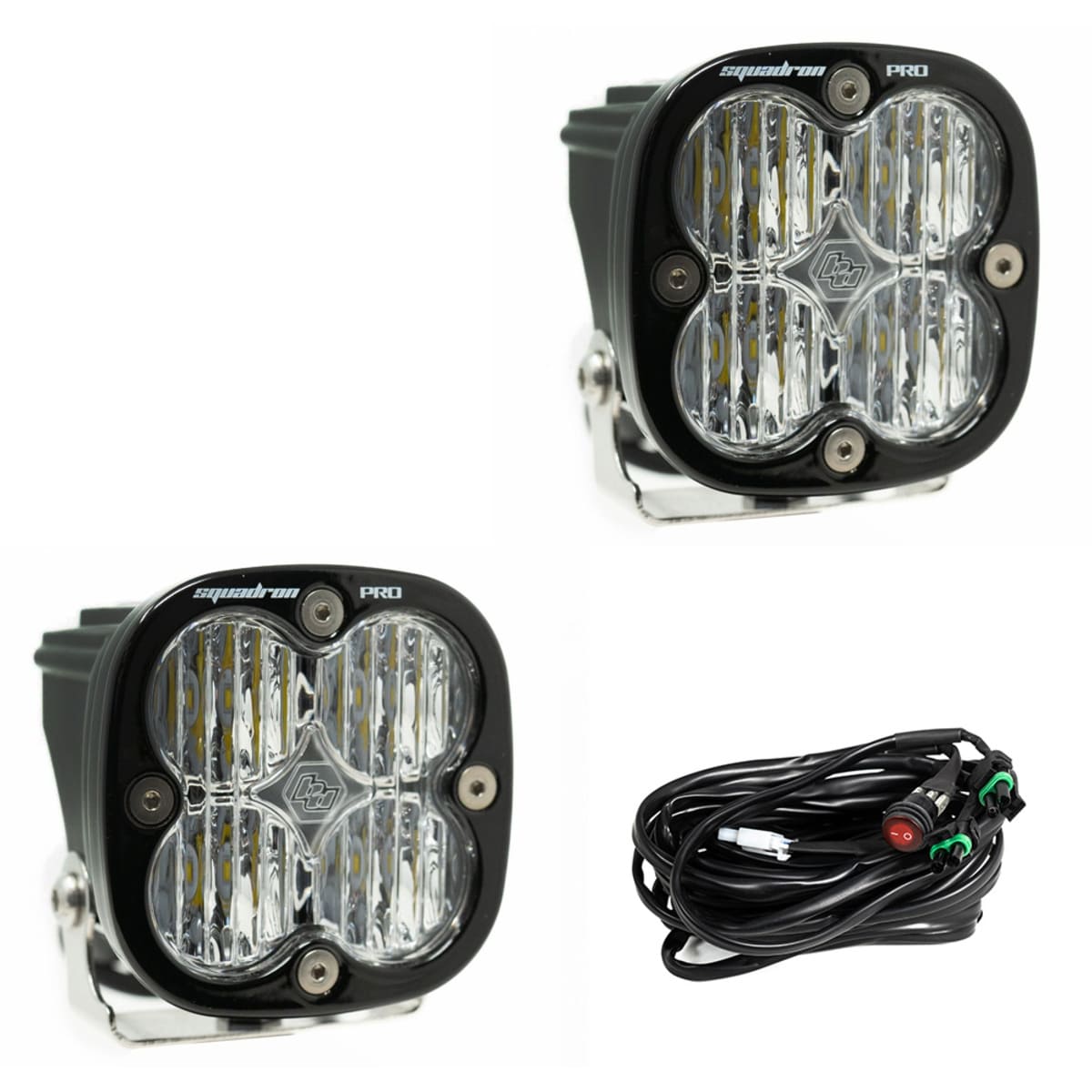

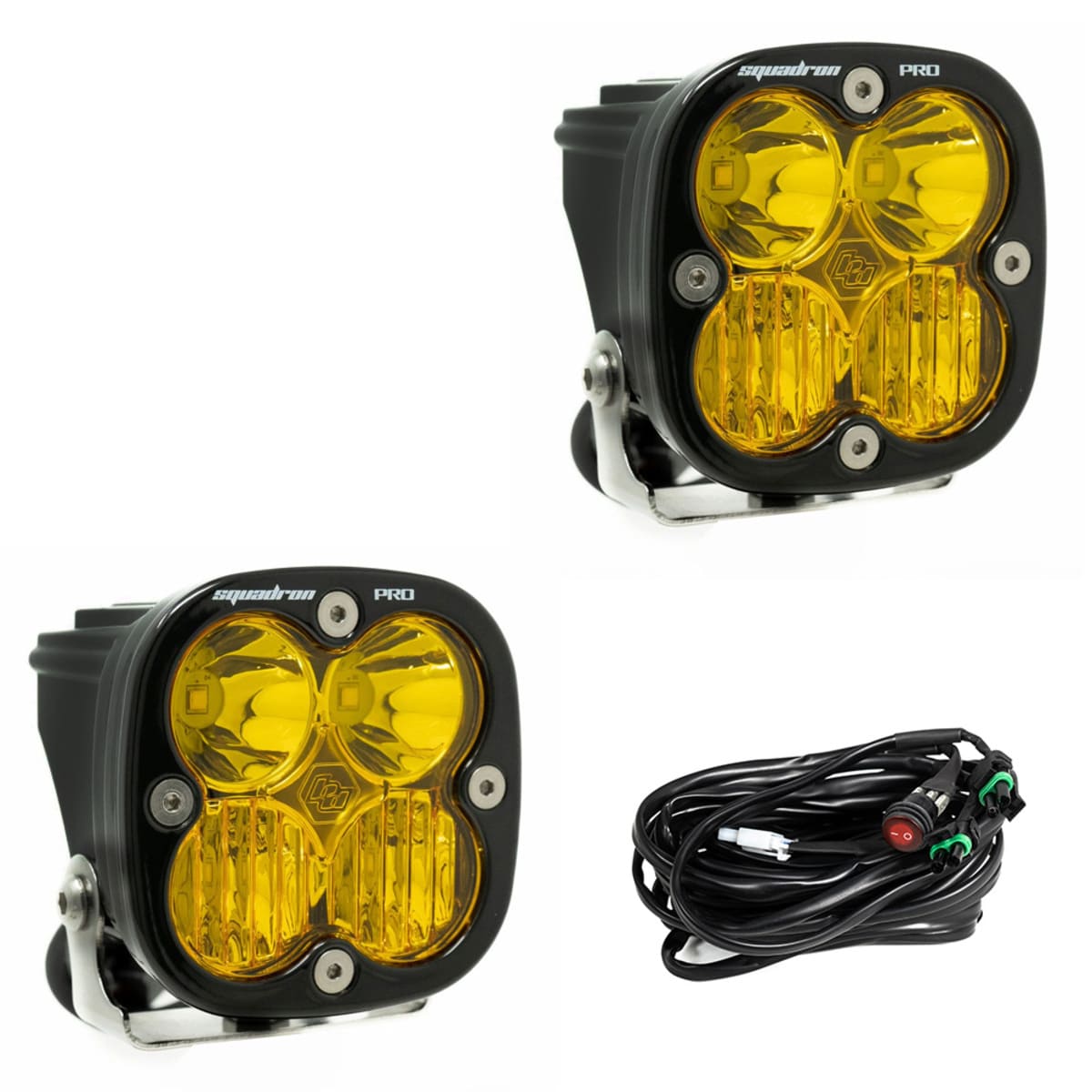

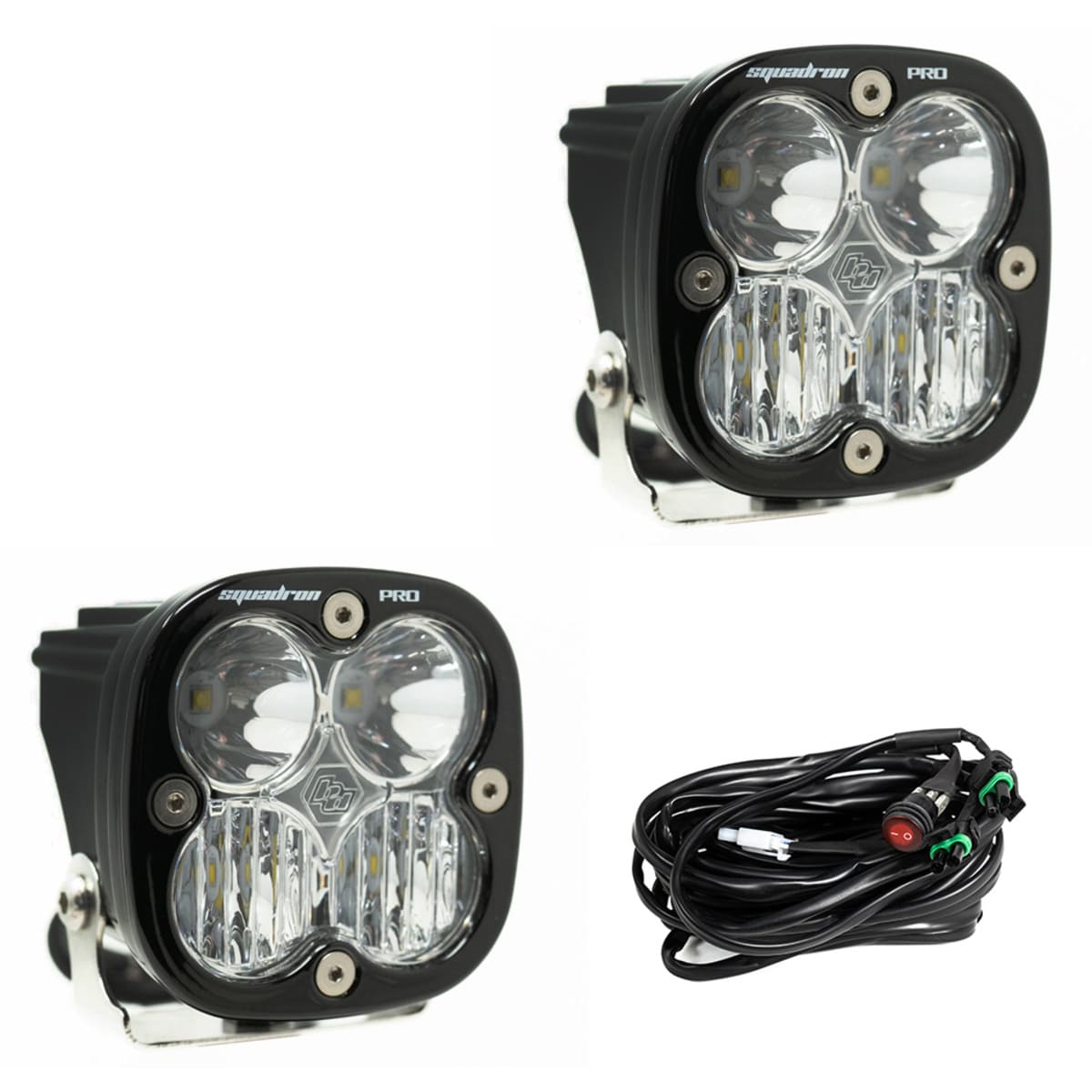

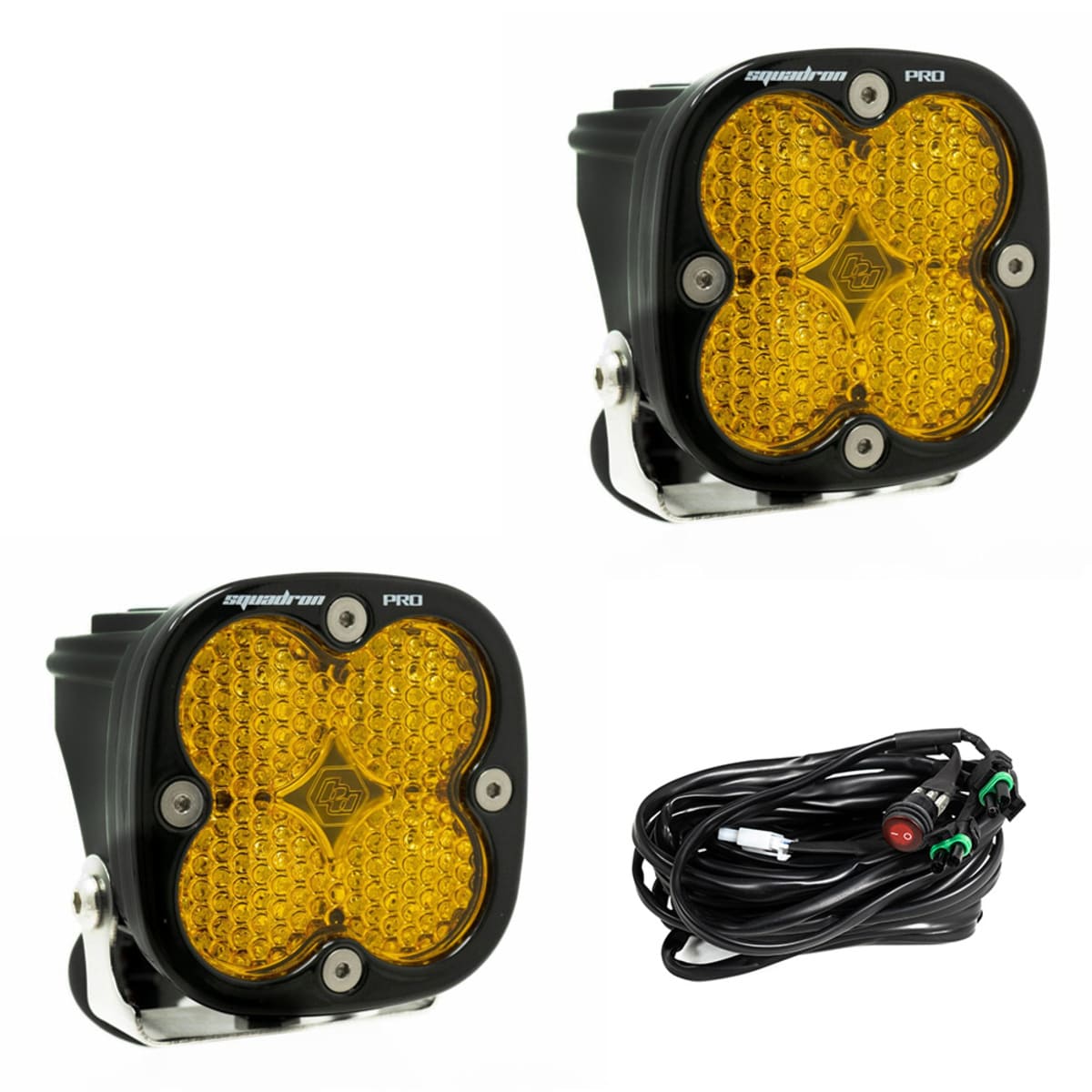

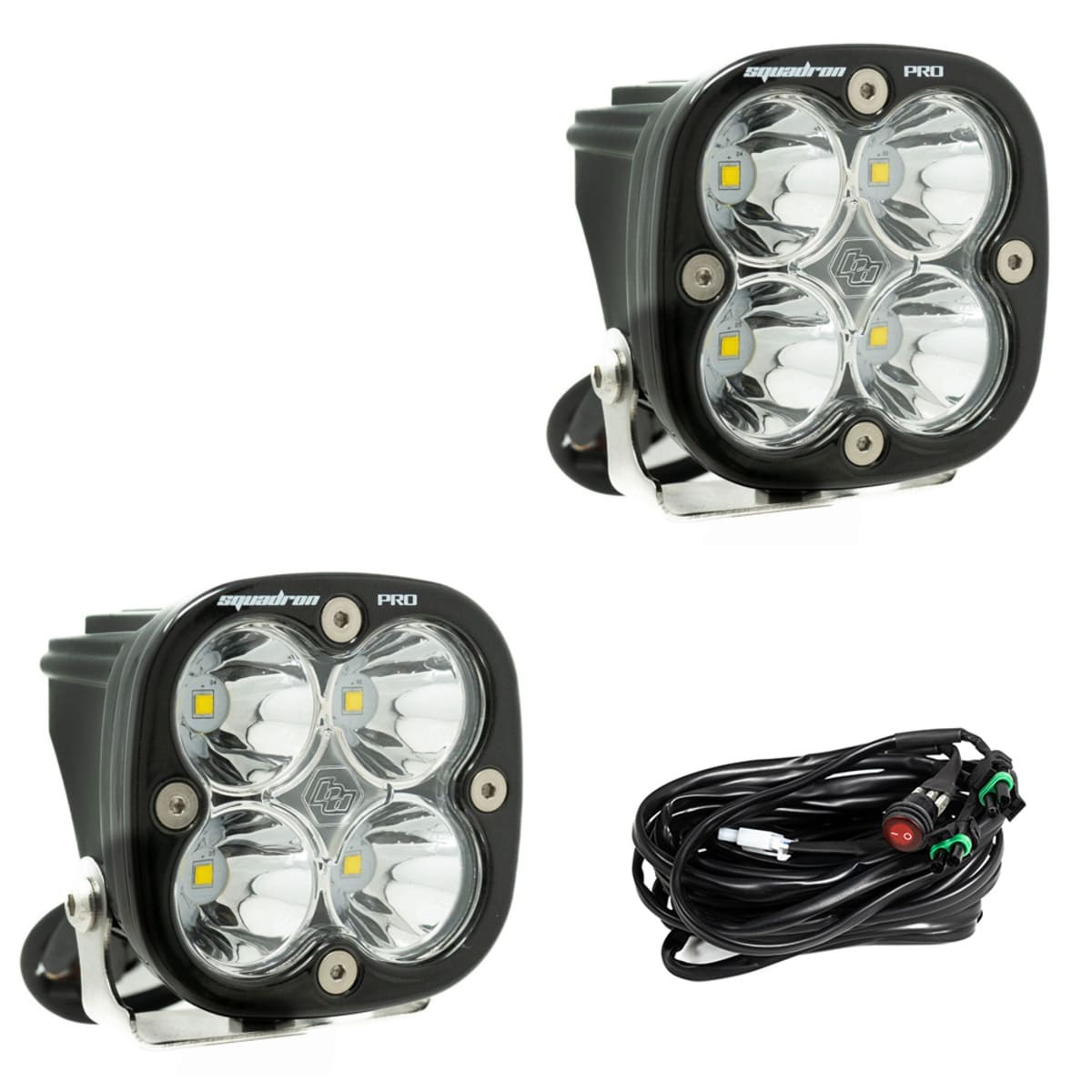

Baja Designs Squadron Pro Black LED Auxiliary Light Pod Pair - Universal
Light up the night with Squadron Pro LED light pair from Baja Designs. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron Pro is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 4,095 lumens. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. USPTO Reg No. 5,766,659
ELS™ Scores:
- Click to learn more about our Effective Lighting Score (ELS)
- Squadron Pro Driving Combo Clear: ELS 122°/ 7.2/ 266'/ 3708
- Squadron Pro Spot Clear: ELS 86⁰/ 6.2/ 323'/ 3443
Kit Includes:
- (2x) Squadron Pro Light Pods
- (1x) Wiring Harness 640117
- All Necessary Mounting Hardware
Specifications:
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- U-Service – Replaceable Lenses And Optics
- Clear View – All The Light, Right Where You Need It
- Moisture Block – Waterproof, Rain Proof, Submersible
- Copper Drive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions | |
---|---|
Depth (In.) | 2.770 |
Height (In.) | 3.070 |
Length (In.) | 3.070 |
Weight (Lbs.) | 0.750 |
Specifications | |
Amperage Rating (A) | 3 |
Average Rated Life (HR.) | 49,930 |
Beam Pattern | Spot |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 4095 |
Description | Spot; Clear; Pair |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hard Coated Poly-Carbonate |
Light Quantity | 2 |
Lighting Modes | Beam |
Lighting Quantity | 4 |
Lighting Technology | Cree LED (2 Types) |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-in |
Product Type | Squadron Pro LED Light Pod Pair W/ Wiring Harness |
Wattage (W) | 41.400 |
Wiring Harness Included | Yes |
Installation Instructions:
- Baja Designs 497801 Installation Sheet
- Baja Designs 497803 Installation Sheet
- Baja Designs 497805 Installation Sheet
- Baja Designs 497806 Installation Sheet
- Baja Designs 497811 Installation Sheet
- Baja Designs 497813 Installation Sheet
- Baja Designs 497815 Installation Sheet
- Baja Designs 497816 Installation Sheet
