Aftermarket Assassins Polaris 2024+ RZR XP 1000 Dual Suppressor Exhaust S2 Lock & Load Kit

Aftermarket Assassins Polaris 2024+ RZR XP 1000 Dual Suppressor Exhaust S2 Lock & Load Kit

Lock and load your 2024+ Polaris RZR XP 1000 and get ready for some serious kick! The 2024+ RZR XP 1000 is a fun machine, but Polaris left room for improvement on the table. This simple kit is the best way to wake up your XP1K as it comes with our proven ECU flash. The ECU flash adds some amazing horsepower from low end to high end RPM and really gives your machine that "snap" you're looking for.

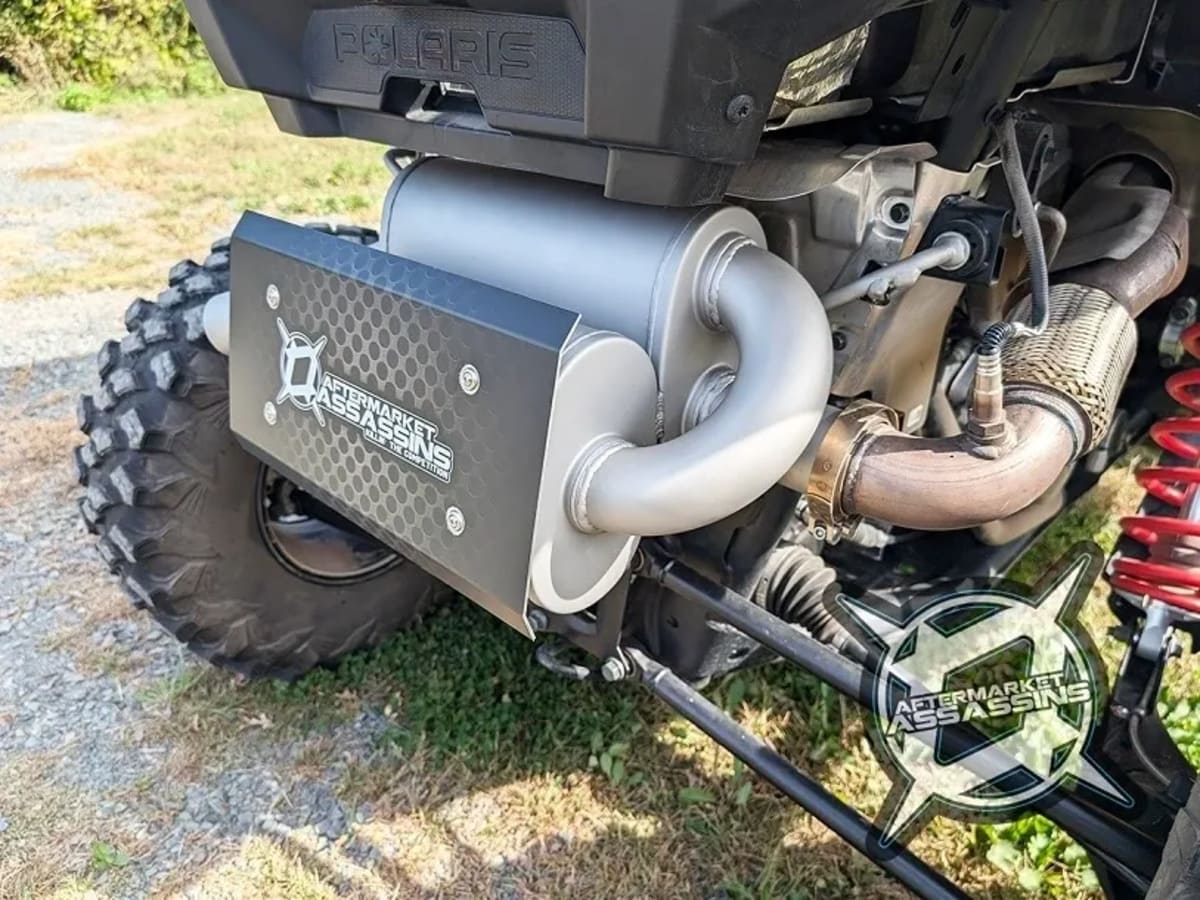

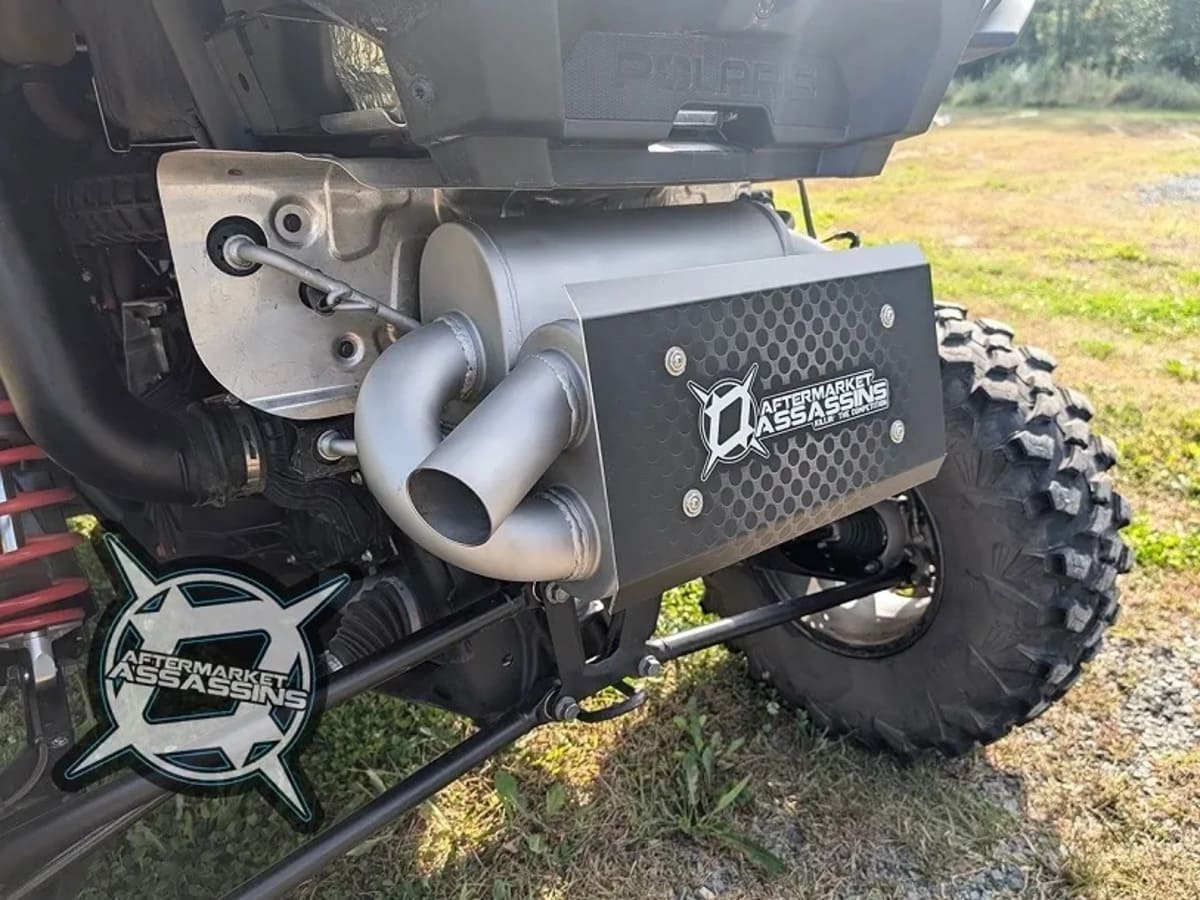

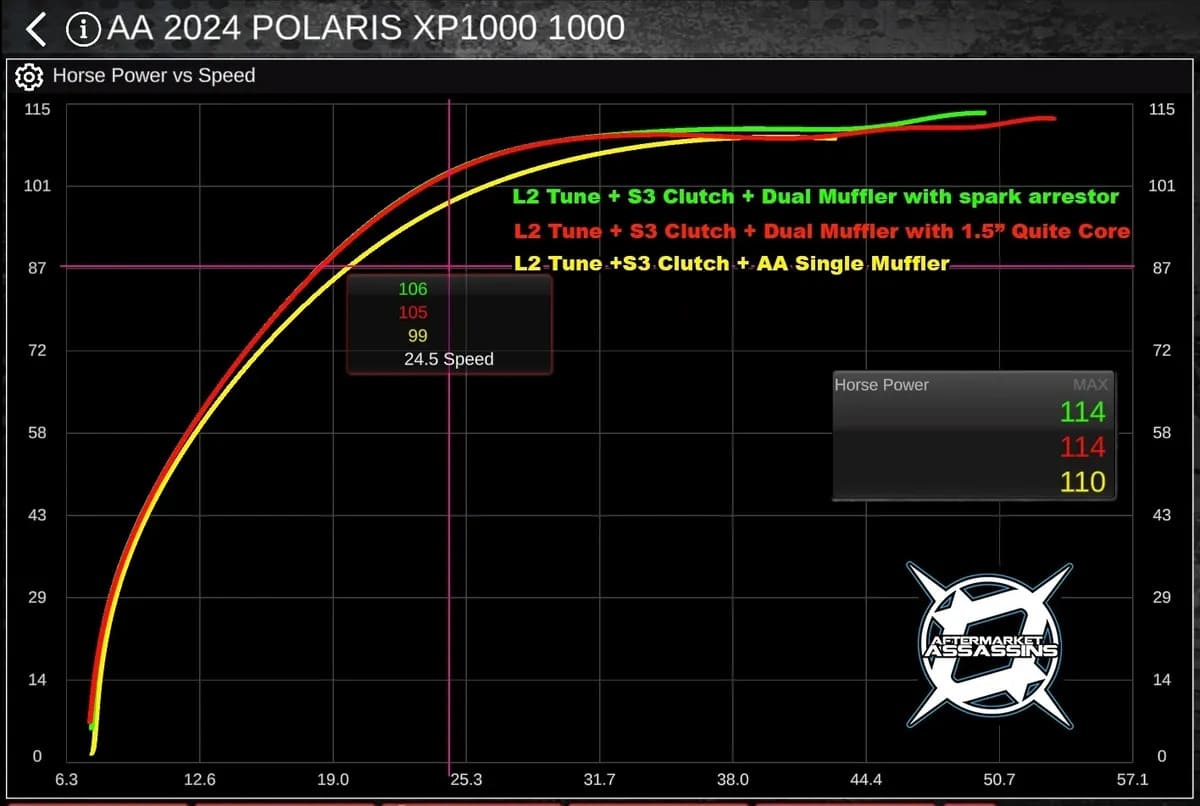

Our AA Stage 3 clutch kit compliments the tuning perfectly by more efficiently transferring power to the wheels and ridding yourself of the very lazy factory clutching setup and poor belt grip. We finish out the kit with our AA dual suppressor slip-on exhaust and it's just what your machine needs! We set out to produce an exhaust that looks great, sounds great and has lower sound levels than stock. We designed this to be quiet and ended up making big horsepower gains as this motor LOVES the volume of this exhaust. We picked up 4rwhp over a single outlet muffler, and it carries out further.... you can really feel the low to top end pull which is massive over the stock exhaust, still offers big gains over our single muffler. Requires ECU to be sent in for programming/unlocking unless choosing to purchase ECU outright, AA Stage 3 Clutch Kit with primary clutch limiter, and AA Dual Suppressor Stainless Slip-on Exhaust. Exhaust requires trimming of rear plastic. See image above, very easy and 100% worth it

Works with all models including ones with Dynamix and/or Evap models. Looking for the best/most badass ECU tuning available for your RZR XP1K. AA's performance tunes are now available to gain horsepower and torque. Through our advanced ECU tuning we are able to modify parameters correctly to gain you the power needed. We are highly experienced in tuning RZRs and this will show. AA's choice setup: set your clutch up for what we call our "Cruiser" magnet/arm setup and run the dual suppressor exhaust with the 1.5" core. The 2024+ RZR XP 1000 uses a new Bosch MG1 ECU. Currently no programmers are available that flash without first having the ECU unlocked. The HP Tuners Remote Tuning Device (RTD) allows the ECU to be flashed remotely at any time using the AA/HP Tuners RTD and your smartphone once the unlock process has been completed from AA. See HP Tuners RTD information below: HP Tuners Remote Tuning Device (RTD) upgrade option - Upgrades to HP Tuners RTD which includes the RTD, OBDII to Polaris Diagnostic Port cable, necessary credits to flash your ECU, one AA custom tune (more tunes optional), and ECU Unlock performed at the AA facility. Requires ECU to be sent in to be unlocked unless purchasing ECU outright. After the initial unlock, the ECU can now be flashed remotely at any time using the HP Tuners RTD and your smartphone. See links at bottom of product page for flashing your vehicle and data logging.

Rev limit at a safe 9200 RPM (stock is 8800). Ideal peak RPM @ 55 MPH is 8400-8600 with the flash, but 9200 is for ramp up overshoot/top speed.

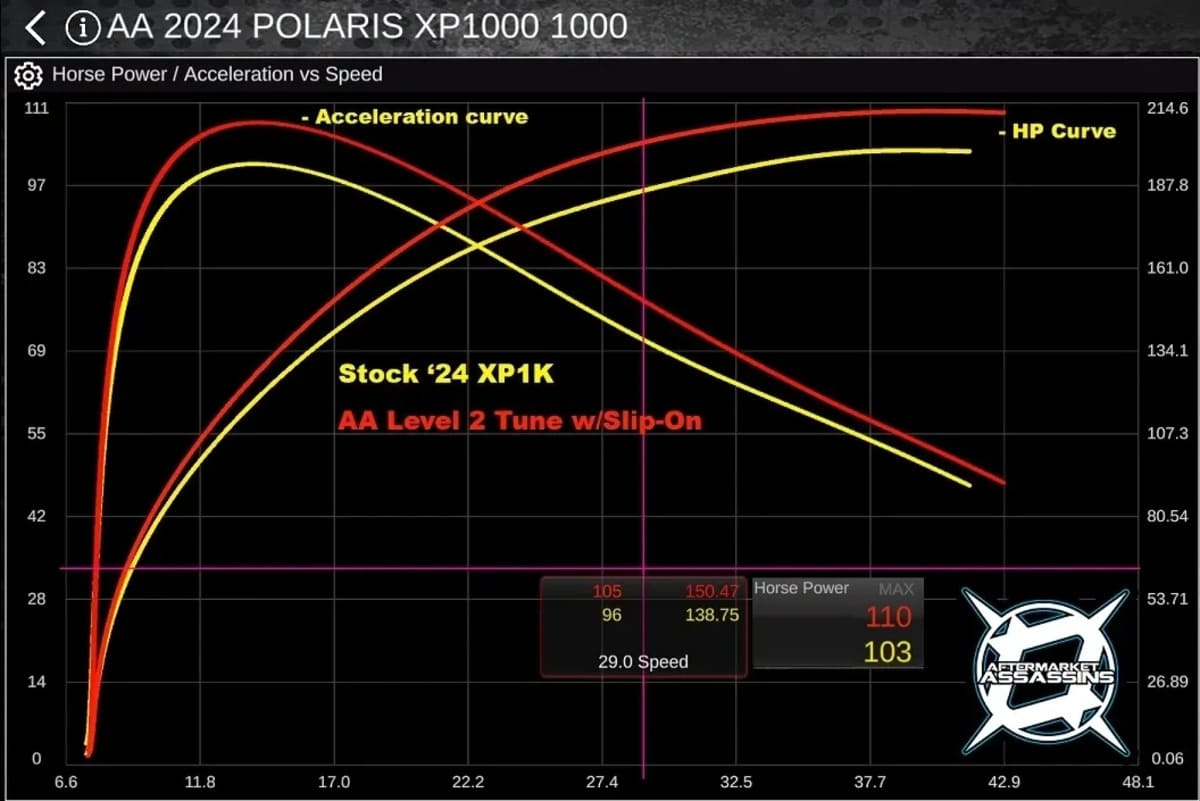

AA's wicked timing curve is safe for the fuel octane recommended, but we do a much better job of finding timing limits for ramp up/more torque. Many others simply focus on wide open throttle timing/fueling. AA's tunes are developed for 91 octane unless specified otherwise. AA's modified fuel curve will still get decent mileage cruising, but is corrected over the factory lean AFR when needed most on higher throttle inputs. Included Level 2 Tune: This tune is developed for an XP1K with aftermarket exhaust on 91-93 octane. It has just a bit more timing and a bit more fuel over Level 1. This tune adds +7 RWHP peak and a massive +9 RWHP at 30 MPH (This is gaining roughly +10-11 crank horsepower) putting you at roughly 125 crank horsepower with just a flash and exhaust! We would highly suggest our clutch kit with this tune to help with belt grip and to help drive the extra power to the wheels. Due to how these motors/tuning works, this tune should work with about any aftermarket exhaust, but was tested and designed with our AA slip-on exhaust. Looking for race fuel tunes? We were also, but unfortunately we found no real power increase by adding octane. Certainly a little extra octane is never a bad thing to keep your ECU from pulling timing based on engine knock, but we tried various attempts to make more power with no significant results. Evap (50 State/Cali model) or Non Evap (STD) Model: See the sticker located in your drivers side front wheel well as it will state which one you have. Your ECU should also have a label on it stating if it's an Evap, but we like to verify with the VIN sticker also as sometimes Polaris is not correct on the ECU sticker. ECU MUST BE SENT IN FOR PROGRAMMING/UNLOCKING: Aftermarket Assassins, 2348 75th Ave, Osceola, WI 54020 (If selecting option to purchase ECU outright, disregard shipping notes as we will ship a new flashed/unlocked ECU to you)

Why AA tunes over others? We have been tuning UTV's with CVT clutches for a long time, longer than almost anyone in our field going back to the 800 RZR. Tuning a CVT vehicle properly is not an easy task as you have so many variables at one time. We spend the time to wheel dyno(with actual UTV tires) correctly per modification, and have advanced ECU calibration and clutching knowledge to do so. Every change in horsepower can result in us changing clutching several times. We also develop most of our supporting mods so we know everything works correctly, and build parts to fit the vehicles needs. Lastly and honestly the most important; we then back up our results with real world data logging on local trails and our facility on 110 acres. It's this combination that truly makes the difference and why AA normally has a faster vehicle with the same or less rated tune horsepower. We left nothing on the table on the XP1K bolt-on parts, if others claim more power/gains for the same mods use caution in believing it

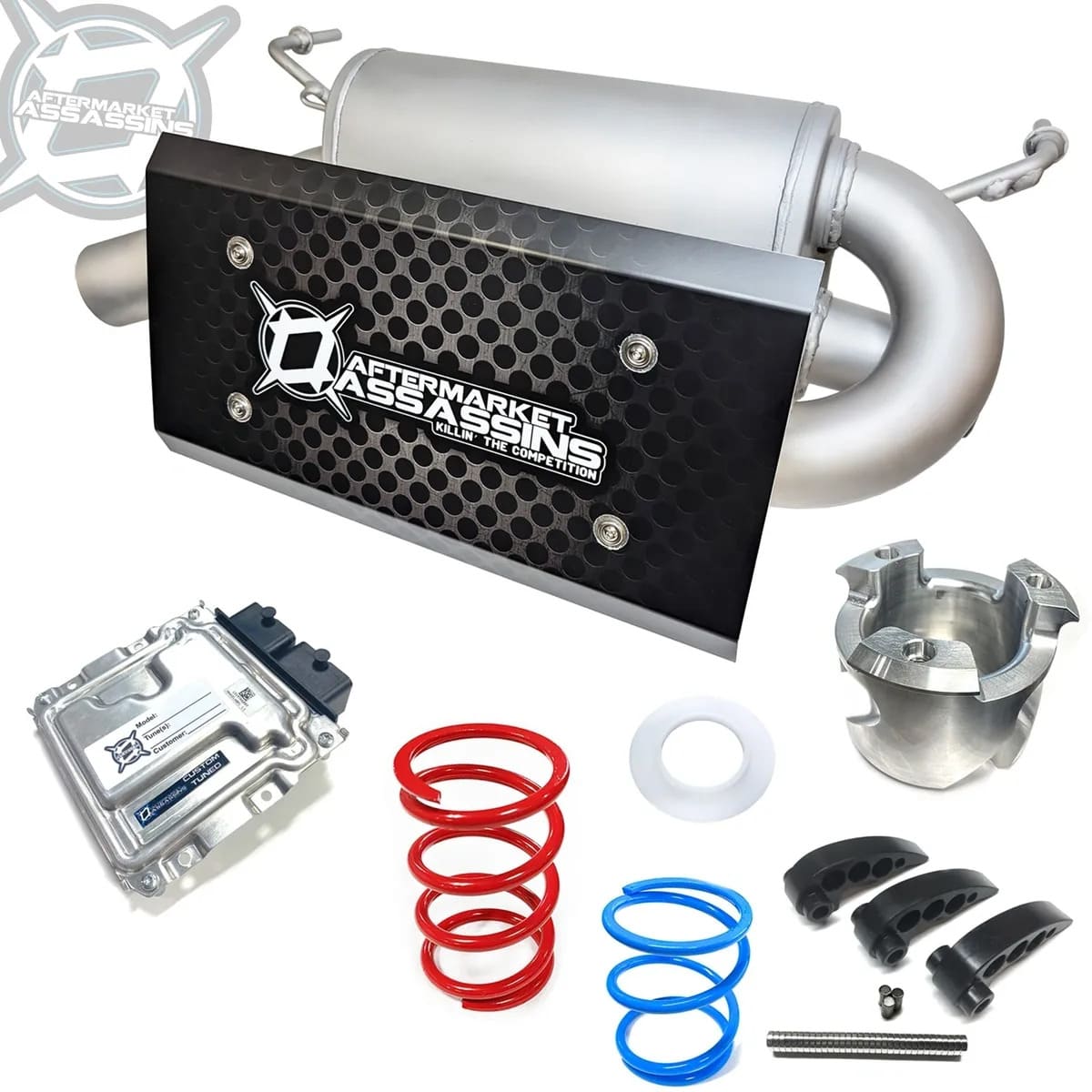

Stage 3 Clutch Kit includes: Setup/Installation sheet, AA Recoil magnetic adjustable clutch weights, primary spring, primary limiter washer, secondary spring and AA helix. The initial setup guideline shows the best setups for dunes, mud, or all around trail riding. This also has brief instructions on installing your clutch kit among other important information.
The 2024+ XP 1000 is clutched very odd from the factory. The vehicle winds out RPM right from the gate and does not transfer any torque until you hit peak RPM. This is somewhat of a race setup, but really all around it does not work well. Our kit helps combat this with our helix specifically designed for this model, along with our weights and springs that are all key components in transferring power to the rear tire efficiently. This is shown on the dyno and felt in real world driving (butt dyno). The clutch kit also adds huge belt grip and is especially needed when going to larger tires. The Performance helix gains the most acceleration, while the High Load helix is a little more than stock but less aggressive for excessively heavy/large tires, crawling, or mud riding.

Customer is responsible for shipping the ECU to AA, a shipping label is not included in the price Excludes Express Flash, which includes UPS Next Day Air label to ship ECU to AA. Programming turnaround will vary, but is normally 1-2 business days. Express ECU service for US main 48 states only. We'll send you a Next Day Air UPS label, and ship your ECU ONLY back via Next Day. All other parts will be shipped ground unless otherwise specified/selected during order checkout. Keep in mind we cannot guarantee same day programming/unlocking or control UPS shipping times/delays. We will do everything possible to turn the ECU around as fast as possible.
When the ECU arrives we'll read your stock file and keep a file folder for your stock/tune files. We'll then flash with the correct AA tune.
If you ever need to go back to the OEM tune we charge $95 which includes shipping back to you (shipping back for lower 48 US only). Please contact us if you need to go back to your OEM tune.
ensure you insure your ECU for $700. AA is not responsible for shipping delays or lost ECUs. While more expensive over Priority Mail or FedEx, UPS has been the most reliable carrier in our experience.
Our "Cruiser" setup (listed in the included clutch setup sheet) is for those looking for less cruising RPM and less noise. The '24 RZR XP1K has a higher running RPM from the factory and is extremely loud for a stock machine. The cruiser option loads the primary clutch weights heavier with the included magnets. No need to purchase a completely different kit if looking for a quieter ride. This setup drops peak RPM down to roughly 7500-7800 RPM instead of 8300-8600 like factory. This does lose a bit of horsepower, but if that's not your concern, this setup works extremely well for eliminating that brain rattling buzz. This setup also has even smoother engagement, crawls very well, and still has plenty of acceleration. Think more of a cross between a Ranger and RZR as far as acceleration and feel. The best part is you are not stuck with this setup. You can simply revert back to our standard clutch setups whenever wanting more performance. Switching the weights takes 15-30 minutes for most and gives you a chance to clean up/inspect your clutches.

High Load Helix 1067: Slightly less aggressive than the Performance helix with good acceleration gains/power transfer over the OEM helix. Designed to work better for heavier vehicles, heavier tires, heavy sand load or crawling type riding in mind. Works on 2 & 4 seat models with 30-35" tires or 30-33" paddles. Excellent all-around helix!
Performance Helix 1068:  Aggressive helix with acceleration/higher horsepower/aggressive fast pace drivers in mind. Works best with a tuned vehicle. Works on 2 seat models with 30-32" Tires. Not suggested for 4 seat models.
EBS (Engine Braking) Options:
Keep EBS: Like factory. Most slower pace riders (mud, crawling or very hilly terrain) will keep the EBS in place. Gets rid of the chatter noise but there is a decel whine.
Remove EBS: Removes the EBS pocket in the helix. Gets rid of the roller clunk noise but there is a decel whine. Most faster pace trail riders/racers or dune riders will choose to remove it.

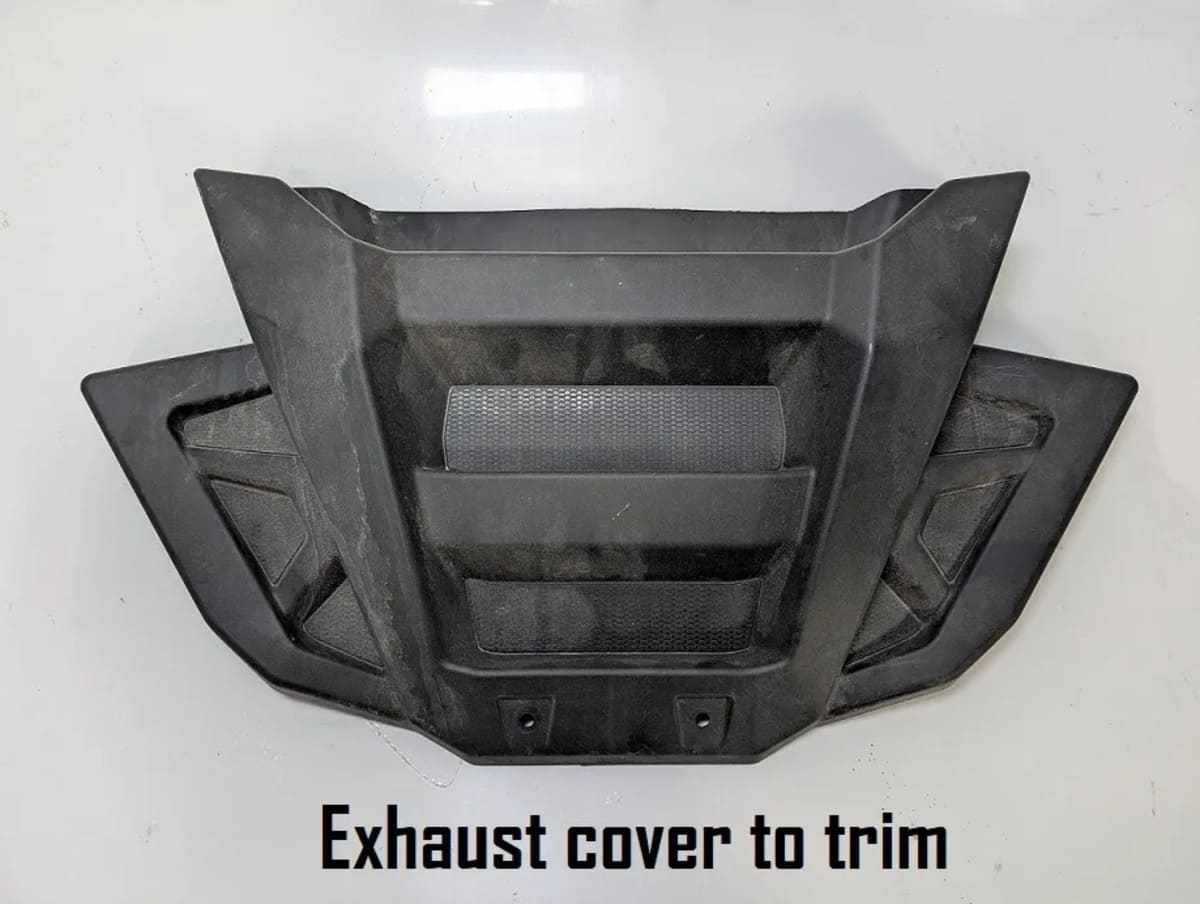

We high suggest running our Stryker Belt as we've found it grips much better in the clutches. We also suggest our Revolver Billet Clutch Cover with Tower Lock for improved strength and airflow. Have alignment issues. Use our P90X Secondary Clutch Alignment Shim Kit to set things straight. Highly recommend upgrading to our Heavy Duty P90X Secondary Clutch Rollers. AA Dual Suppressor exhaust requires trimming your rear plastic to fit
For more information on the quieter dual muffler exhaust follow this link: 2024+ RZR XP 1000 Dual Suppressor Slip-On Exhaust
Looking for less sound. We suggest purchasing the spark arrestor to be forestry compliant, or the 1.5" stealth core Amazing sound that is fully adjustable when purchasing our Stealth 1.5" Quiet Core or Spark Arrestor. Flashing your vehicle using the Tune Delivery Network
VCM Suite Download (For data logging - need PC)
Oh... and get ready for your XP1K to flat out rip!

Features:

• Big horsepower gains depending on the level of tune/modifications (see tune descriptions below for more details)
• Much quicker throttle response and power delivery giving a whole new feel to the vehicle
• Throttle by wire limiters disabled
• Fan on/off at 185/180 degrees Fahrenheit (Stock is 205/192) which is just above the thermostat opening temp.
• Speed limiter removed in low and high gears
• Seatbelt Limiter Removed
• Start in Any Gear with Brake
• More throttle % in low gear and reverse as the factory limits these gears to not open the throttle fully
• The ECU is located behind the driver seat (rear driver side if 4 seat). Remove the top panel behind the seats to expose the ECU. Remove the Torx bolts and ECU connector

Kit Includes:

• AA ECU flash for 2024+ RZR XP 1000 Models

Note:

• Does NOT fit older RZR XP 1000 models

Fitment:

• Fits all 2024+ RZR XP 1000 models

Installation Instructions:
