Aftermarket Assassins '25 Polaris Ranger XP 1000 RTD ECU Custom Tunes Flash Device

Aftermarket Assassins '25 Polaris Ranger XP 1000 RTD ECU Custom Tunes Flash Device

• Looking for the best/most badass ECU tuning available for your 2025 Ranger XP 1000? AA's performance tunes are readily available to gain horsepower and torque. Through our advanced ECU tuning we are able to modify parameters correctly to gain you the power needed. We are highly experienced in tuning UTV's and this will show. We were the first to flash the Polaris MG1 ECU, and spent a huge amount of time in R&D to develop the most powerful ECU calibrations (tunes) possible.
• Big horsepower gains depending on the level of tune/modifications (see below tune level descriptions for more details)
• Much quicker throttle response and power delivery giving a whole new feel to the vehicle
• Throttle by wire limiters disabled
• Seatbelt speed limiter is removed
• Misfire detection is desensitized to prevent false misfire codes
• Start in any gear (factory will only start in park)
• 2 Foot limits disabled(gas/brake at the same time)
• Fan on/off at 188/184 (Stock is 203/193) degrees Fahrenheit which is just above the thermostat opening temp. We also ramp up fan speed quicker than OEM (PWM fan speed increases as engine temps increase)
• Speed limiter removed in high gear (OEM Speed limit in high is 62mph)
• Speed limiter bumped up to 45mph in low(stock 29mph) and 30mph (stock is 25) in reverse
• More throttle % in low gear and reverse (stock limits your throttle for torque limitation)
• Rev limit at a safe 8800 RPM (stock is 8000). Ideal peak RPM @ 55mph in a wide open throttle run is 7200-7600 with the flash, but 8800 is for ramp up overshoot/top speed.
• Clutching is highly suggested to achieve best peak RPM and best power output as the OEM clutching will fall short of peak RPM for this motor/tune.
• AA's wicked timing curve is safe for the fuel octane recommended, but we do a much better job of finding timing limits for ramp up/more torque. Many others simply focus on wide open throttle timing/fueling.
• AA's modified fuel curve will still get good mileage cruising, but is corrected over the factory lean AFR when needed most on higher throttle inputs.

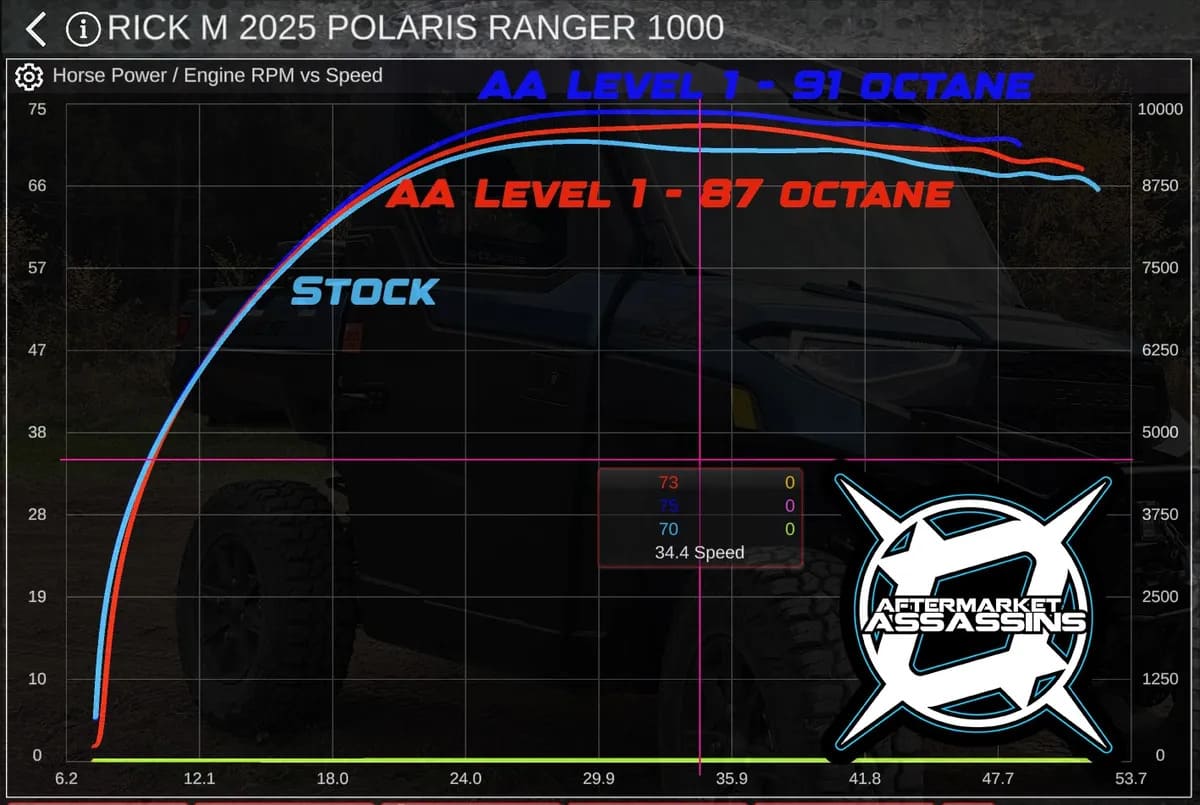

  • Level 1 87 Octane: This tune can be run on a bone stock Ranger on 87+ octane fuel. This tune adds +3 RWHP (4-5 crank HP) putting you at roughly 88 crank horsepower with just a flash! Add clutching and you are a huge 8-9rwhp above OEM! We would highly suggest our S3 clutch kit with this tune as it loads the Ranger better down low for torque, allows peak RPM to ramp up faster in the mid/high end, and has slightly higher peak RPM for better peak power. This tune can be run with an aftermarket exhaust without any issue, but our Level 2 tune is the best option for aftermarket exhaust as it's slightly richer for more power and less heat.

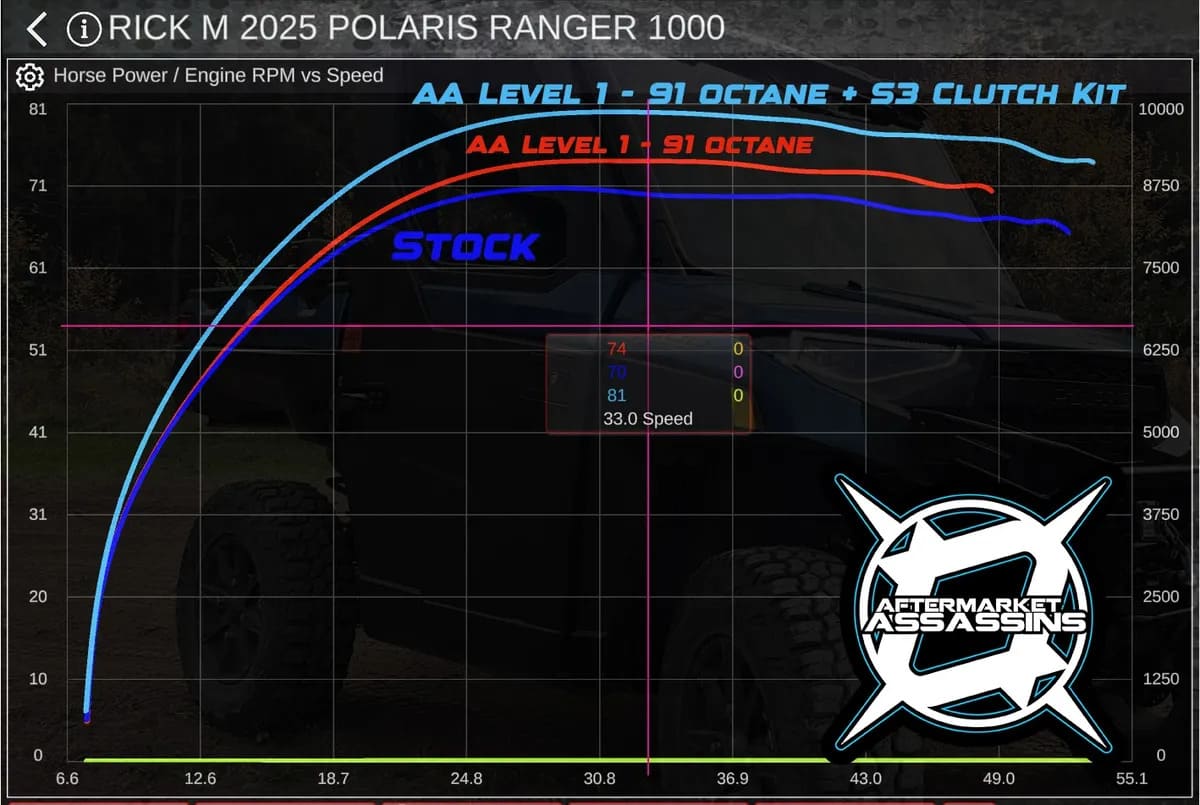

  • Level 1 91-93 Octane: This tune can be run on a bone stock Ranger on 91-93 octane fuel. This tune adds +5 RWHP (7-8 crank HP) putting you at roughly 90 crank horsepower with just a flash! Add clutching and you are a huge 10-11rwhp above OEM! We would highly suggest our S3 clutch kit with this tune as it loads the Ranger better down low for torque, allows peak RPM to ramp up faster in the mid/high end, and has slightly higher peak RPM for better peak power. This tune can be run with an aftermarket exhaust without any issue, but our Level 2 tune is the best option for aftermarket exhaust as it's slightly richer for more power and less heat.
  • Level 2 87+ Octane: This tune is developed for an Ranger with aftermarket exhaust on 87 or greater octane. We have fueling and timing added as possible due to the lower exhaust temps and higher flow. Power gains vary depending on exhaust, but usually we see a massive +8-10hp with our AA exhaust. Due to how these motors/tuning works, this tune should work with about any aftermarket exhaust, but was tested and designed with our AA Slip-On Exhaust.
  • Level 2 91-93 Octane: This tune is developed for an Ranger with aftermarket exhaust on 91-93 octane. We have fueling and timing added as possible due to the lower exhaust temps and higher flow. Power gains vary depending on exhaust, but usually we see a massive +10-12hp with our AA exhaust. Due to how these motors/tuning works, this tune should work with about any aftermarket exhaust, but was tested and designed with our AA Slip-On Exhaust.
• Looking for race fuel tunes? We were also, but unfortunately we found no real power increase by adding octane. Certainly a little extra octane is never a bad thing to keep your ECU from pulling timing based on engine knock, but we tried various attempts to make more power with no significant results.
• If you're unsure if your Ranger is an EVAP model or not, check your Emissions Control sticker located on the front driver's side frame rail above the shock. See pictures for location. Normally the ECU also has a sticker on it giving you/us this information.
• The drop down also asks if your Ranger has factory HVAC (air/heat) or the standard model without
• Why AA tunes over others? We have been tuning UTV's with CVT clutches for a long time, longer than almost anyone in our field going back to the 800 RZR. Tuning a CVT vehicle properly is not an easy task as you have so many variables at one time. We spend the time to wheel dyno(with actual UTV tires) correctly per modification, and have advanced ECU calibration and clutching knowledge to do so. Every change in horsepower can result in us changing clutching several times. We also develop most of our supporting mods so we know everything works correctly, and build parts to fit the vehicles needs. Lastly and honestly the most important; we then back up our results with real world data logging on local trails and our facility on 110 acres. It's this combination that truly makes the difference and why AA normally has a faster vehicle with the same or less rated tune horsepower. We left nothing on the table on the Ranger bolt-on parts, if others claim more power/gains for the same mods use caution in believing it!
• If you have any other needs in these tunes, or any concerns; please e-mail!
• Flashing your vehicle using the Tune Delivery Network
• Oh... and get ready for your Ranger to flat out rip!

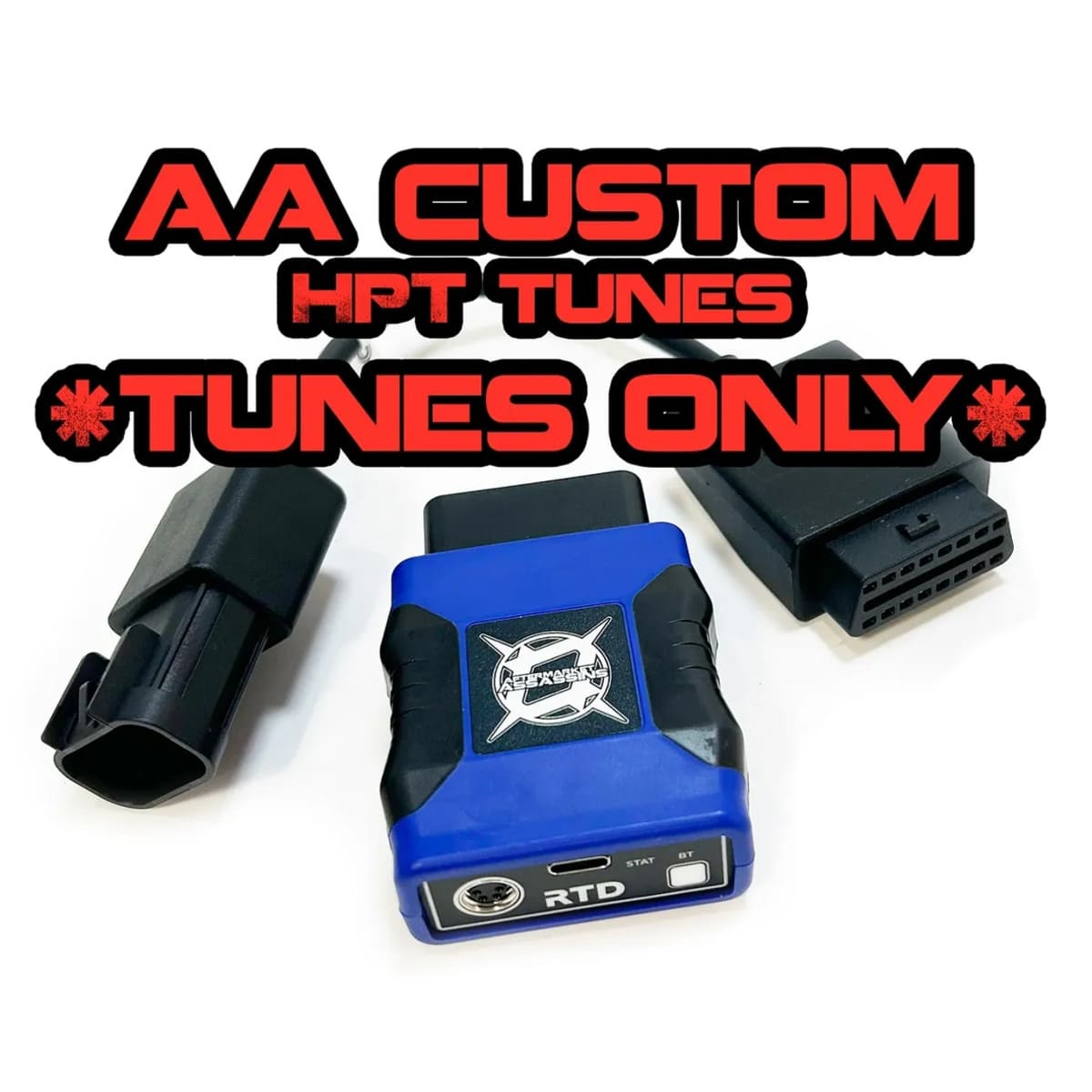

• These tunes are for customers that already have the HP Tuners Remote ECU Tuning Device for all 2025 Polaris Ranger XP 1000 models
