Trail Tech TTO Universal Temp Sensor

Trail Tech TTO Universal Temp Sensor

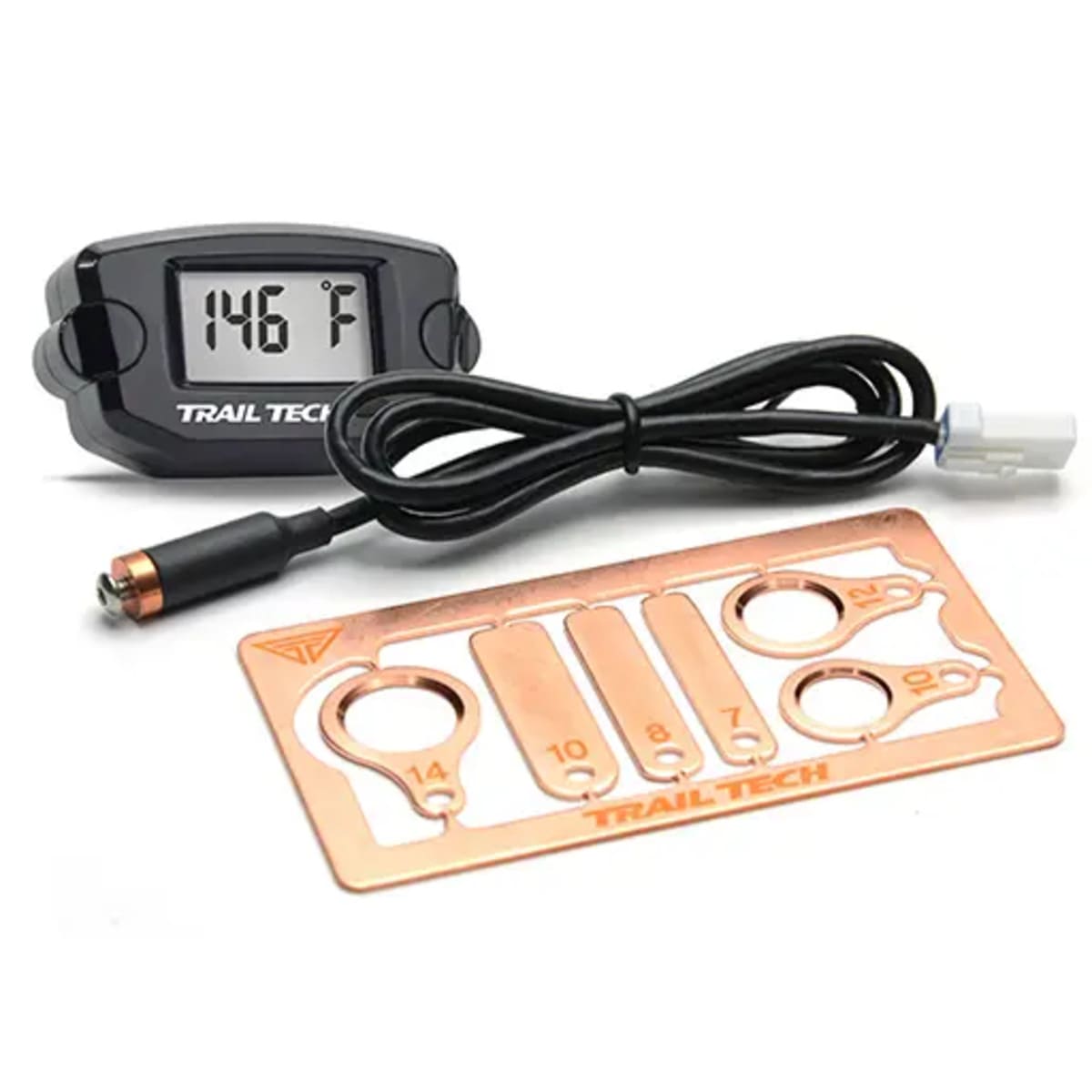

The Trail Tech Universal Temp Meter senses temperature on motorcycles, UTVs, ATVs, Snow Machines, and other applications where a minimal footprint, watertight integrity, and durability are desired.

The included radiator fin and cylinder head sensor assortment allow for the best option based on your application. After removing a sensor from the included array, they can be installed by pressing a radiator fin sensor between the fins of a radiator or replacing a spark plug crush washer with a cylinder head sensor. You can even capture ambient air temp by leaving the sensor wire exposed to the open air. This Universal Temp Meter is primarily designed for motor vehicles use, but it is also well suited for DIY applications such as greenhouses, refrigerators, and computers.

Features:

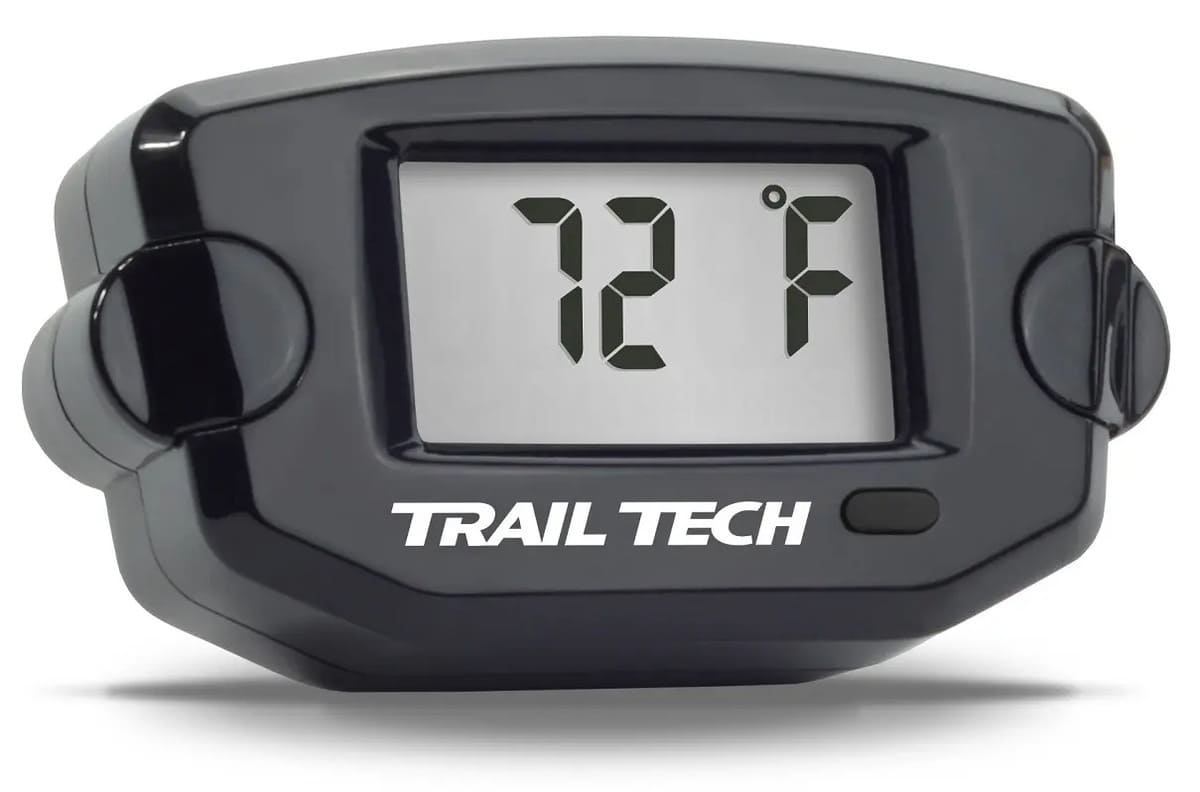

• Display: Displays ºF/ºC temperature for whatever the copper sensor is attached to. Monitor the max temperature reached and press the front button to see the time-of-day clock.

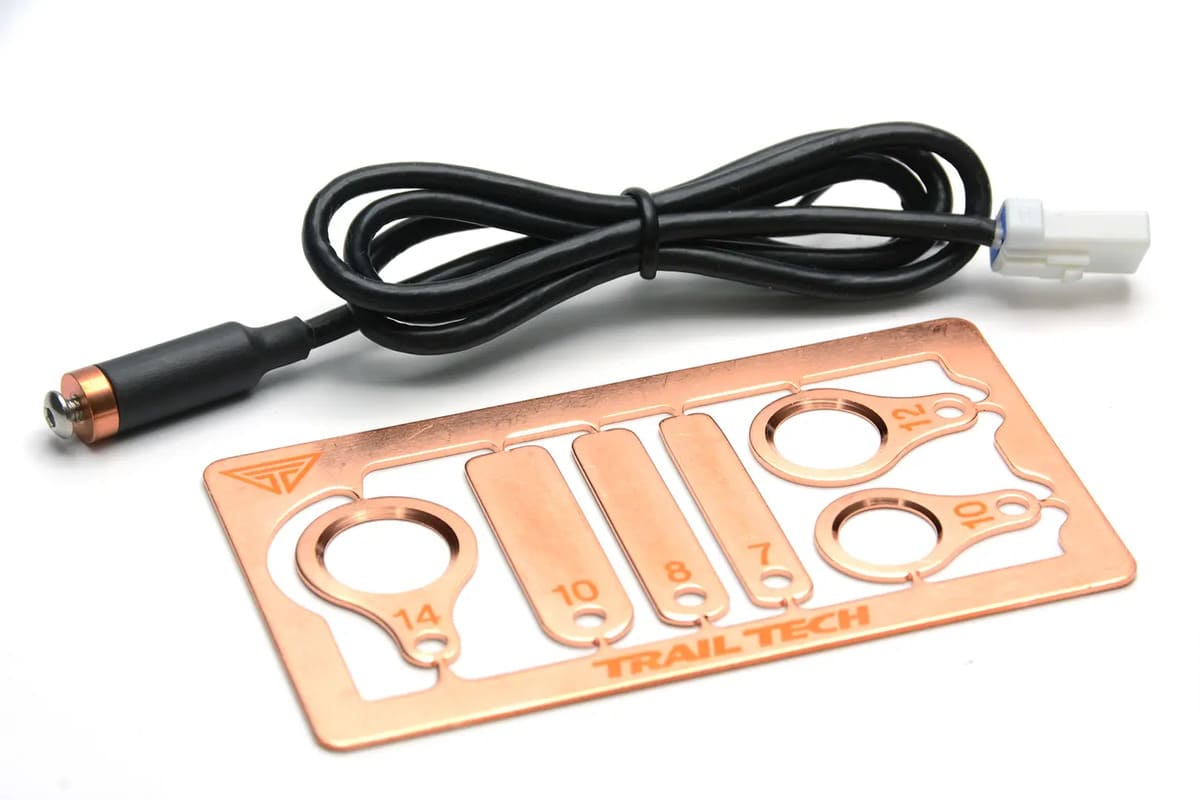

• Included Sensor Card: Choice of 6 sensor heads included in the kit. Remove chosen head from the card, then fasten it to the sensor wire with a screw. It is possible to work with homemade DIY copper heads for various uses.
• For best performance, use the provided copper sensors.
• Sensor Choices: Vehicle coolant sensor heads press into radiator fins (7, 8, and 10mm), or choose an engine ring sensor that replaces a head bolt or spark plug crush washer (10, 12, and 14mm).
• Best Use: Great for monitoring the temperature of UTVs, street, adventure, and off-road motorcycles.
• Works great on other vehicles like farm equipment. Use this meter wherever you need to monitor the temperature on your application.
• Install: Comes with VHB tape for a quick head unit install or mechanically fastens with M4 (#6) bolts (not included).
• Battery: The internal battery is Not replaceable! Ultra-low power design of the product ensures a lifetime of 5+ years. Complete epoxy encapsulation provides the best weather and anti-vibration resistance for the harshest applications.

Specifications:

• Easy to read LCD display and an ultra-thin design.

• The LCD display lets you to easily view all gauge readings regardless of the angle or lighting conditions.

• Surface mount for easy install, comes with double sided VHB tape or can be bolted on

• Operating Temperature: -20°C/-4°F to 75°C/167°F

• Storage Temperature: -40°C/-40°F to 75°C/167°F

Fitment:

Arctic Cat

• 2000-2025 ALL UTV
• 2000-2025 ALL SNOW
• 2000-2025 All ATV

Beta

• 2024-2025 450RX
• 2024-2025 450RC
• 2024-2025 300X
• 2024-2025 300RX
• 2024-2025 250X
• 2019-2025 200RR
• 2018-2025 350RR-S
• 2018-2025 125RR
• 2017-2025 500RR-S
• 2017-2025 430RR-S
• 2017-2025 390RR-S
• 2017-2019 125 RR-S
• 2015-2025 Xtrainer
• 2015-2025 480RS
• 2015-2025 480RR
• 2015-2025 430RR
• 2015-2025 390RR
• 2015-2025 250RR
• 2015-2016 390RS
• 2015 430RS
• 2014-2017 350RR
• 2014-2016 500RS
• 2013-2025 300RR
• 2012-2013 350RS

BMW

• 2000-2025 ALL Street
• 2000-2025 ALL ADV

Can-Am

• 2014-2025 Maverick
• 2000-2025 ALL UTV
• 2000-2025 All SNOW
• 2000-2025 All ATV

Ducati

• 2000-2025 ALL Street
• 2000-2025 ALL ADV

Gas Gas

• 2022-2025 ES700
• 2021-2023, 2003-2015 MC125
• 2021-2023, 2003-2011 MC250
• 2021-2023 MC250F
• 2021-2023 EX450F
• 2021-2023 EX350F
• 2021-2023 EX300
• 2021-2023 EX250F
• 2021-2023 EX250
• 2020-2023 MC450F
• 2020-2023 MC350F
• 2020-2022 XC200
• 2017 XC300R
• 2012-2022 XC300
• 2012-2022 XC250
• 2010-2012 EC250 Four Stroke
• 2003-2025 EC300
• 2003-2025 EC250
• 2003-2012 EC200
• 2003-2011 MC300
• 2003-2011 EC125
• 2003-2009 EC450 4 Stroke
• 2002-2003 EC400 4Stroke

HARLEY-DAVIDSON

• 2021-2025 Pan America

Honda

• 2021, 2003-2019 CRF230F
• 2021-2025, 2019 CRF450RWE
• 2021-2025 CRF250F
• 2021-2023 CRF450RL
• 2021-2023 CRF300L / Rally
• 2021-2022 CRF300L
• 2021-2022 CRF300 RALLY
• 2021 TRAIL 125 ABS
• 2021 CRF250 RALLY
• 2020 UTV
• 2020 CRF250L Rally
• 2019-2020 CRF450L
• 2019 Talon
• 2018-2025 CRF250RX
• 2017-2025 CRF450RX
• 2017-2019 TRX 420 TM
• 2017-2019 TRX 420 FM
• 2017-2019 CRF250L / Rally
• 2016, 2007-2014 TRX 420TM
• 2016, 2007-2014 TRX 420TE
• 2016-2025 Africa Twin
• 2014-2025 CRF125F
• 2014-2019 CRF125FB
• 2013-2016 CRF250L
• 2012-2014, 2009 TRX 400X
• 2012-2014, 2006-2009 TRX 450ER
• 2010-2025 CRF250R
• 2009-2025 CRF450R
• 2009-2019 TRX 420FA
• 2009-2019 TRX 250X
• 2009 TRX 300X
• 2008-2011 CRF230L
• 2008-2009 TRX 700XX
• 2007-2019 TRX 420FE
• 2007-2016 TRX 420FM
• 2007-2016 TRX 420 all
• 2005-2025 CRF450X
• 2004-2018 CRF250X
• 2004-2009 TRX 450R
• 2004-2007 TRX 400FGA
• 2004-2007 TRX 400FA
• 2003-2019 CRF150F
• 2002-2025 Ruckus
• 2002-2014 TRX 250TM
• 2002-2014 TRX 250TE
• 2002-2008, 2000 TRX 300EX
• 2002-2006 TRX 350TM
• 2002-2006 TRX 350TE
• 2002-2006 TRX 350FM
• 2002-2006 TRX 350FE
• 2002-2004 TRX 450FM
• 2002-2004 TRX 450FE
• 2001-2009 TRX 300 all
• 2001-2008 TRX 250EX
• 2001 TRX 450ES
• 2001 TRX 300
• 2000-2025 XR650L
• 2000-2025 ALL UTV
• 2000-2025 ALL Street
• 2000-2025 All ATV
• 2000-2014 TRX 400 all
• 2000-2009 TRX 450 all
• 2000-2008 TRX 400EX
• 2000-2006 TRX 350 all
• 2000-2003 TRX 400FW
• 2000-2001 TRX 350
• 2000-2001 TRX 250
• 2000 TRX 450
• 2000 TRX 300FW

Husaberg

• 2014, 2004-2011 FE450
• 2013-2014 TE250
• 2013-2014 FE501
• 2013-2014 FE250
• 2013 FE350
• 2012-2014 TE300
• 2011 FE570S
• 2010-2011 FX450
• 2010-2011 FS570
• 2010-2011 FE390
• 2009-2011 FE570
• 2008, 2004-2005 FS450
• 2007 FS550
• 2004-2008 FS650
• 2004-2008 FE650
• 2004-2008 FE550
• 2004-2005 FC550
• 2004-2005 FC450

KTM

• 2024-2025, 2009-2013, 2007 450XCF-W
• 2024-2025, 2000-2005 300EXC
• 2023-2025, 2017-2019 250EXC-F
• 2023-2025, 2006-2019 250XC
• 2023-2025, 2005, 2000-2003 250EXC
• 2023-2025 450 EXC-F
• 2023-2025 150EXC
• 2022-2023 125XC TPI
• 2021-2025 125XC
• 2020-2025 500EXC-F Six Days
• 2020-2025 150XC-W TPI
• 2020 450SX-F Factory Edition
• 2020 300XC-W TPI Six Days
• 2020 300XC-W TPI Erzbergrodeo
• 2019-2025 300XC-W TPI
• 2019-2023 300XC TPI
• 2019-2023 250XC TPI
• 2019-2022 450 EXC
• 2019 300i XC-W
• 2018-2025 250XC-W TPI
• 2018 300xc
• 2018 300 XC-W
• 2017-2023, 2000-2015 250SX
• 2017-2019 150XC-W
• 2017-2018, 2010-2011, 2003-2007 450EXC
• 2016-2022 Freeride350R
• 2016-2022 Freeride250R
• 2014-2016 450XC-W
• 2014-2015, 2005-2009 450SMR
• 2013-2025, 2006-2009 450XC-F
• 2012-2025 500EXC-F
• 2012-2025 350XCF-W
• 2012-2025 350EXC-F
• 2012-2022 500XCF-W
• 2011-2025, 2007-2009 250XC-F
• 2011-2023 350XC-F
• 2011-2023 350SX-F
• 2010-2011 530EXC
• 2010 690SMC
• 2009-2023 150SX
• 2009-2023 125SX
• 2009-2011 530XCF-W
• 2009-2010, 2007 400XCF-W
• 2009-2010, 2003-2004 450SX
• 2009-2010 505SX
• 2008-2025 690 Enduro R
• 2008-2010 525XC
• 2008-2010 450XC
• 2008-2009 530EXC-R
• 2008-2009 505SX-F
• 2008-2009 450EXC-R
• 2008 530XCR-W
• 2008 505XC-F
• 2008 450XCR-W
• 2007-2016 250XCF-W
• 2007 525XCF-W
• 2006-2022 450SX-F
• 2006-2019 300XC-W
• 2006-2019 250XC-W
• 2006-2017 300XC
• 2006-2016 200XC-W
• 2006-2010 525XC-F
• 2006-2007 560SMR
• 2006-2007 200XC
• 2005-2023 250SX-F
• 2005 525SMR
• 2003-2007 525EXC
• 2003-2006 525SX-F
• 2003-2005 525SX
• 2003-2005 525MXC
• 2003-2005 450MXC
• 2001-2002 520MXC
• 2001-2002 400MXC
• 2000-2025 ALL Street
• 2000-2025 ALL ADV
• 2000-2006 400EXC
• 2000-2005 300MXC
• 2000-2005 250MXC
• 2000-2005 200MXC
• 2000-2005 200EXC
• 2000-2002 520SX
• 2000-2002 520EXC
• 2000-2002 400SX
• 2000-2002 380SX
• 2000-2002 380MXC
• 2000-2002 380EXC

Polaris

• 2000-2025 ALL UTV
• 2000-2025 ALL SNOW
• 2000-2025 All ATV

Reiju

• 2020-2025 MR Ranger
• 2020-2025 MR Racing
• 2020-2025 MR Pro
• 2020-2025 6 days

SHERCO

• 2021-2023 Pan America

Ski Doo

• 2000-2025 ALL SNOW

Suzuki

• 2022-2025 DR650s
• 2022-2025 DR-Z125L
• 2020-2025 UTV
• 2020-2022 VanVan200
• 2020-2022 DRZ400
• 2016-2025 RMX450Z
• 2013-2025 DR200S
• 2010-2016 RMX450
• 2006-2025 RM-Z450
• 2005-2022 DR-Z 400SM
• 2004-2025 RM-Z 250
• 2003-2007 DRZ 400E
• 2001-2025 SV650
• 2001-2008 RM250
• 2001-2007 DR-Z 250
• 2000-2025 DR650
• 2000-2025 ALL UTV
• 2000-2025 ALL Street
• 2000-2025 All ATV
• 2000-2025 ALL ADV
• 2000-2023 DR-Z 400S
• 2000-2018 DR200
• 2000-2008 RM125
• 2000-2004 DR-Z 400

SWM

• 2022 SM500R
• 2022 RS300R
• 2022 RE500R
• 2022 RE300R

Textron

• 2018-2019 WildCat XX
• 2018-2019 WildCat X LTD
• 2018-2019 WildCat X
• 2018-2019 WildCat Trail XT
• 2018-2019 WildCat Trail LTD
• 2018-2019 WildCat Trail
• 2018-2019 WildCat Sport XT
• 2018-2019 WildCat Sport LTD
• 2018-2019 WildCat 4X LTD
• 2018-2019 Stampede X
• 2018-2019 Stampede 4X
• 2018-2019 Stampede 4
• 2018-2019 Stampede
• 2018-2019 Prowler Pro XT
• 2018-2019 Prowler Pro
• 2018-2019 Prowler 500
• 2018-2019 Havoc X
• 2000-2020 ALL UTV

Triumph

• 2000-2025 ALL Street
• 2000-2025 ALL ADV

Yamaha

• 2020-2025 YZ125X
• 2019-2025 TT-R230
• 2019-2025 Tenere 700
• 2018-2025 Kodiak 450
• 2017-2025, 2000-2010 Wolverine
• 2017-2025 YXZ1000
• 2017-2025 Kodiak 700
• 2016-2023 YZ450FX
• 2016-2023 YZ250X
• 2016-2017 Kodiak
• 2015-2023 YZ250FX
• 2010-2025 Super Tenere
• 2010-2019 Venture
• 2010-2011 YFZ 450X
• 2009 Grizzly 500
• 2008-2025 XT250
• 2008-2025 Grizzly 700
• 2008-2018 Grizzly 550
• 2008-2015 WR250R
• 2008-2014 Raptor 250
• 2008-2012 Grizzly 450
• 2008-2011 WR250x
• 2006-2025 Raptor 700
• 2005-2025 YFZ 450R
• 2005-2018 TTR230
• 2005-2014, 20014 Raptor 350
• 2004-2006 Bruin 350 4wd
• 2004-2006 Bruin 350 2wd
• 2004 YFZ 450
• 2003-2025 WR450F
• 2003-2023 YZ450F
• 2001-2025 YZ250F
• 2001-2025 WR250F
• 2001-2005 Raptor 660
• 2001-2004 Bear Tracker 2wd
• 2001-2002 WR426F
• 2000-2025 TW200
• 2000-2025 TTR125
• 2000-2025 All UTV
• 2000-2025 ALL Street
• 2000-2025 ALL SNOW
• 2000-2025 All ATV
• 2000-2023 YZ250
• 2000-2023 YZ125
• 2000-2006 TTR250
• 2000-2006 Blaster
• 2000-2006 Big Bear 4wd
• 2000-2006 Big Bear 2wd
• 2000-2006 Banshee
• 2000-2004 Warrior
• 2000-2004 TTR225
• 2000-2002 YZ426F
• 2000-2001 Grizzly
• 2000 WR400F
