Superwinch 4500 LBS 12V DC 15/64in x 50ft Steel Rope Terra 4500 Winch - Gray Wrinkle
SKU: TN-1145260
1 5

Superwinch 4500 LBS 12V DC 15/64in x 50ft Steel Rope Terra 4500 Winch - Gray Wrinkle

SKU: TN-1145260
$370.00
Custom Icon
Earn $7 Fueled Cash
This item ships FREE

Superwinch 4500 LBS 12V DC 15/64in x 50ft Steel Rope Terra 4500 Winch - Gray Wrinkle

The Superwinch Terra 4500 is the standout performer in powersports ATV/UTV winching. It’s not a claim we make lightly and we back it up with stronger motors, wider gears, beefed up drums and durable steel cable. Terra 4500 winches are the industry’s first truly sealed utility terrain vehicle winch assembly. All seals on the entire winch from the outmost end of the motor to the ergonomic free spool control knob all meet the IP67 rating. The 10’ handheld remote and the solenoid are sealed at this same tough standard which ensures to keep out water, mud, snow and dust.

Features:
  • Rated line pull of 4,500 lbs

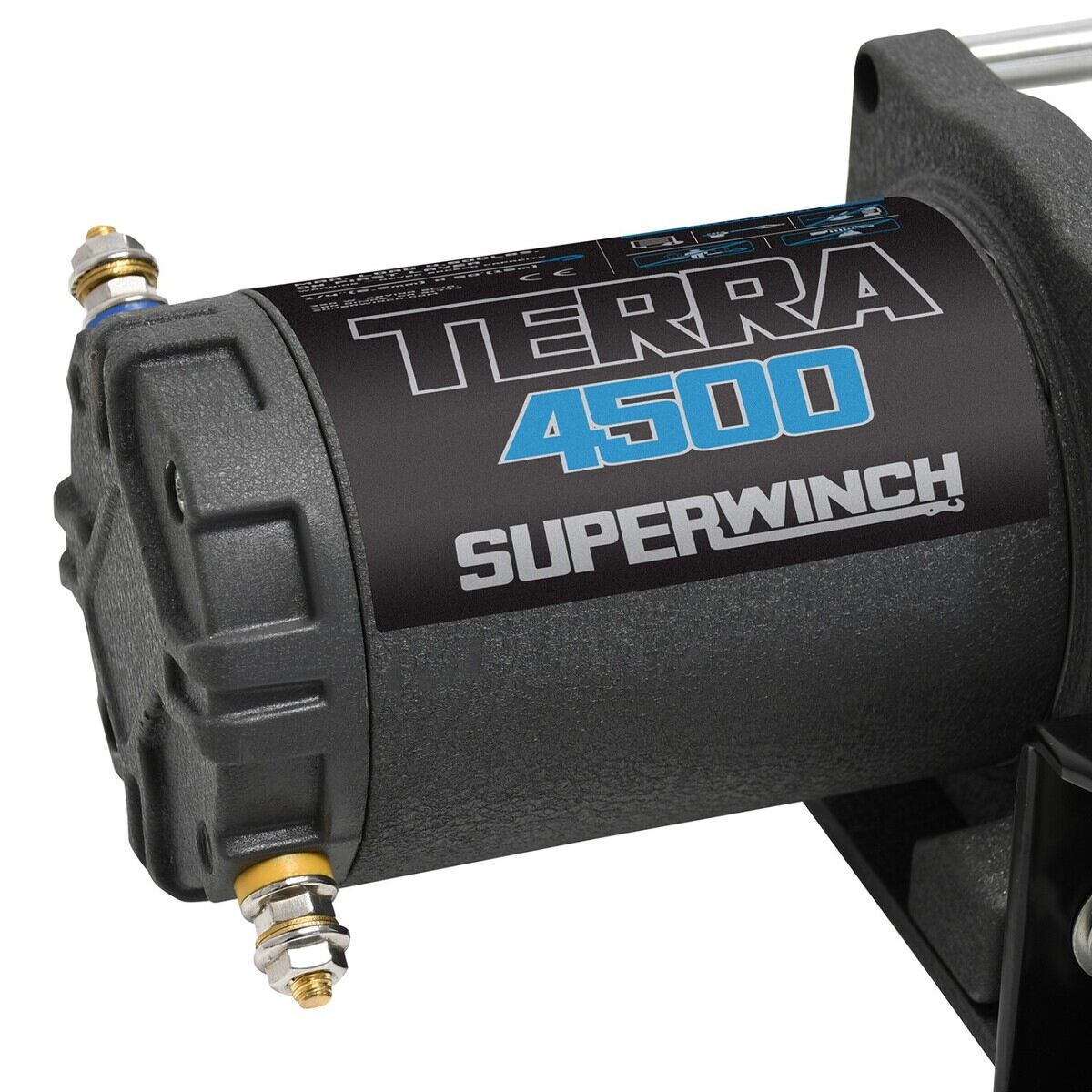

  • 1.8 HP permanent magnetic motor
  • 3-Stage planetary gearing with 198:1 ratio
  • Sealed solenoid with circuit breaker

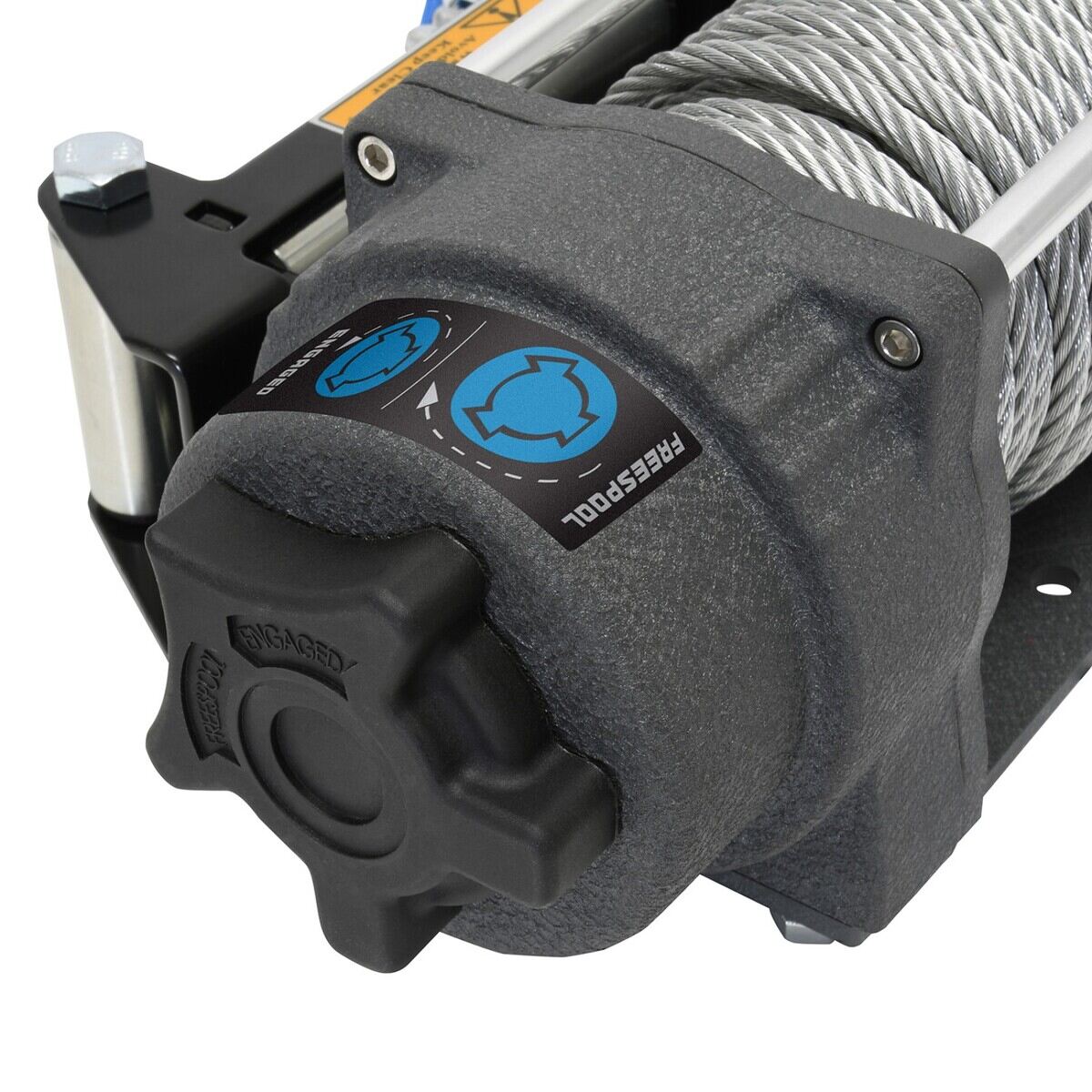

  • Cam-style clutch control knob
  • Wire rope measures 15/64in. x 50ft.
  • Heavy-duty, clevis pinned, latched hook
  • 4-way roller fairlead
  • 10ft. rugged handheld remote control with handlebar mounted rocker switch

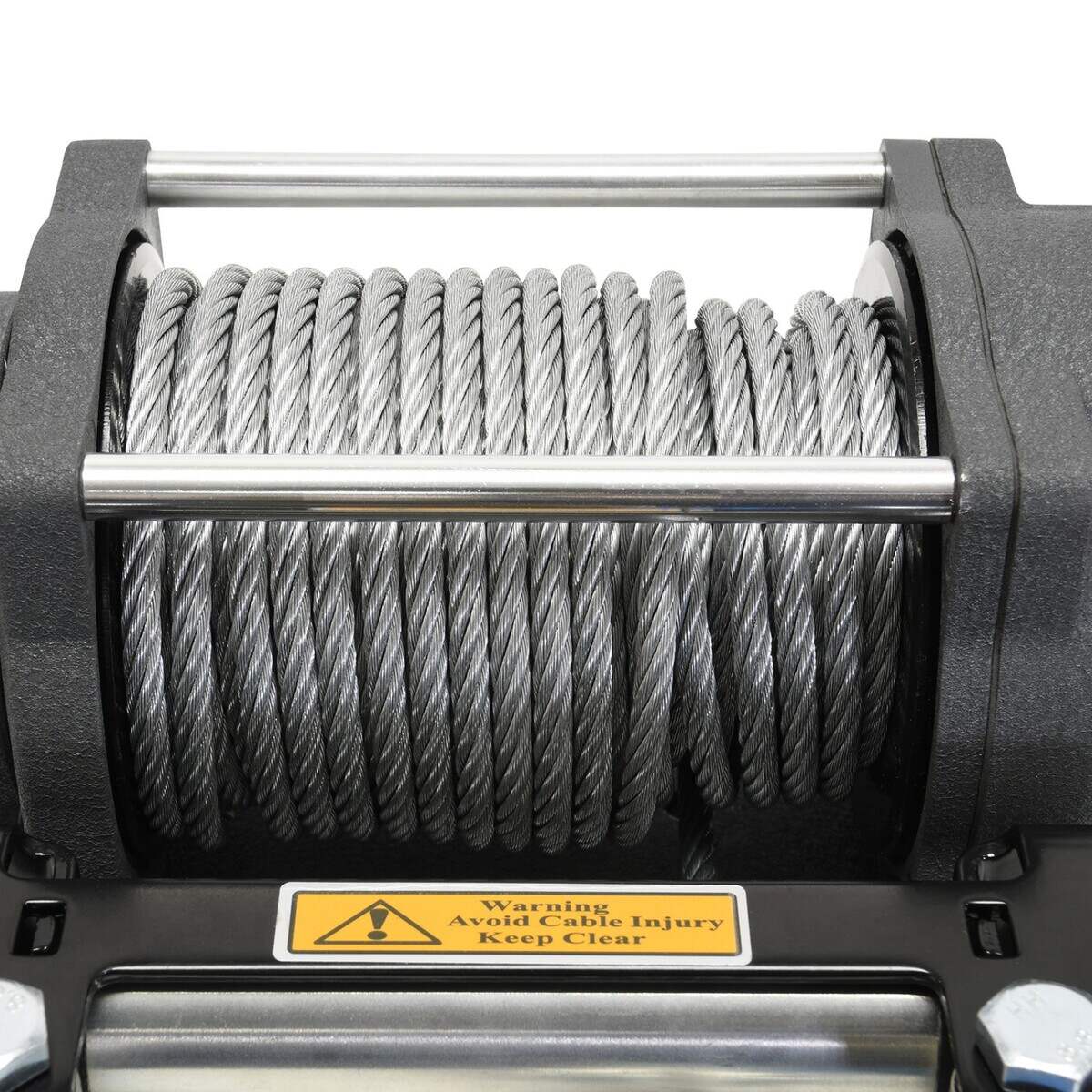

  • Wide drum adds rope capacity

Specifications:

Brake Automatic, 100% Load Holding
Clutch
Free-Spooling, Ergonomic Control
Fairlead Heavy Duty 4-Way Roller
Gear Ratio 198:1
Gearing 3-Stage Planetary
Height 0
Hook
Heavy-Duty, Clevis Pinned Latched
Length 0
Motor Sealed 1.8 HP Permanent Magnet
Mounting Bolt Pattern 3.0in x 4.87in (76mm x 124mm)
Rated Line Pull 4,500 lbs (2041.2 kg)
Remote Sealed Hand-Held with 10ft cord
Rope Steel Wire 15/64in x 50ft
Solenoid Sealed Solenoid, Circuit Breaker Protected
Warranty Limited Lifetime Mechanical, 3 Year Limited Electrical
Weight 0
Width 0
