Sector Seven Sawtooth with Universal Clamp

Sector Seven Sawtooth with Universal Clamp

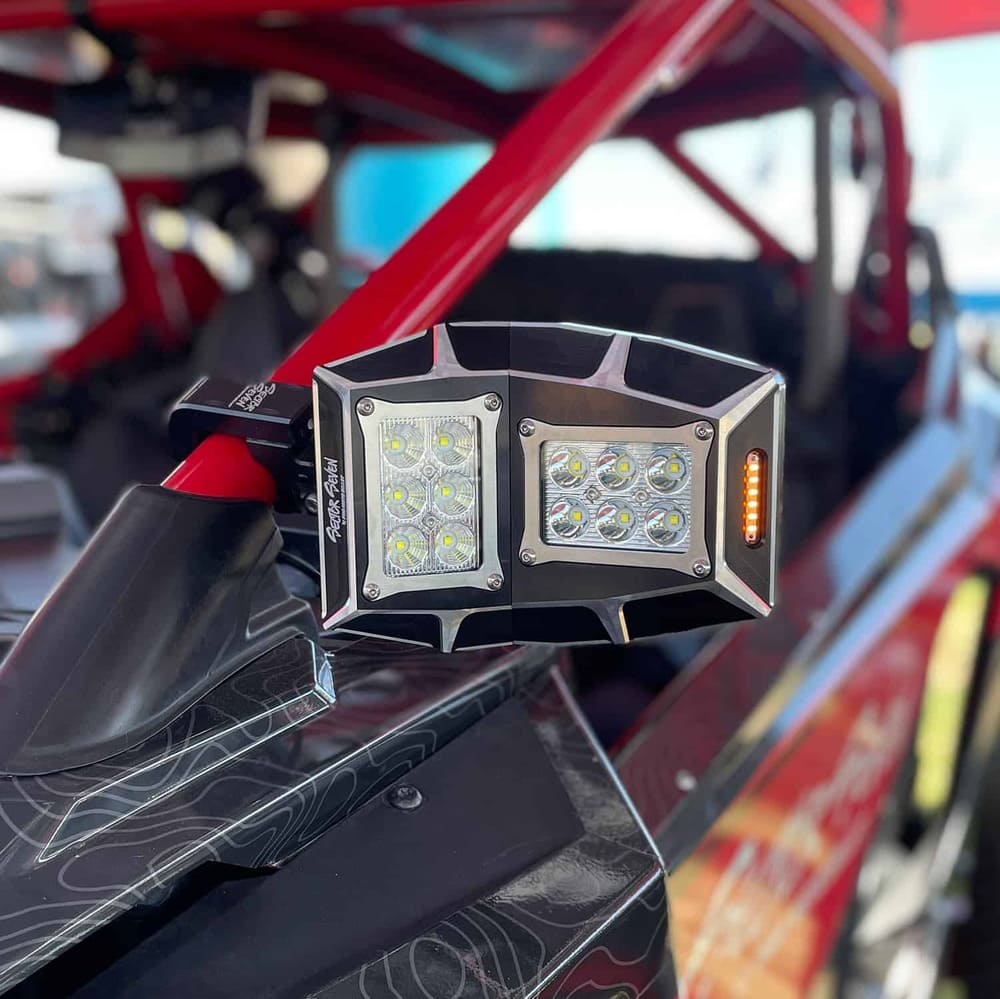

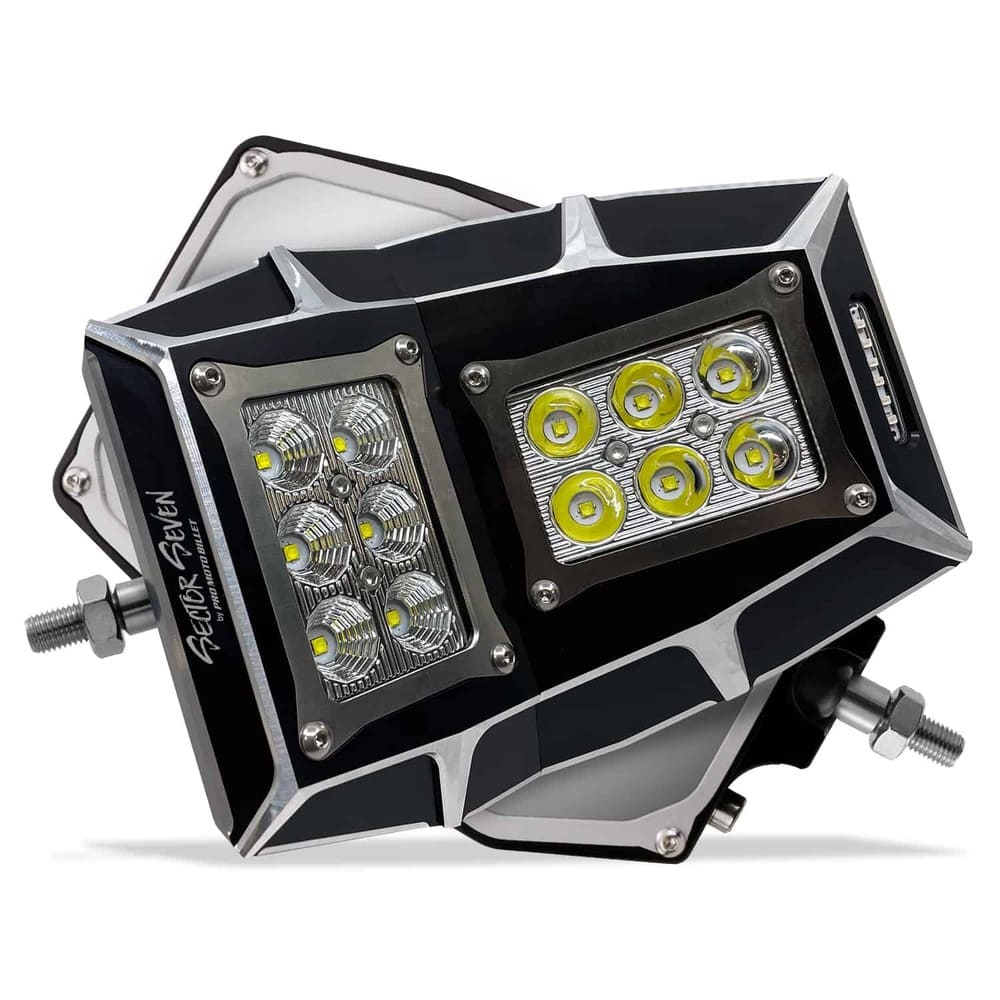

Sector Seven Sawtooth LED light mirrors will revolutionize the way you see the world, day and night! The ultimate upgrade to help you light up a 210-degree field of vision in front and convex mirrors for maximum rear view. Amber LED Side Marker Lights integrated into the CNC machined 6061 billet aluminum provide superior strength and toughness, with removable bezel that can be color coated. Adjustable break away action lets you determine arm strength, while the ball joint adjustable mirror enables adjustment without chance of vibration. With 180-degree rotation to assist in rear illumination, SAWTOOTHS are a versatile, superior light mirror combination. Navigating tight terrain has never been so easy.

Features:

• 8,000 Raw lumens of light

• Angular design provides 210-degree field of vision

• Amber LED Side Marker Lights

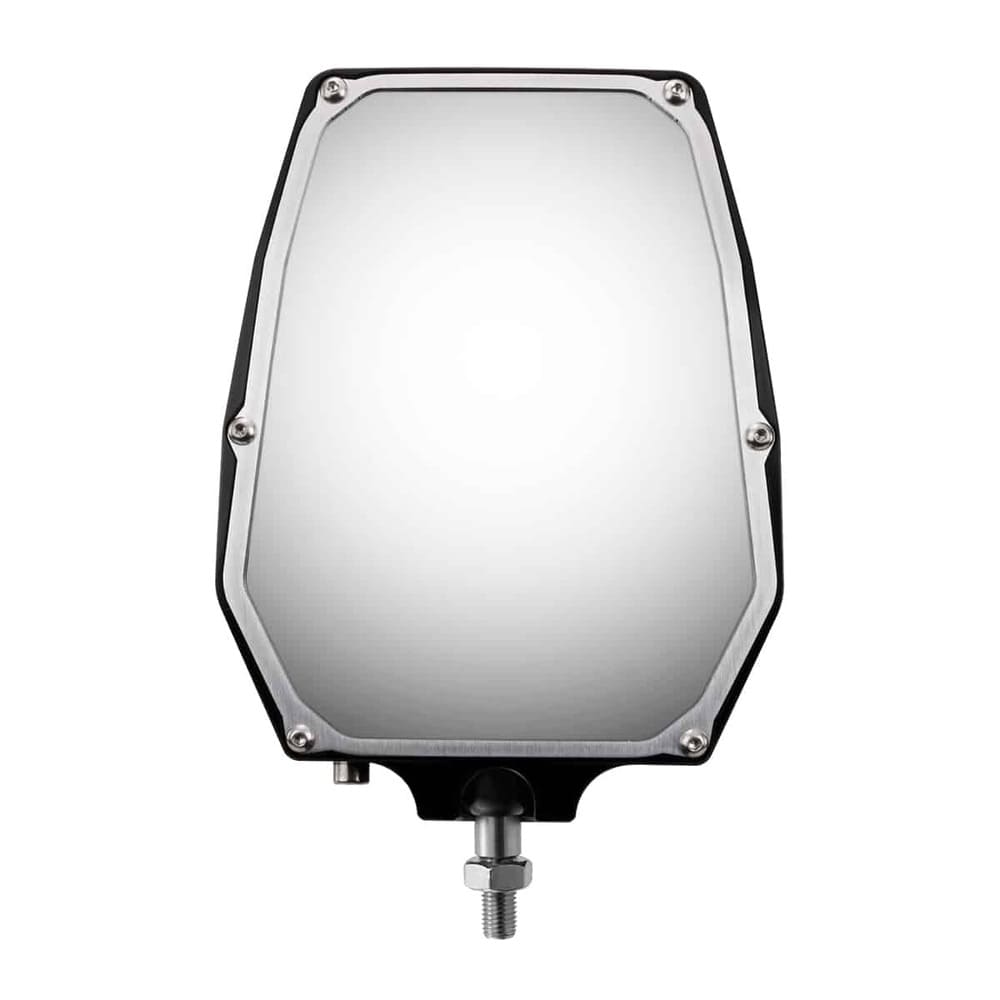

• Convex mirror for maximum rear view

• 3-wire open lead for easy wiring

• Adjustable break away action

• CNC Machined from 6061 billet aluminum

• Removable bezel for color coating

• Made in U.S.A.

Specifications:

• Size: 8.8″L x 5.5″W x 3″H

• Weight: 3.6 lbs.

• Optics Type: Flood

• Watts: 120w

• Amp Draw: 8.8 amp at 14.4 volts

• Peak Intensity: 20,268 cd

• Raw Lumens: 4,000/ea. 8,000/pair

• Beam Distance: 284 m

• Illuminance: 21.76 lux

• Voltage: 12v DC

Sawtooth with M10-1.25 Threaded Ball Mount:

• Weight: 7.95 lbs

• Dimensions: 10.75 × 7.0 × 6.25 in

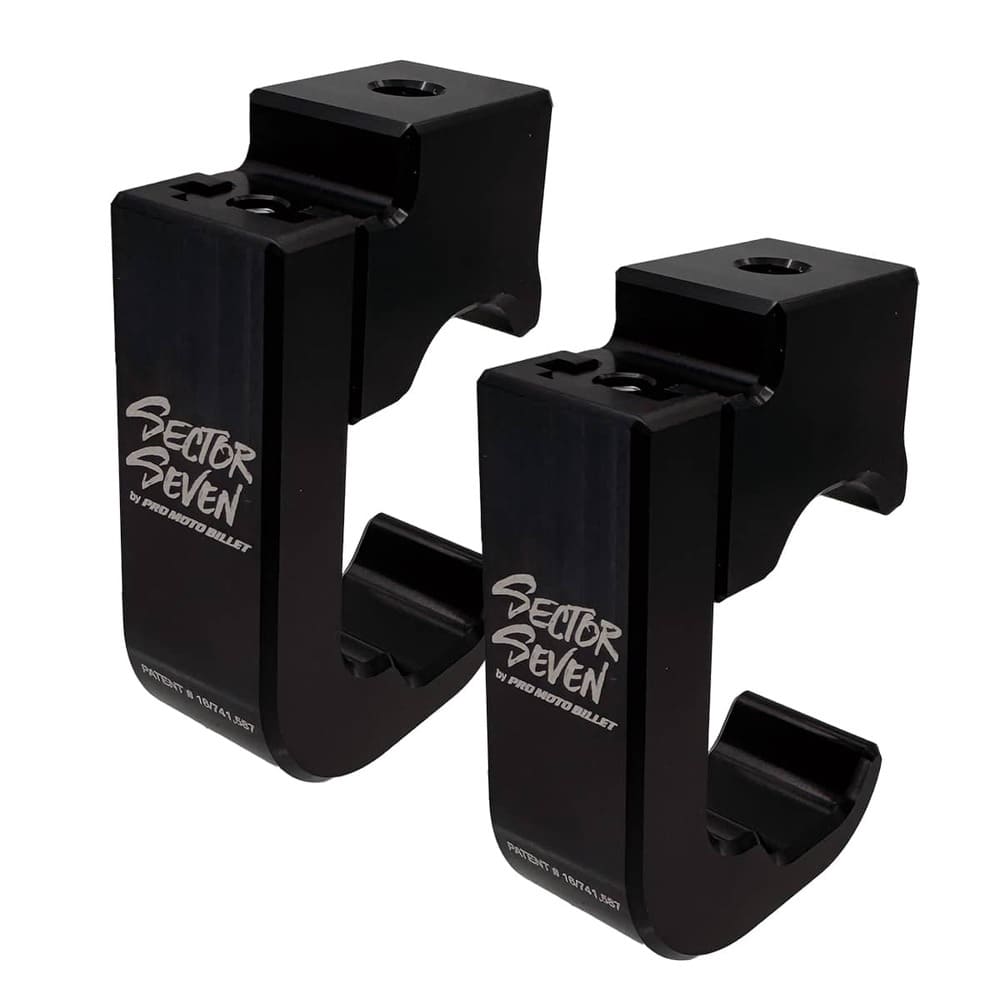

Threaded Universal Clamps (1 1/4″-2″):

• Weight: 1.05 lbs

• Dimensions: 8.75 × 5.75 × 1.13 in

Note:

• Universal Wiring Harness and Mounts Sold Separately.

Installation Instructions:

• S7-ML-004.pdf
