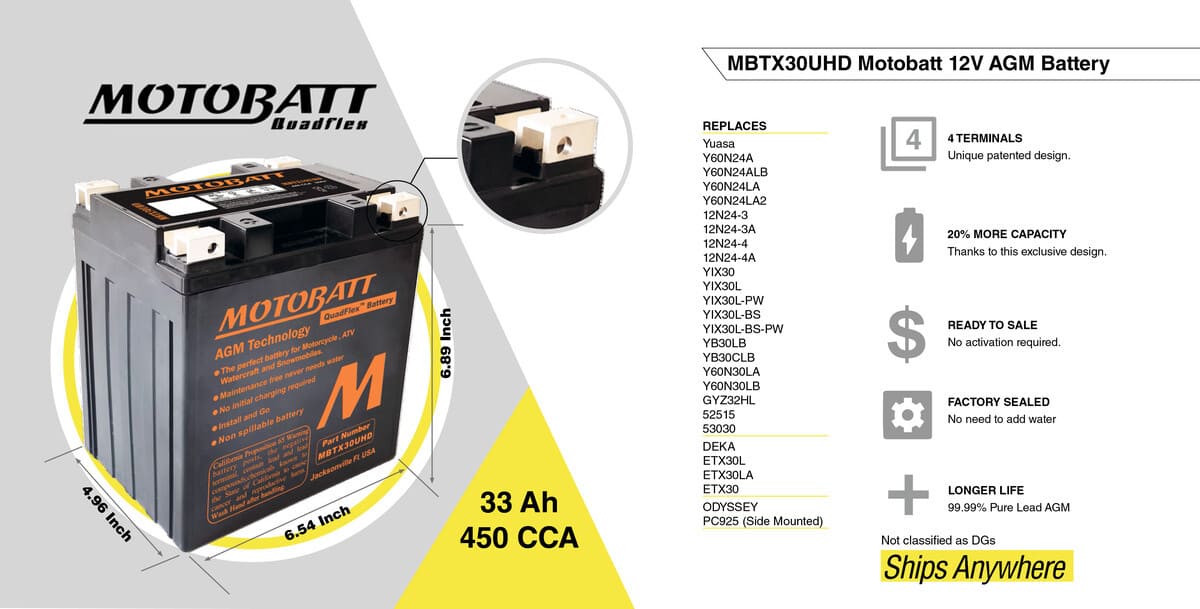

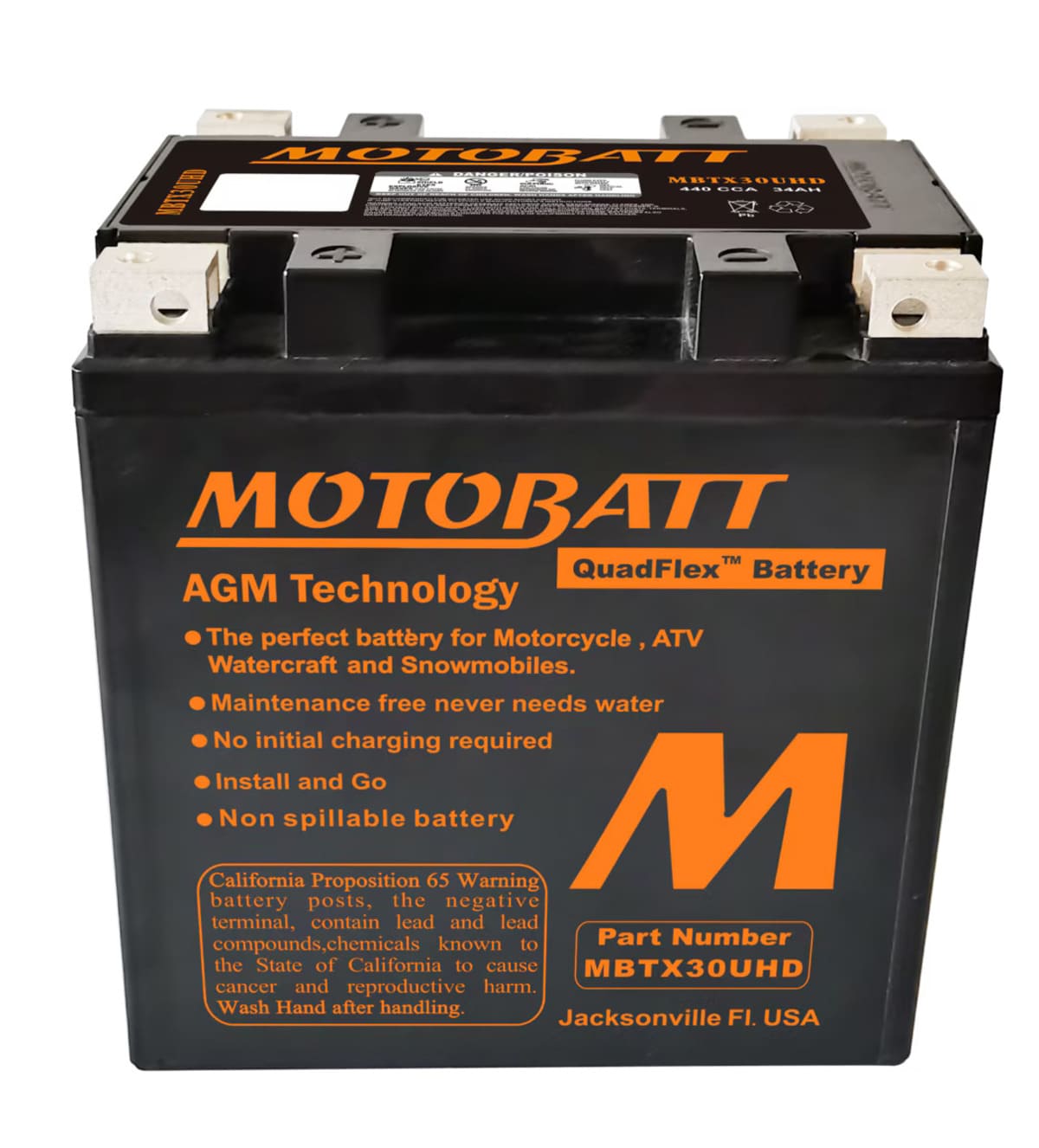

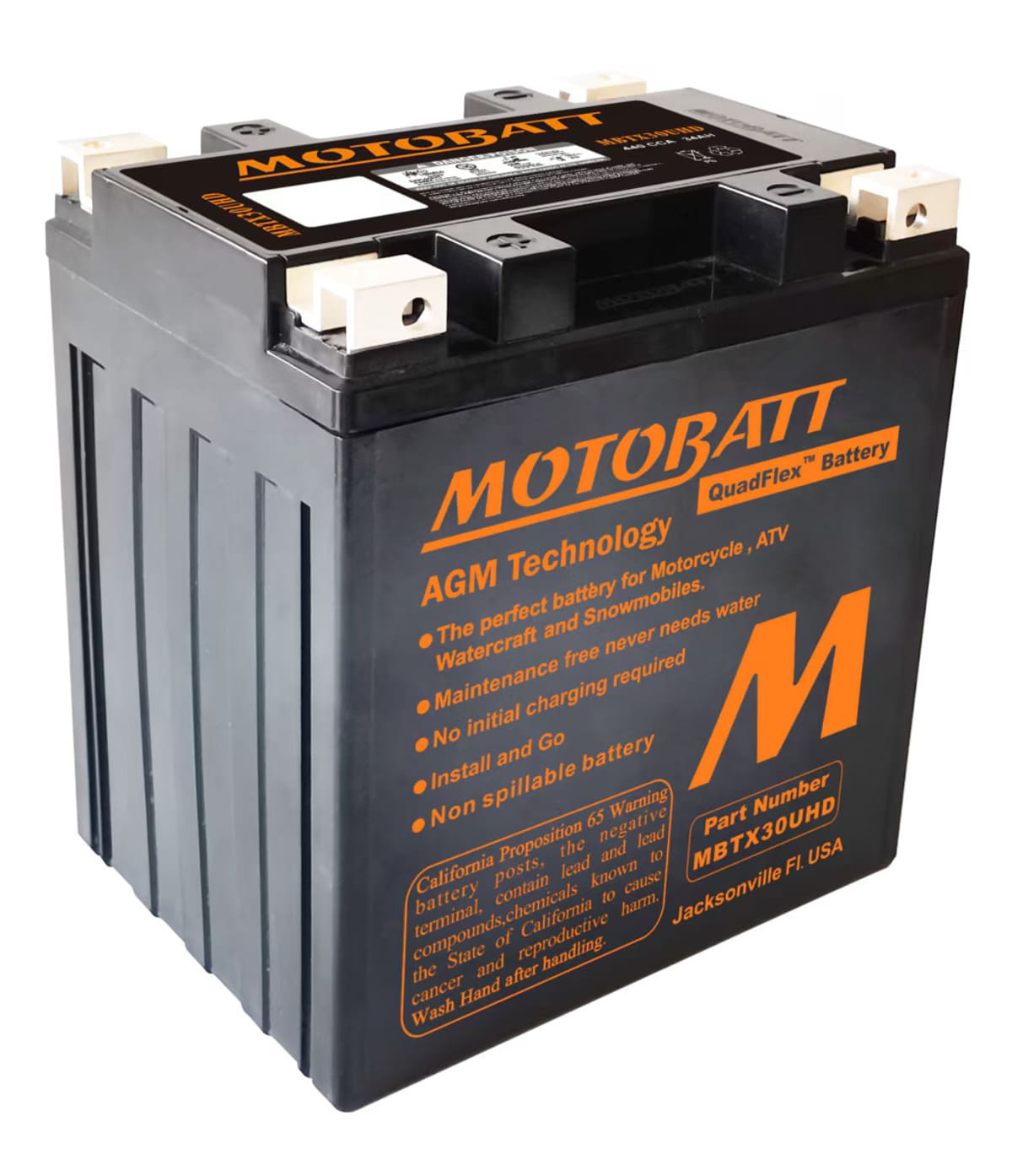

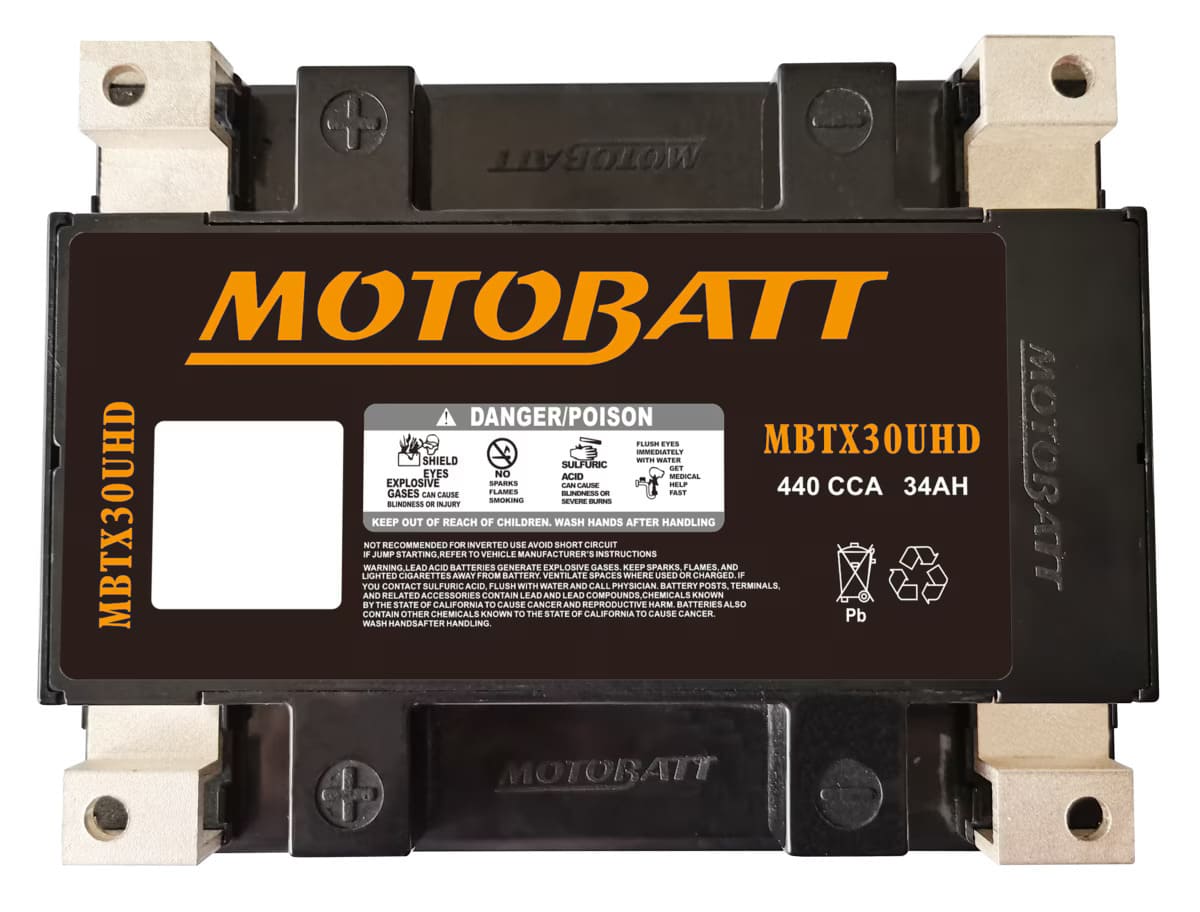

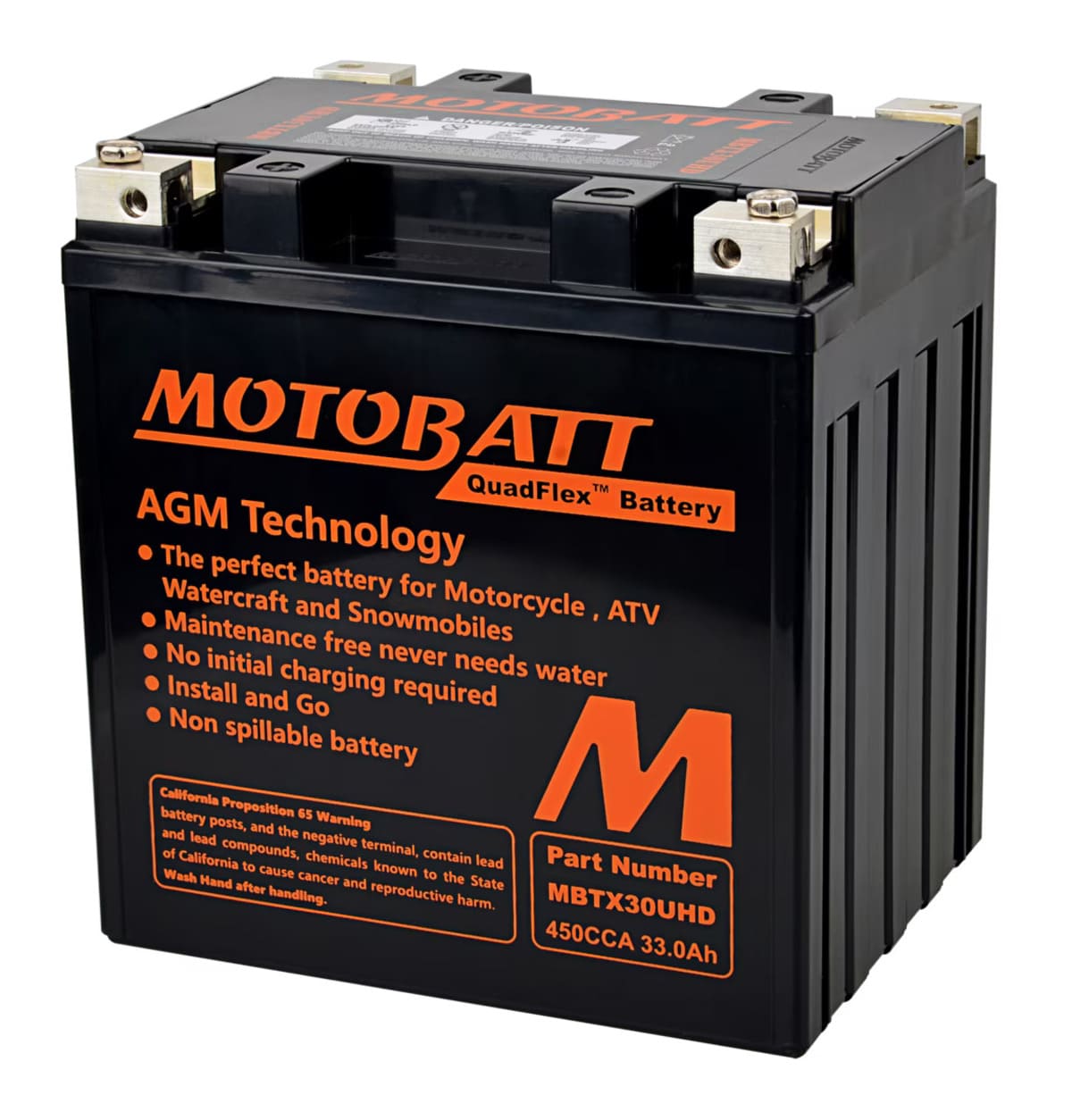

Motobatt 12V AGM Battery - MBTX30UHD

Motobatt 12V AGM Battery - MBTX30UHD

Motobatt Quadflex offers the best balance between AH (ampere hours) and CCA (Cold Cranking Amps -18C). Achieving this by increasing the size of the internal plates, by utilizing the unused space found in other batteries.

This is made possible through our world wide patented innovated cell connection system. Additionally, we enhance the thickness of the grid, the density of the paste, and the weight (content) of the active material to maximize the capacity allowed by its size. Revolutionary to the Battery Market.

Features:

• Power Experience up to 30% more capacity and power with the same size as competitor batteries, thanks to its exclusive design

• Safe No need to add acid and risk any accidental spillages

• Durable Thanks to its technology and high quality AGM it is extremely resistant to vibrations or weld breakages

• Maintenance Free Fully sealed and factory activated, it requires no maintenance other than keeping it charged in storage

• Ready to go With a voltage of over 12.5V the battery is ready to use right away

• New improved solid mounted terminals with threaded inserts


Replaces:

• Yuasa Y60N24A, Y60N24ALB, Y60N24LA, Y60N24LA2, 12N24-3, 12N24-3A, 12N24-4, 12N24-4A, YIX30, YIX30L, YIX30L-PW, YIX30L-BS, YIX30L-BS-PW, YB30LB, YB30CLB, Y60N30LA, Y60N30LB, GYZ32HL, 52515, 53030

• DEKA ETX30L, ETX30LA, ETX30

• ODYSSEY PC925 (Side Mounted)

• WPS 491-1007

Installation Instructions:

• Motobatt spec-MBTX30UHD.pdf

Specifications:

Battery Type	MBTX30UHD
Voltage	12
CCA	450A
MCA	513A
PHCA	705A
Capacity (10HR)	33Ah, C20 36Ah
Weight	10.40kg / 22.95Ibs
Dimensions (in / mm)	L: 6.54(166) W: 4.96(126) H: 6.89(175) TH: 7.56(192)
Assembly Figure Terminal Locations	4
Terminals	2 Black, 2 Red PART (MPC3)
Screws	2x Screws M6x12 (PART MPS4)
Terminal Caps	2 Black, 2 Red PART (MPC3)
Spacer	17mm Bottom (Part#MPC2), 2 Square Top Corners (Part#MPSC)
