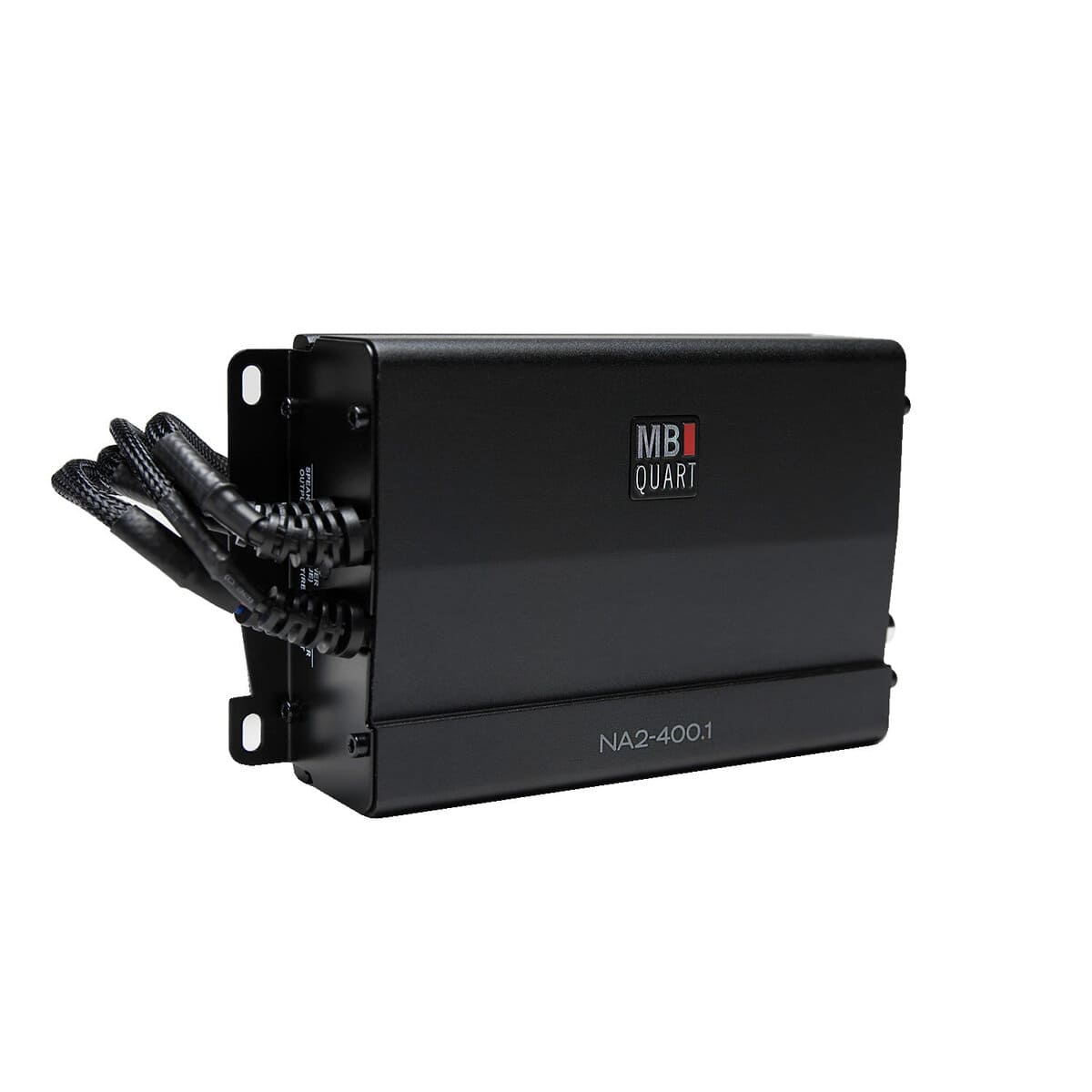

MB Quart NA2-400.1 Nautic 400 Watt Amplifier
MB Quart compact 400 watt mono Powersports amplifier to for a subwoofer with on-board equalization and simple installation with quick release connectors.
Features:
| Marine Grade Protection / IPX Rating | Amplifiers are ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture. IPX5 |
|---|---|
| Low Noise Preamplifier Circuit | Q-Stasis Pre Amplifier Stage: The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality. |
| RCA Inputs | 2 Pair RCA Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant. |
| Operation Mode | Mono Operation: Designed to power 1 subwoofer or subwoofer system. |
| Crossover Type | LPF: Complete control of amplifier signal, essential when using two or more amplifiers. |
| Class / Topology | Full Range Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a very small heatsink. |
| Output Device Technology | PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation. |
| Heat Sink | Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration. |
| Power Supply | Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. |
| Output Connections | Quick Disconnect Wires, RCA Connections: Quickly remove amplifier when you are putting machine up for the winter of as a security precaution. |
| Connection Type | Nickel-Plated Connections: Nickel plated corrosion resistant connections. |

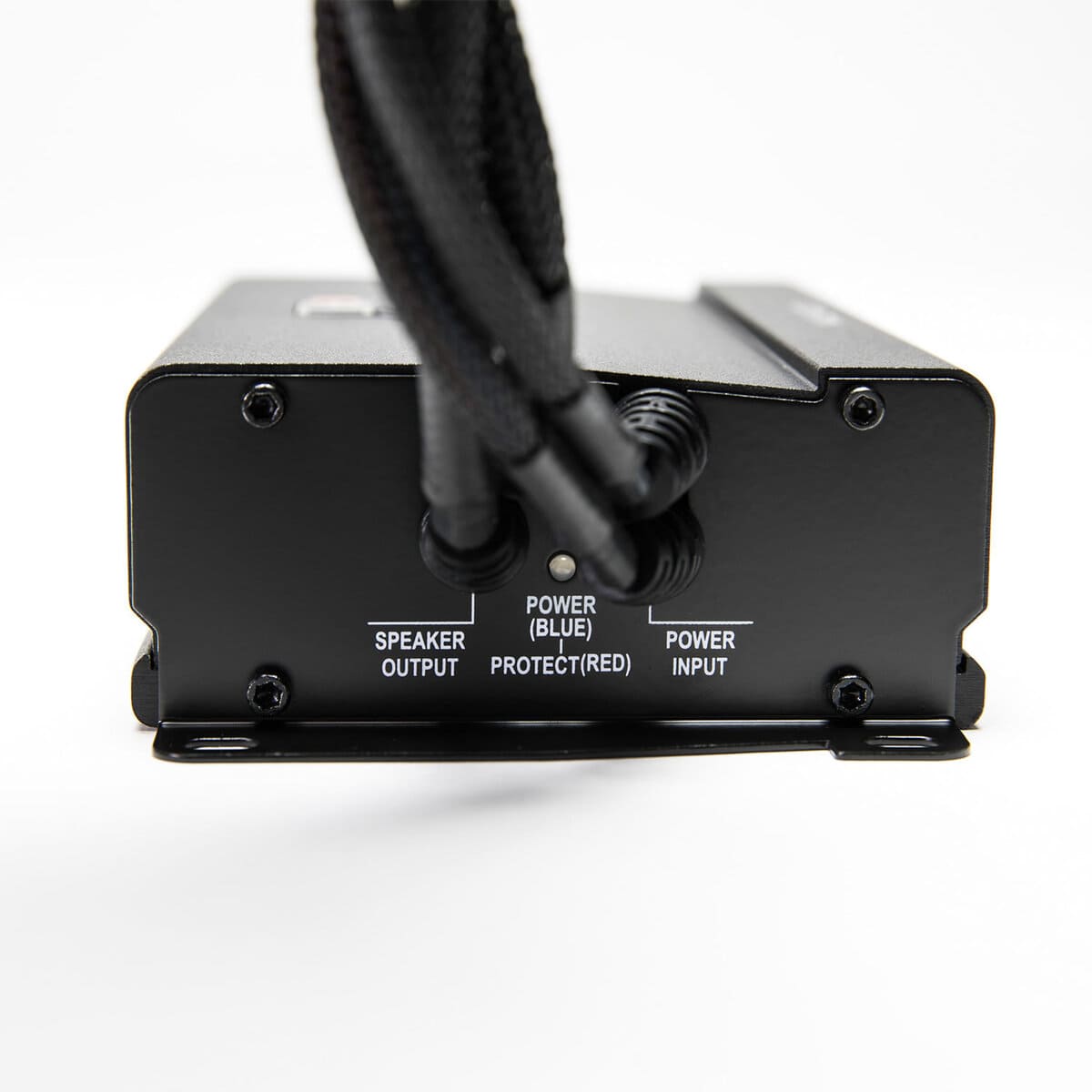

| LED System Protection Circuitry Diagnostics | Three-Stage Protection Circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. |
Specifications:
| Weight | 2.09 lbs. |
|---|---|
| Dimensions | 6.8 × 3.93 × 1.77 in |
| Type | Amplifier |
| Brand | MB Quart |
| Series | Nautic |
| Category | Marine, Powersports |
| Condition | New |
| Color | Black |
| Amp Class | Full Range Class D |
| Amp Total Channels | Mono |
| Amp Max Power (watts) | 400 |
| Amp Power @ 2 Ohms (ch x watts) | 1 x 400 |
| Amp Power @ 4 Ohms (ch x watts) | 1 x 200 |
| Amp Crossover | Electronic |
| Amp Variable Low Pass Crossover 12dB per Octave | 300Hz |
| Amp Bass Boost | 0-12dB @ 45Hz |
| Amp Subsonic Filter | 60Hz |
| Amp Variable Voltage | 0.2-9V |
| Amp Signal to Noise | > 100dB |
| Amp Frequency Response | 10Hz-300Hz |
| Amp Speaker Level Audio Inputs | RCA |
| Amp Power Terminal 12v/GND | Molex 10 GA |
| Amp Speaker Terminal Wire Gauge | Molex Plug Connector |
| Amp Fusing | 30A x 1 |
