KFI 2500 lbs Assault Winch

KFI 2500 lbs Assault Winch

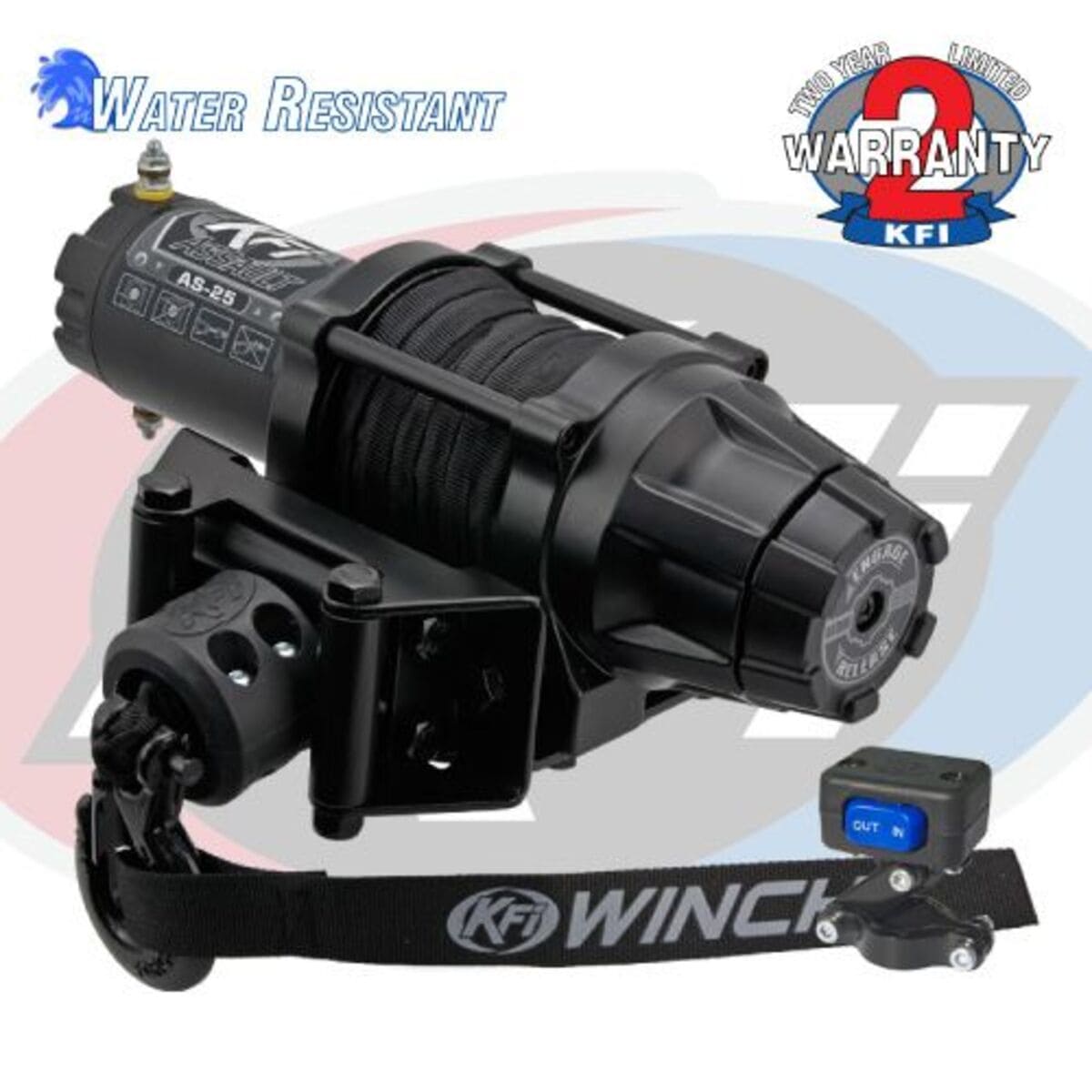

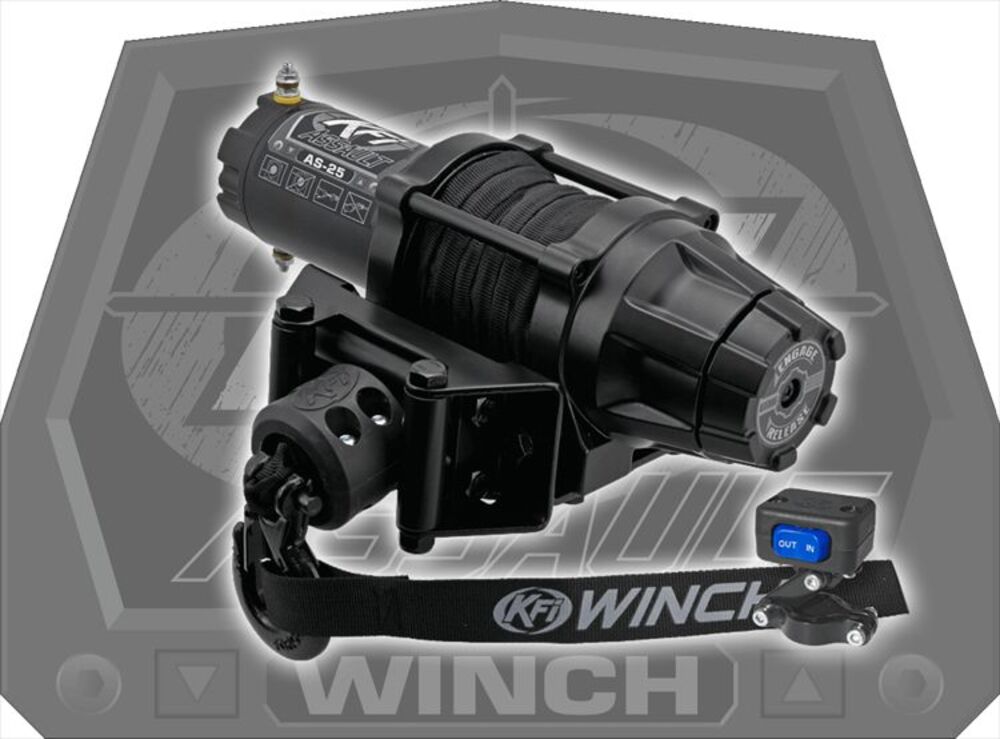

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SXS with a KFI winch and feel confident you can pull yourself out of any situation. This 2500LB ATV assault series winch features synthetic cable, cable hook stopper, a dynamic and mechanical braking system, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI 2-year limited warranty. The KFI as-25 assault winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

Instructions:

• Manual (AS-25)

Kit Includes:

50' synthetic cable with 5' protective sheath and end loop

Take control of your winch with the included mini-rocker switch that comes with an adjustable bracket to mount it to your ATV's handle bars and allows you to control your winch with the touch of your finger without ever letting go of your handle bars.

The all new heavy duty electric contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled by your switches.

Included is our KFI split cable hook stopper with the following benefits:

• Eliminates wear and tear on your rollers from the hook with can cause cable wear.
• Eliminates hook clatter from going down the trail.
• Protects the winch motor and gears from pulling the cable in too far and bottoming out on the rollers.
• Keeps tension on the hook to eliminate the cable becoming loose.
• Also has slits designed in it to work as an anti-kick back for the cable if your cable was to snap.
• Looks great.

Specifications:

SE25 Specifications
Model	As-25 Assault Series
Rated Line Pull	2500 Lbs.
Motor	12V DC, 1.07 HP Permanent Magnet
Gear Ratio	180:1
Gear/Transmission	All-Metal Planetary Gear Drive
Brake	Dynamic and Mechanical
Clutch (Free Spooling)	All Metal Cam Activated Freespool
Drum Size	1.75" (D) X 3.19" (L)
Synthetic Cable	3/16" (D) X 50' (L) Smoke Color
Fairlead	Multi-Directional POM Roller
Control	Deluxe Handlebar-Mounted Mini-Rocker Control Switch
Winch Dimensions	13.5" L X 4.44" D X 4.76" H
Mount Plate	Fairlead Mount Only (A Model Specific Mount Is Necessary for Your Make and Model ATV)
Mounting Bolt Pattern	3.00" X 4.88" (4-Hole)
Recommended Battery	12 Amp/Hour Minimum
Warranty	Limited 2 Year
Winch Weight	24.3 Lbs. (Complete Kit)
