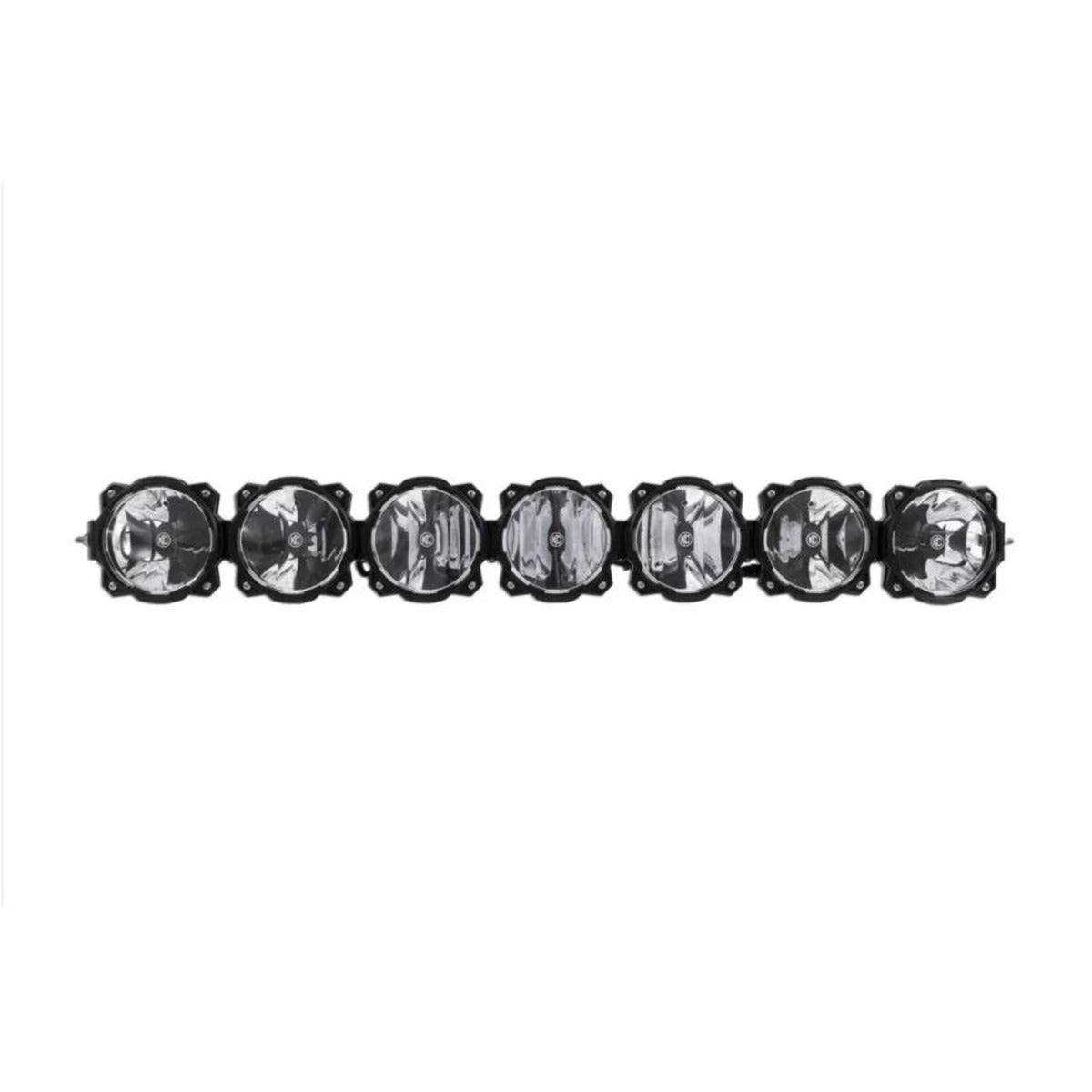

KC HiLiTES 140W Combo Beam 45" Gravity Pro6 LED 7 Light Bar System
The Gravity LED Pro6 LED light bar is an LED off-road lighting system utilizing patented Infinity Ring system featuring radius to straight adjustability, modular beam patterns, and expandable widths.
Performance Gravity Led Optics: Patented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of driving and wide-40 G6 optical inserts.
Infinity Ring System: The patented Infinity Ring system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape, and a radius or straight setting between each ring.
Universal End Mount System: The Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck, or SUV.
Race-Proven Strength & Durability: Inspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable, and scalable LED light bar design available today.
Features:
- Powered by patented and powerful Gravity LED G6 optical inserts
- Patented Infinity Ring system enables the conversion of the Pro6 from straight to radius configurations in seconds
- Signature KC modular design is expandable to different widths
- High output, low amperage draw
- G6 LED Optics available in Spot, Driving, Wide-40 Beam Patterns
Specifications:
| Weight | 30.000000 |
|---|---|
| Wattage Per Light | 21.36W |
| Total Wattage | 149.52W |
| Amp Draw Per Light | 1.78a |
| Total Amp Draw | 12.46a |
| Voltage | 9V-36V |
| Lumens Per Light | 2,508lm |
| Total Lumens | 17,556lm |
| Lux Per Light | 7,215lx (Spot) / 1,550lx (Wide 40) |
| Total Lux | 4,957lx |
| Candela Per Light | 721,250cd (Spot) / 155,000cd (Wide 40) |
| Total Candela | 495,657cd |
| Light Temp | 5000 K |
| Lens Color | Clear |
| LED Color | White |
| Beam Pattern | Combo |
| Beam Distance | 704m |
| Light Technology | LED |
| Mount Location | Bumper, Overhead |
| Size of Products | 45" |
| Material | Aluminum Alloy |
| Product Finish | Black |
| Included Components | 45" 7-Light Gravity® LED Pro6 Light Bar, 7 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch |
| Color | Black |
| Product Dimensions | W: 45.625 " x H: 6.06 " x D: 3.33 " |
| Tag Line | Modular. Linkable. Curvable. |
| UPC | 084709913144 |
| IP Rating | IP68 |
Installation Instructions:
