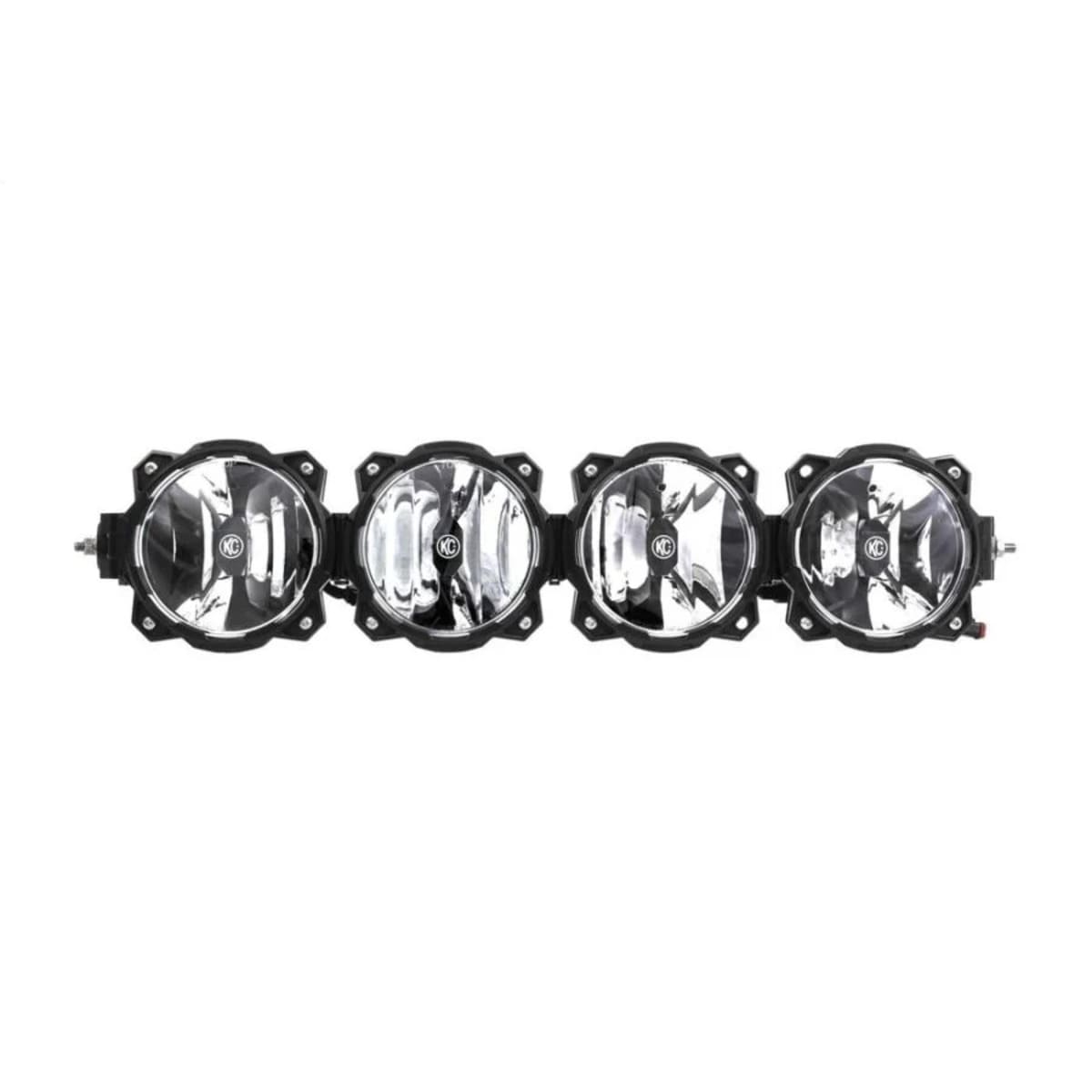

KC HiLiTES 80W Combo Beam 26" Gravity Pro6 LED 4-Light Bar System

KC HiLiTES 80W Combo Beam 26" Gravity Pro6 LED 4-Light Bar System



The Gravity LED Pro6 LED light bar is an LED off-road lighting system utilizing patented Infinity Ring system featuring radius to straight adjustability, modular beam patterns, and expandable widths

Performance Gravity Led Optics: Patented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of Spot and Wide-40 G6 optical inserts.

Infinity Ring System: The patented Infinity Ring system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape, and a radius or straight setting between each ring.

Universal End Mount System: The Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck, or UTV.

Race-Proven Strength & Durability: Inspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable, and scalable light bar design available today.



Features:

• Powered by Gravity LED G6 optical inserts – efficient, powerful, patented

• Patented Infinity Ring system enables the conversion of the Pro6 from straight to radius format in seconds

• Signature KC modular design is expandable to different widths

• Extremely high output with very low amperage draw

• Includes Spot and Wide-40 beam pattern lights



Specifications:

Weight	16.000000
Wattage Per Light	21.36W
Total Wattage	85.44W
Amp Draw Per Light	1.78a
Total Amp Draw	7.12a
Voltage	9V-36V
Lumens Per Light	2,508lm
Total Lumens	10,032lm
Lux Per Light	2,886lx (Spot) / 1,550lx (Wide 40)
Total Lux	2,353lx
Candela Per Light	288,500cd (Spot) / 155,000cd (Wide 40)
Total Candela	235,332cd
Light Temp	5000 K
Lens Color	Clear
LED Color	White
Beam Pattern	Combo
Beam Distance	485m
Light Technology	LED
Mount Location	Bumper, Overhead
Size of Products	26"
Material	Aluminum Alloy
Product Finish	Black
Included Components	26" 4-Light Gravity LED Pro6 Light Bar, 4 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
Color	Black
Product Dimensions	W: 26.575 " x H: 6.06 " x D: 3.33 "
Tag Line	Modular. Linkable. Curvable.
UPC	084709913199
IP Rating	IP68



Kit Includes:

• (1) Pro6 LED Light Bar

• (4) Black light covers with KC logo

• Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch



Installation Instructions:

• 3265DN-gravity_pro6lightbar_USletter_full_04112025-rev2
• Installation Guide - KC 3264QA Pro6 Wiring Harness
