DS18 NXL 5-Channel Full-Range Class D 4 x 150 @ 4-Ohm & 1 x 600 @ 2-Ohm Watts RMS IP67 Amplifier

DS18 NXL 5-Channel Full-Range Class D 4 x 150 @ 4-Ohm & 1 x 600 @ 2-Ohm Watts RMS IP67 Amplifier

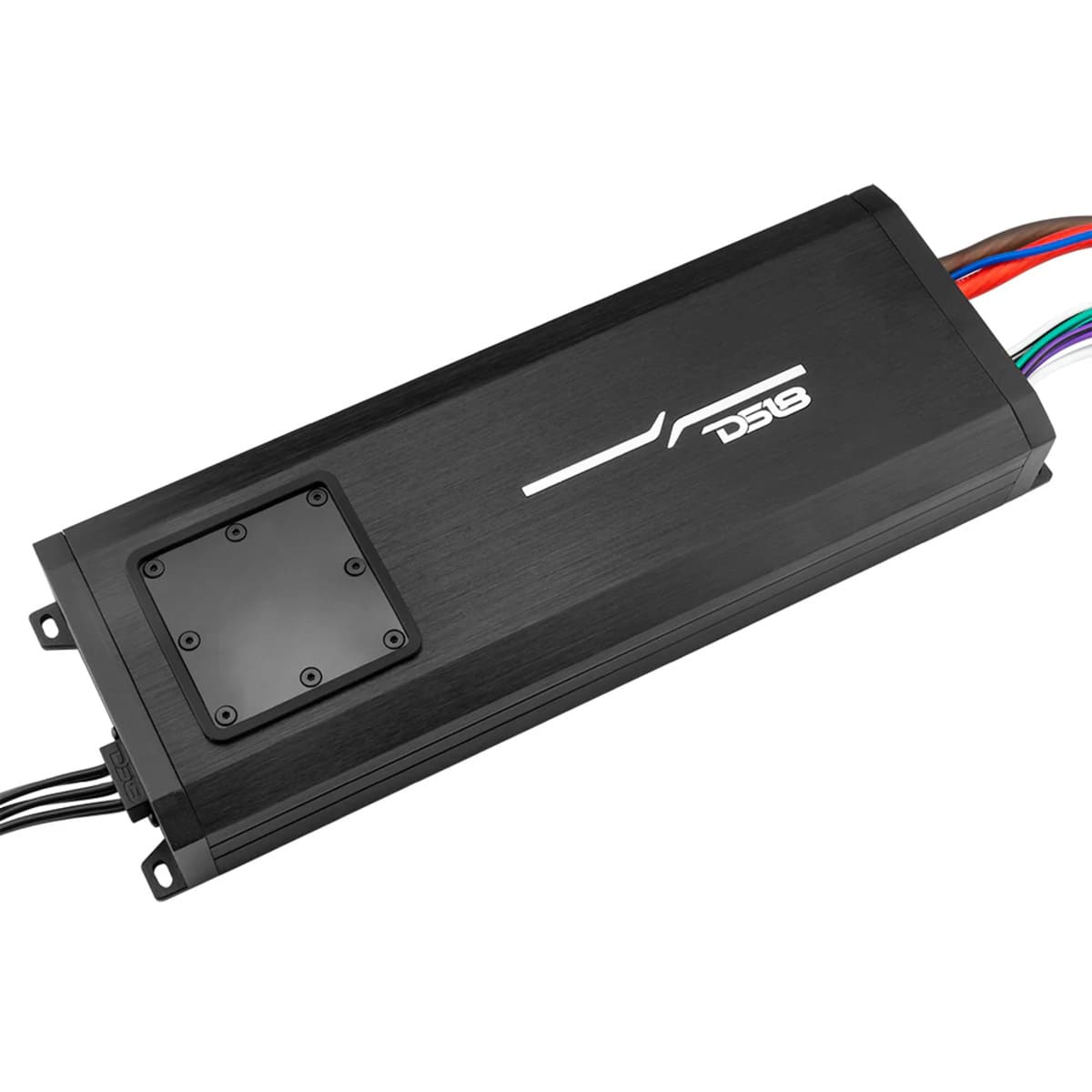

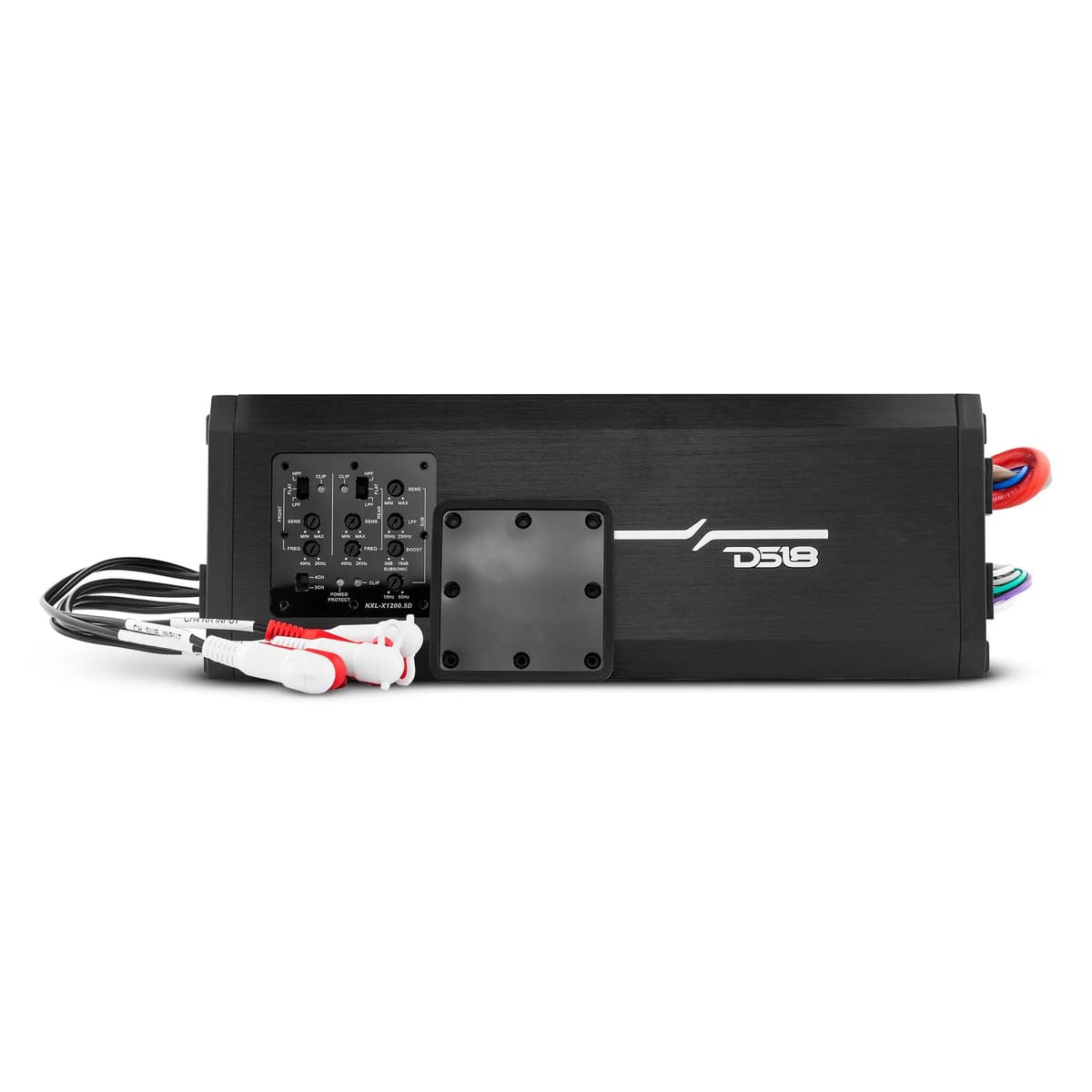

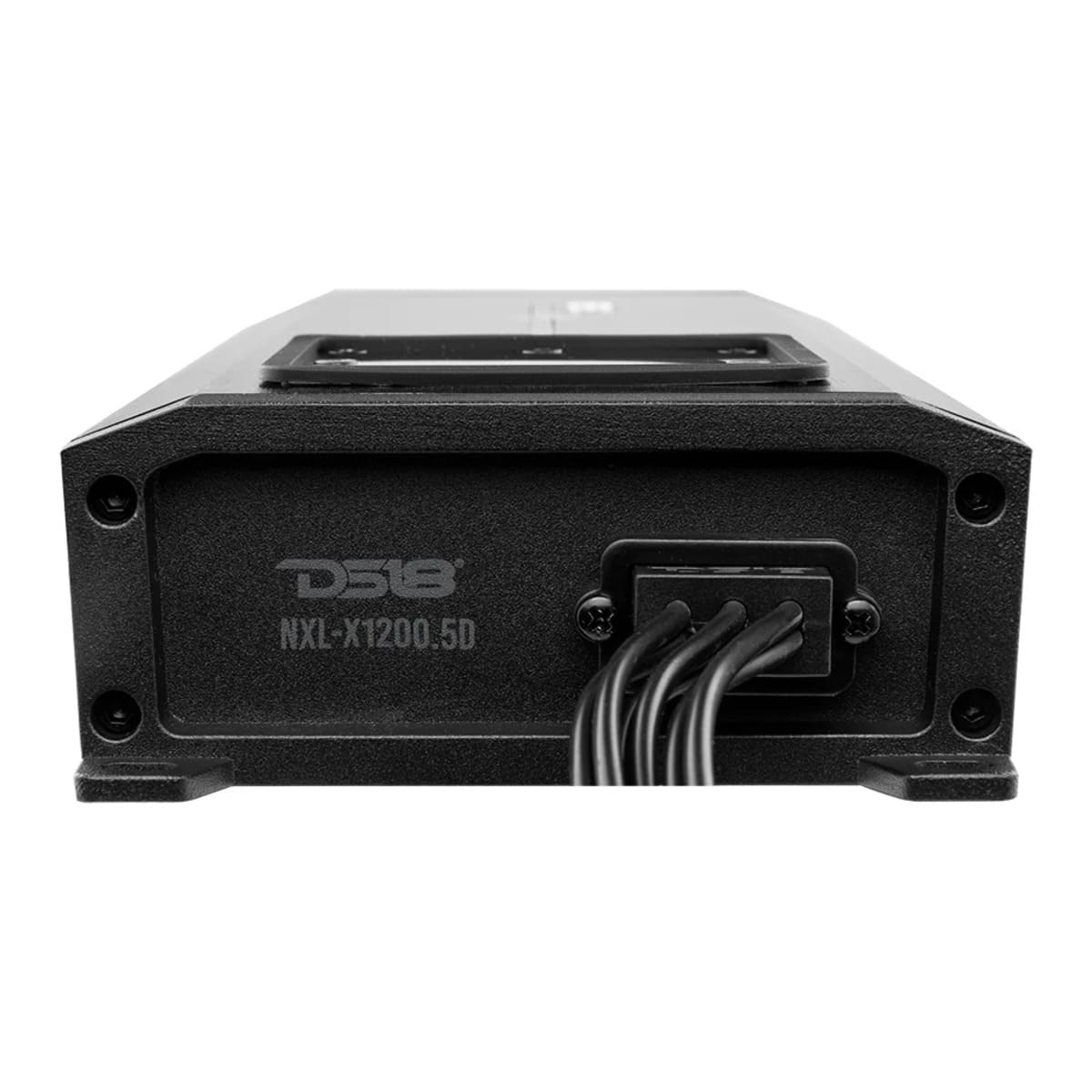

DS18’s NXL-X1200.5D offers exceptional performance in a small, waterproof package.

This full range amplifier can be used with subwoofers, mid-ranges, and tweeters, providing crystal clarity at any volume level. Fine-tune your speaker choice with the high pass and low pass filters for an unparalleled audio experience.

Featuring stable and reliable 4-layer PCB layouts, an IP67 waterproof rating for power sports, and an ultra-compact size for easy installation, this NXL Marine Amplifier ensures optimal performance in any environment.

DS18’s NXL-X1200.5D is the perfect companion for outdoor enthusiasts who crave superior sound quality while exploring trails or enjoying water activities. However, please note that these amplifiers are not suitable for submersible use as it will void the warranty.

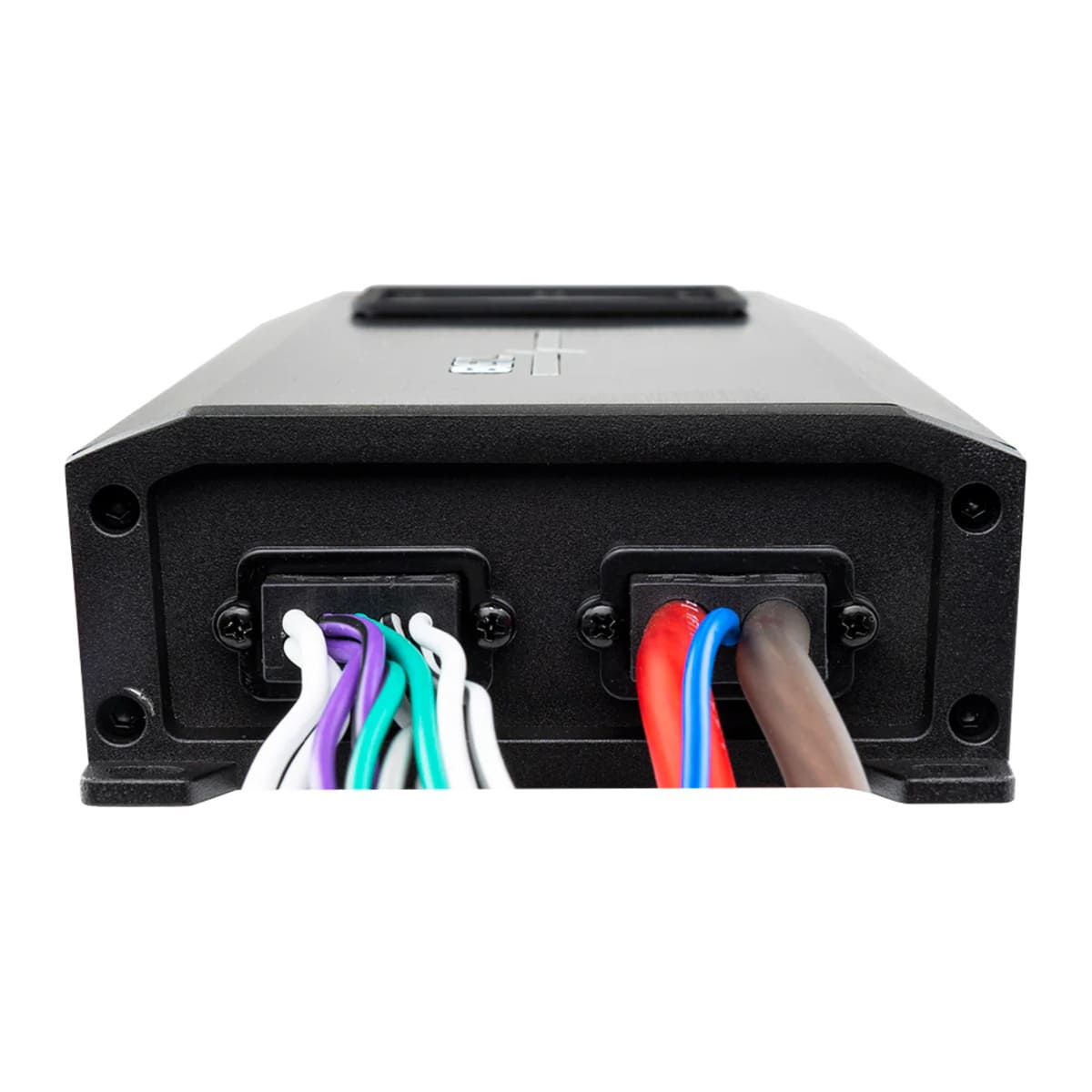

Highlighted features of the DS18 HYDRO NXL-X1200.5D include a marine-grade fuse and fuse holder for ultimate protection against the elements, a 2-channel or 4-channel input selector, and a direct power harness design with marine-grade OFC tinned wires.

The latest digital amplifier design with SMC technology ensures high-quality sound reproduction and efficient power usage. DS18’s NXL-X1200.5D is perfect for marine applications, off-road adventures, and DIY projects.

Features:

• Marine Full Range

• 5 Channel

• 4 x 150 Watts @ 4 Ohm

• 1 x 600 Watts @ 2 Ohm

• Built in Crossover ~ Class D

• Water Resistant IP67
• HPF/FULL/LPF
• LED Indicator

Instructions:

• NXL-X Amp Spanglish Manual WEB V1


Specifications:

General Specifications:

• Total Watts (Peak): 2800W

• RMS Power @ 4 ohm: 4 x 150W +1 X 350W (SUB)

• RMS Power @ 2 ohm: 4 x 200W + 1 X 600W (SUB)

• RMS Power @ 4 ohm Bridge: 2 x 400W

Audio:

• Frequency Response: 10Hz-250Hz

• Signal to Noise Ratio 1W @ 4Ω: > 85dB

• Efficiency @ 4 ohm: 85%

• Input Impedance: 20K OHM

• Channel Separation: 60dB

• Total Harmonic Distortion (THD): < 0.05%

• Low Level Input Range: 200mV-5V

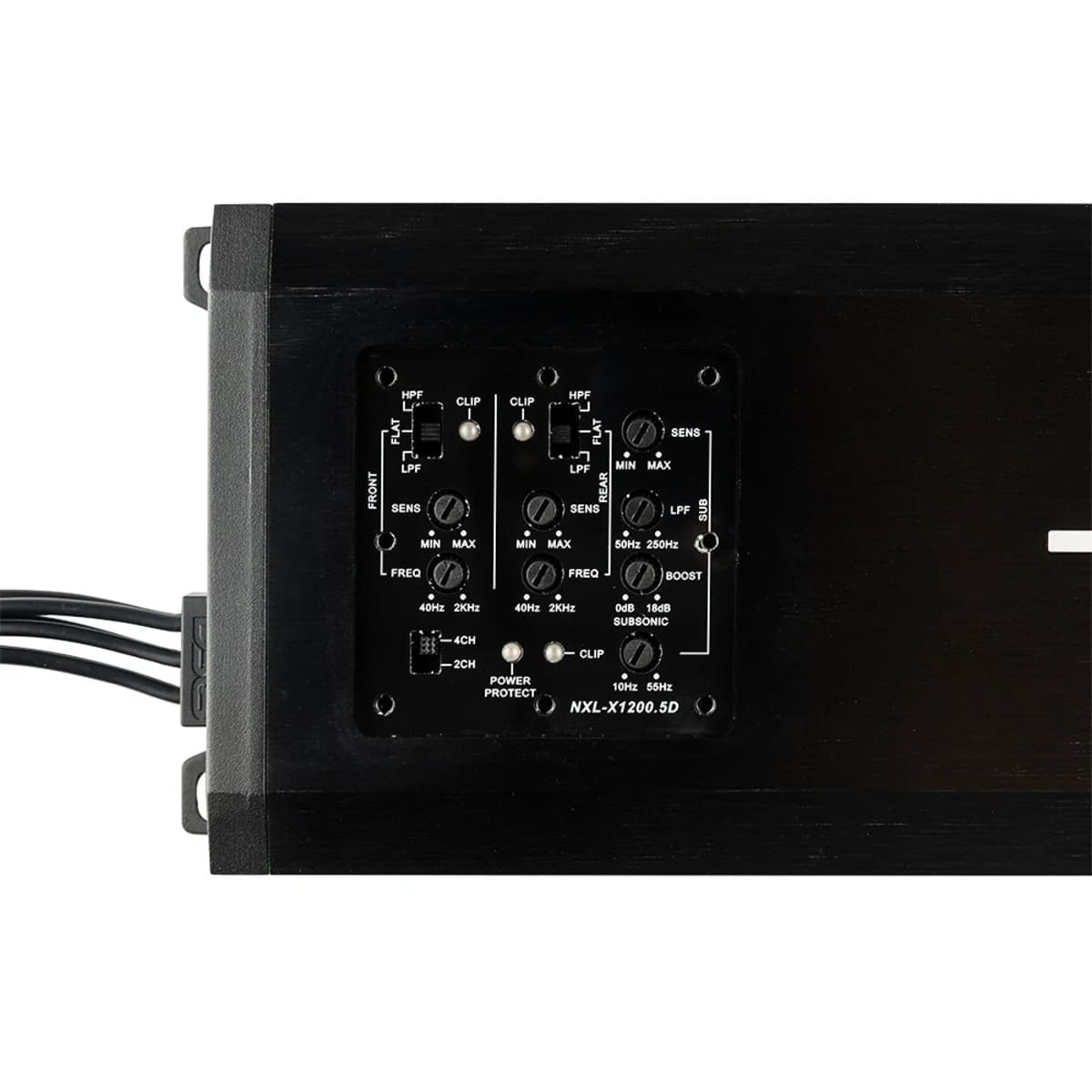

• Selectable X-Over: (HPF/Full/LPF) / LPF Fixed (SUB)

• X-Over Filter Range: 40Hz-2KHz / 50Hz-250Hz (SUB)

• Bass Boost Range: 0-18dB (SUB)

• Bass Boost Frequency: 42Hz (SUB)

• Infrasonic Filter: 10Hz-55Hz (SUB)

Features 1:

• Amplifier Class: Digital

• Amplifier Type: Stereo Full Range + Subwoofer

• Number of Channels: 5

• Minimum Impedance: 2 Ohm (Stereo) / 4 Ohm (Bridge) / 2 Ohm (Sub)

• LED Indicator: Power | Protection | Clip

• Power Input Size: 4GA Tinned OFC

Features 2:

• Fuse Size: 2 x 50A (100A)

• Thermal Protection: Yes (75°C)

• Over-Load Protection: Yes

• Short Circuit Output Protection: Yes

• Voltage Input Protection: Yes (7-16V)

• Body Color | Finish: Black Brushed Aluminum

Extra Features:

• 2Ch / 4Ch Input Selector: Yes / Dedicated SUB input

• RCA Audio Output: No

• Waterproof Rating: IP67

• UV / Salt Fog Protection: Yes

• Direct Power Harness Design: Yes

• Quick Connect Plug: Yes

• Surface Mount Component Technology: Yes

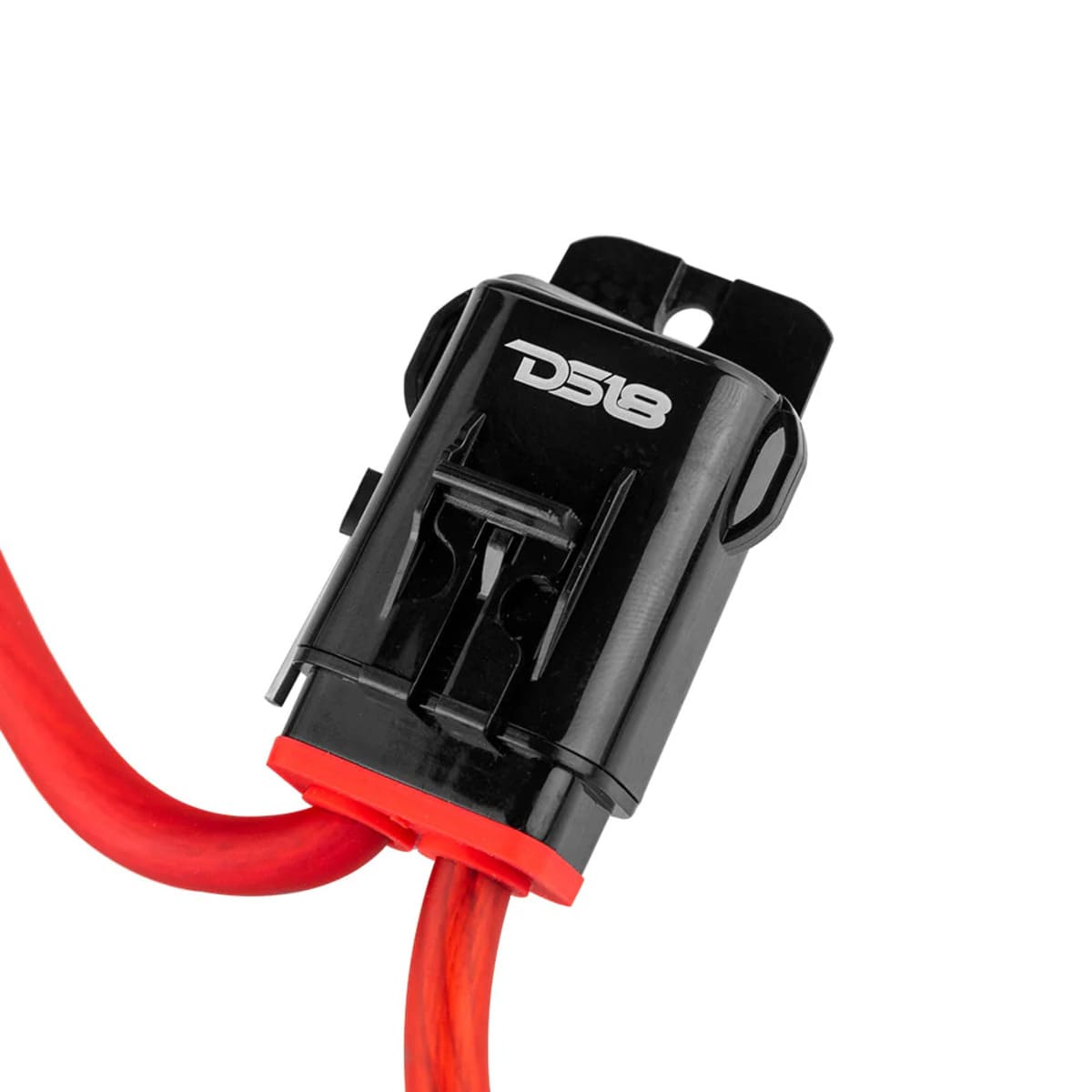

• Marine Grade Fuse Holder: Yes

Measurement:

• Overall Length: 12.67" / 322mm

• Overall Wide: 4.4" / 112mm

• Overall Height: 1.77" / 45mm

• Heatsink Length: 11.87" / 301.7mm

• Gross Single Unit Weight: 2.4kg

• Product Weight: 6.5 lbs

• Product Dimensions: 16 x 9 x 3.75

• M/C Weight: 33.5 lbs

• M/C Dimensions: 19.25 x 16.75 x 10

• M/C QTY: 5

• Sold In: Piece
