Diode Dynamics Stage Series LED Scene Light Kit

Diode Dynamics Stage Series LED Scene Light Kit

Add functional scene lighting to your rig with the Stage Series LED Scene Light Kit! This kit allows you to mount four Dual-Color Stage Series Rock Lights along the top side rails of popular bed and roof rack brands such as Prinsu, Sherpa, RCI, and more. The integrated dual-color design provides both a high-power white for maximum visibility, and your choice of amber or red for lower glare at night. With bolt-on installation and seamless integration, it's the perfect lighting solution for campsites, trail repairs, or late-night adventures.

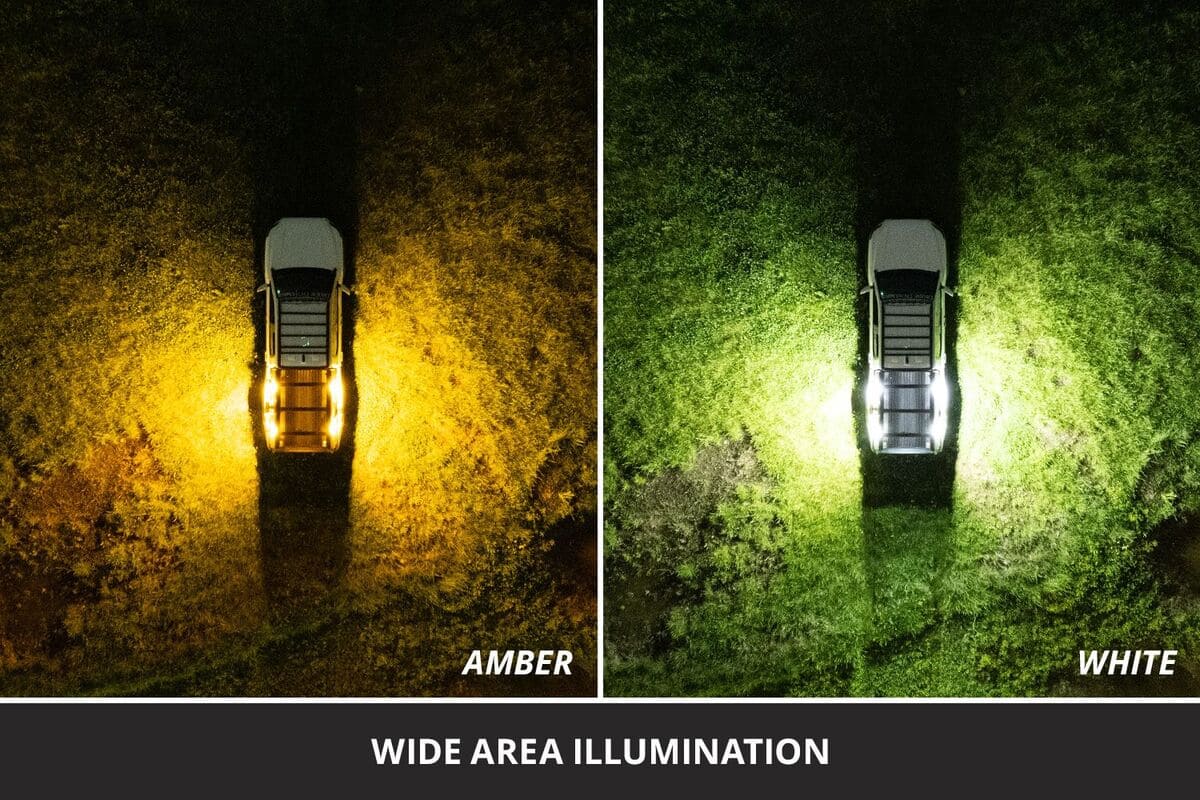

Unmatched Light Output: The Stage Series LED Scene Light Kit features an angled bracket design, providing optimal ambient scene lighting for any situation. By pairing optically engineered lenses with high-powered LEDs, the Stage Series Rock Lights included in this kit provide significant output to the area surrounding your vehicle.

Dual-Color Output: The Stage Series Rock Lights included in this kit use a simple 3-wire system, allowing you to toggle between Cool White and your choice of Red or Amber with ease, providing optimal output for any situation. Whether you want a crisp, cool white light for maximum visibility or a softer red or amber to reduce glare, you can easily switch between colors with the included toggle switch.

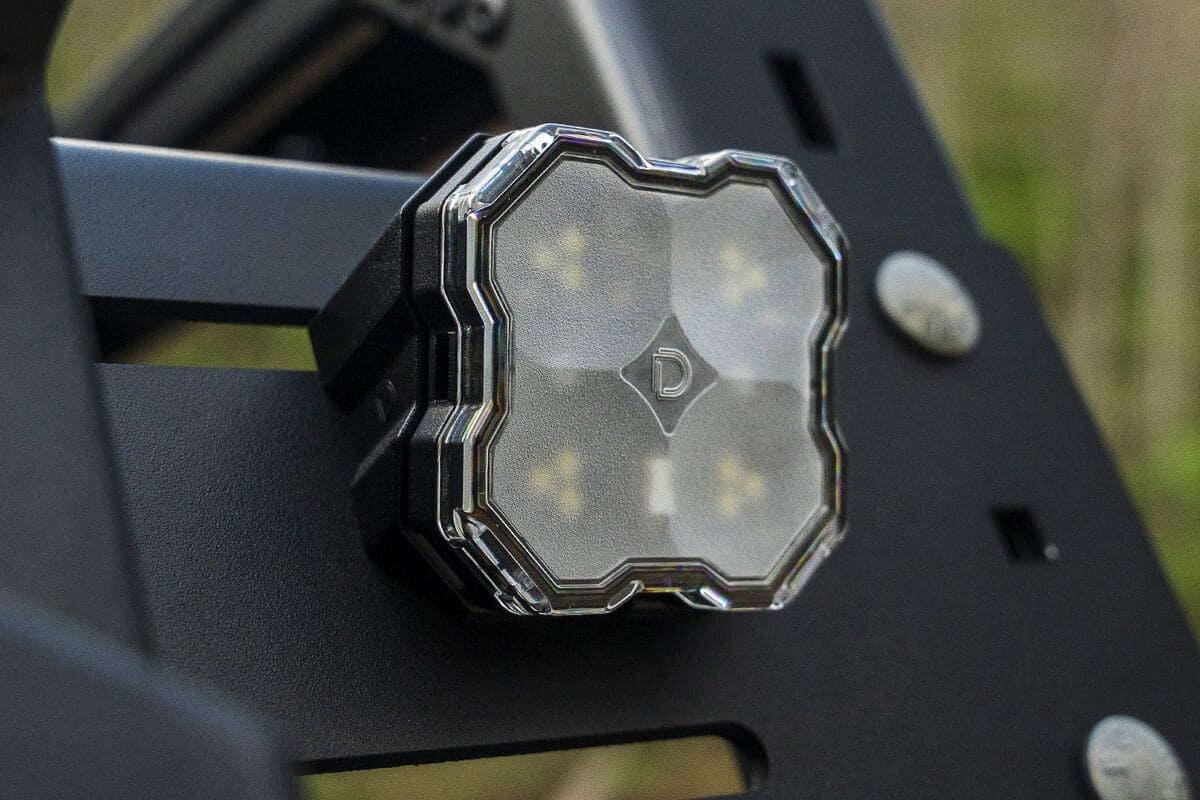

Optically-Engineered Interchangeable Lenses: When adding more light output to your scenery, most options on the market are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we've incorporated optical features to get the best performance possible. Four individual optics are molded into each outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating. And the best part? The lenses are interchangeable, and can be swapped out easily for a quick color change. The White/Red option includes four additional Amber lenses, allowing you to swap the Cool White output for a brilliant Amber. This provides a unique Amber/Red dual-color setup, perfect for low-glare lighting at night.

Seemless Integration: The mounting system for this kit was designed with rack systems like Prinsu and Sherpa in mind, allowing for bolt-on installation with some of the most popular racks on the market. Each mount is angled outward and downward, providing optimal coverage for the area around your vehicle. With a low-profile design, this kit won't interfere with other accessories, like rooftop tents or gear.

Proven Reliability: We know your scene lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited lifetime warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Scene Lights will handle whatever you throw at them.

Experience: After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

Features:

• Allows you to mount four exterior LED rock lights as scene lights

• Angled design provides optimal ambient scene lighting

• Easily swap between output colors with built-in dual color functionality

• Seamlessly integrates with popular rack brands such as Prinsu and Sherpa

• Made in USA with Global Materials

• The Power of Dual-Color: The Rock Lights included in this kit feature dual-function LEDs, allowing you to toggle between Cool White and your choice of Red or Amber with the flip of a switch.

• Optically-Designed Lenses: Four individual optics are molded into the outer lens, which provide excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? The lenses are interchangeable, and can be swapped out easily, as needed.

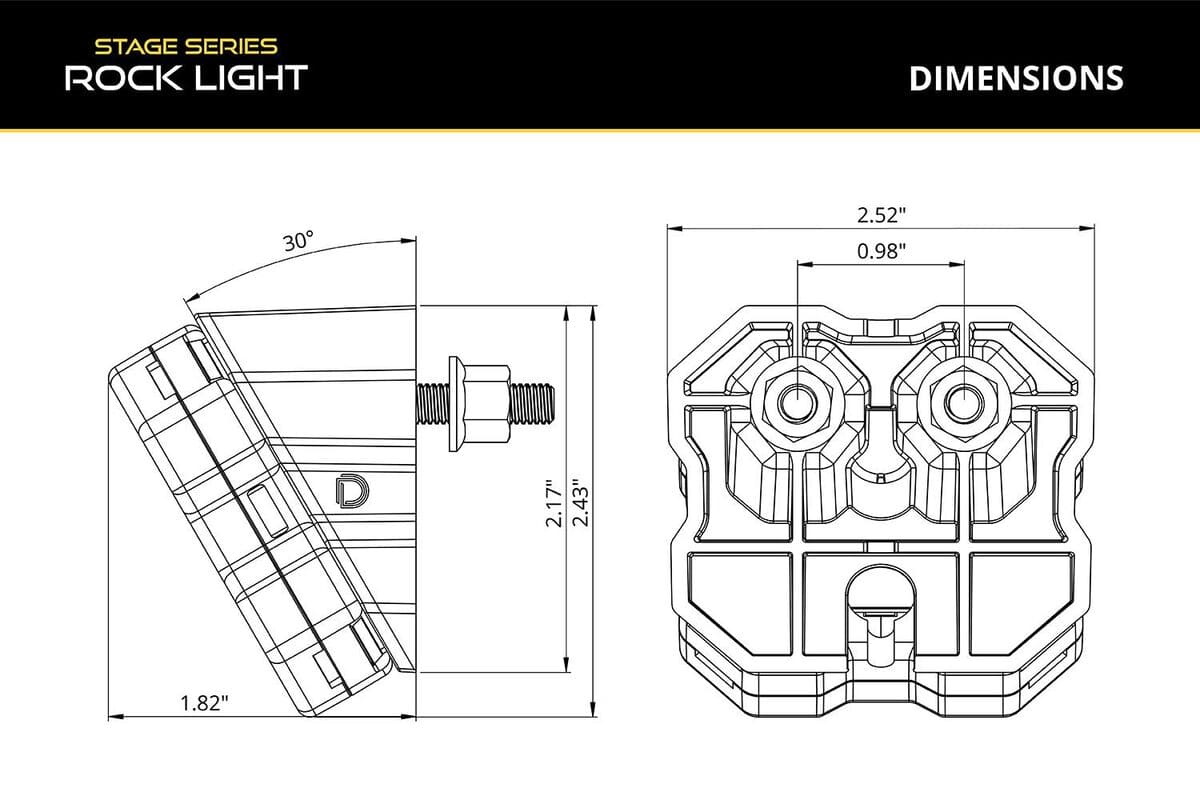

• Angled Mounting: The Stage Series LED Scene Light Kit features an angled bracket design, providing optimal ambient scene lighting for any situation.

• Upgrade Your Rack: This kit integrates seamlessly with some of the most popular racks on the market, including Prinsu, Sherpa, RCI Off Road, and Westcott Designs, providing a significant upgrade with simple installation.

• Made in USA: This product is proudly engineered and *made in the USA using globally sourced materials for unmatched performance and reliability. At Diode Dynamics, we design, test, and manufacture with complete control in-house to ensure the highest standards of quality.

Specifications:

• Raw Lumens: White: 1440, Amber: 1080, Red: 240

• Intensity (cd): White: 150, Amber: 120, Red: 30

• Color Temp (CCT): 1900K, 5700K

• Beam Angle: Round, 60°

• Power (watts): White: 7.7, Amber: 11.5, Red: 11.5

• Operating Voltage: 9-16V

• Current (amps @ 13.2V): White: .6, Amber: .9, Red: .9

• Wire Size: 28AWG

• Polarity: Polarity Specific

• Operating Temperature: -40C to 85C (-40F to 185F)

• LED Emitter: Lumileds Z ES

• Connector(s): M8 Input

• Driver Features: Linear Regulated

• Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum

• Cooling: Passive, Pin-Fin heatsink

• Intrusion Ratings: IP68 Waterproof

• Unit Weight (lb): 0.1

• Product Weight (lb): 0.9

• Shipped Weight (lb): 2.5

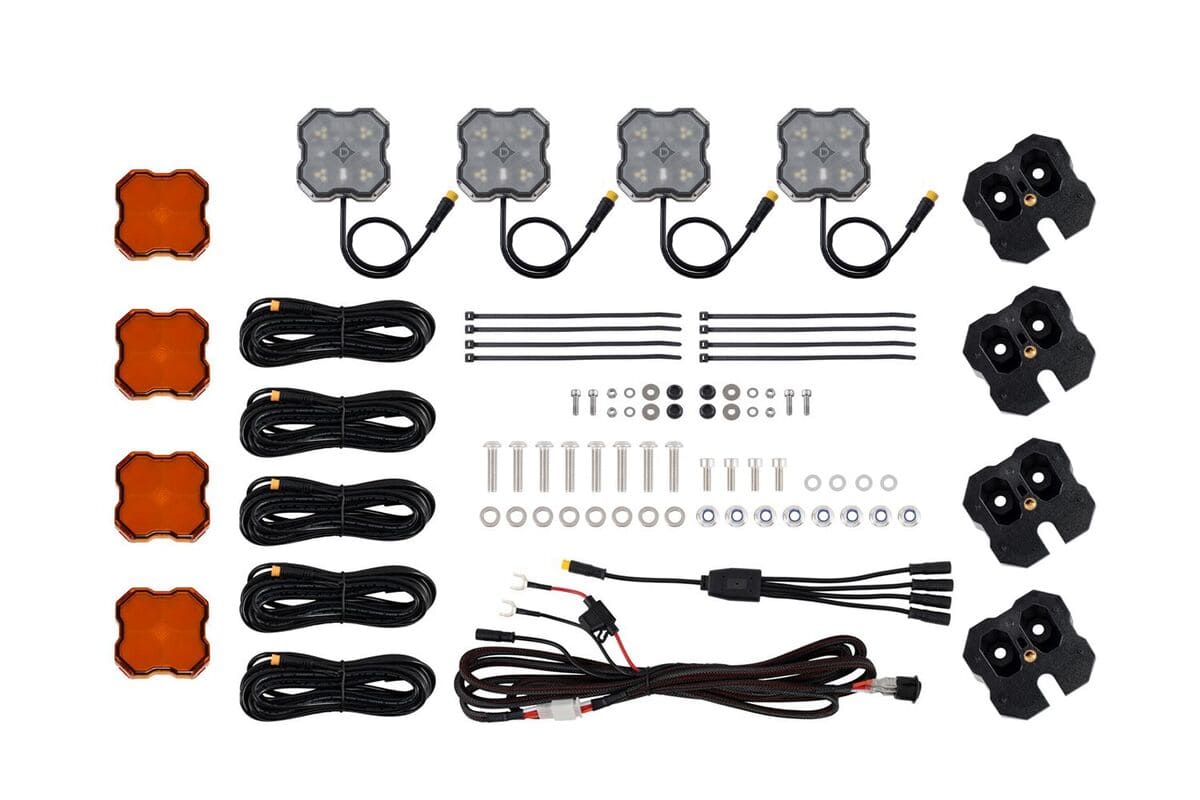

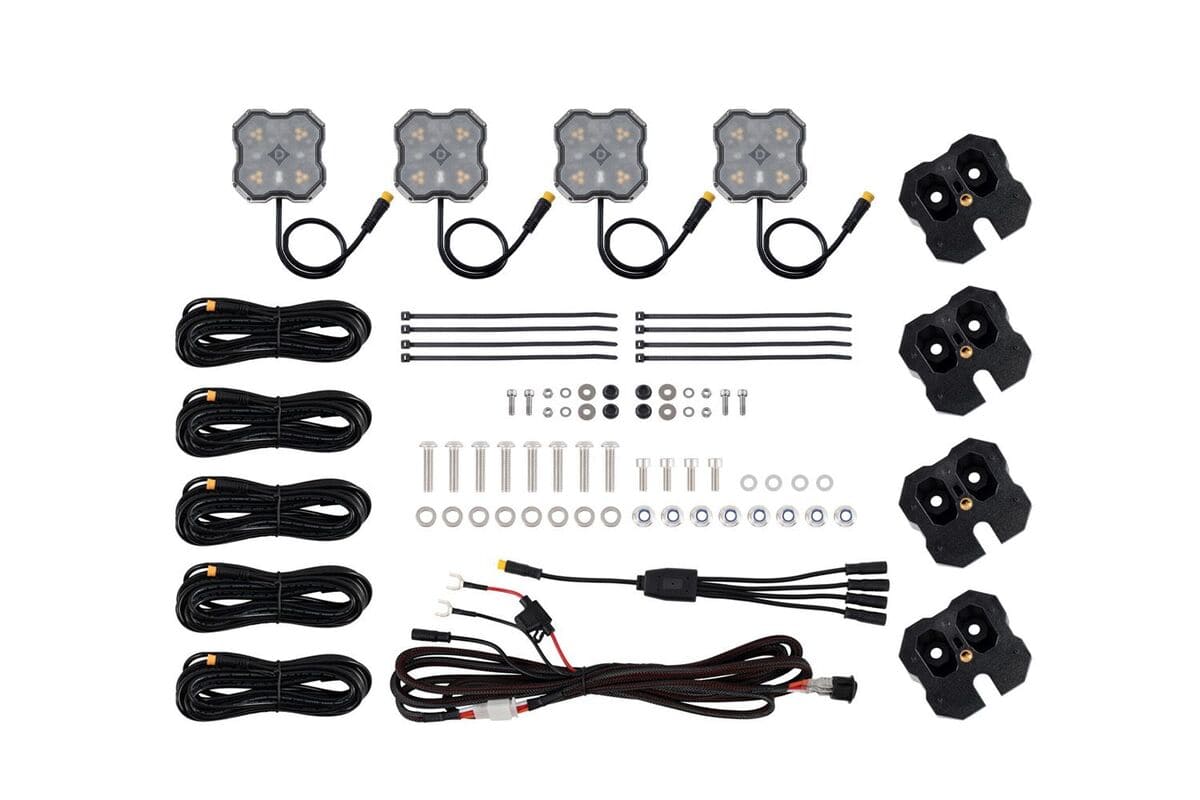

Kit Includes:

• Four (4) Stage Series Rock Lights

• Four (4) Amber Rock Light Lenses (White/Red Kit Only)

• Four (4) Rock Light Mounts

• One (1) Rock Light Single Output Harness

• Five (5) 5m Extension Wire

• One (1) 4-Way Splitter

• Eight (8) Zip Ties

• Mounting Hardware

• Installation guide

• Quantity: Four (4)


Fitment:

• This kit is compatible with some of the most popular rack systems on the market, including brands such as Prinsu, Sherpa, RCI Offroad, Westcott Designs, and more!
