Diode Dynamics '19-'24 Honda Talon Stage Series Reverse Light Kit

Diode Dynamics '19-'24 Honda Talon Stage Series Reverse Light Kit

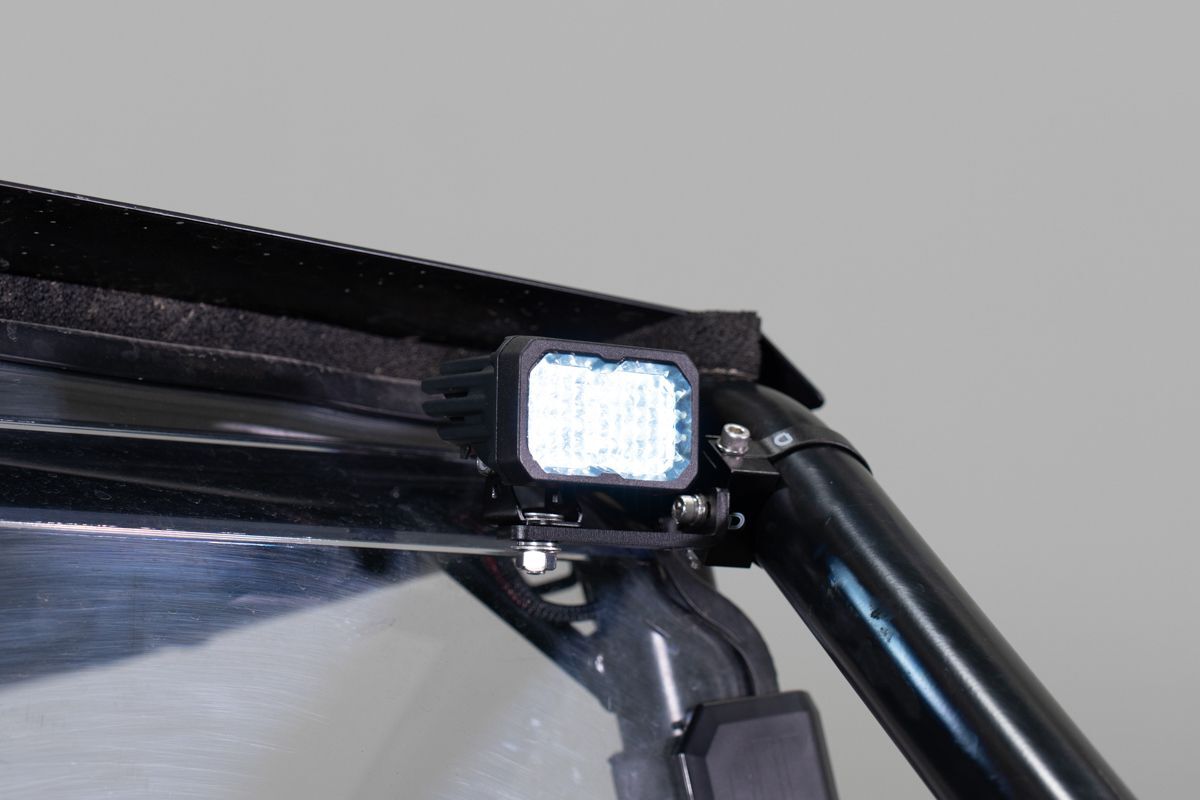

The Reverse Light Kit for the 2019-2024 Honda Talon from Diode Dynamics allows you to mount two SSC2 LED pods on the factory roll bar above the rear cargo bed without any cutting or drilling. This kit includes an integrated red accent light, along with a powerful cool white main beam for more light output while backing up at night.

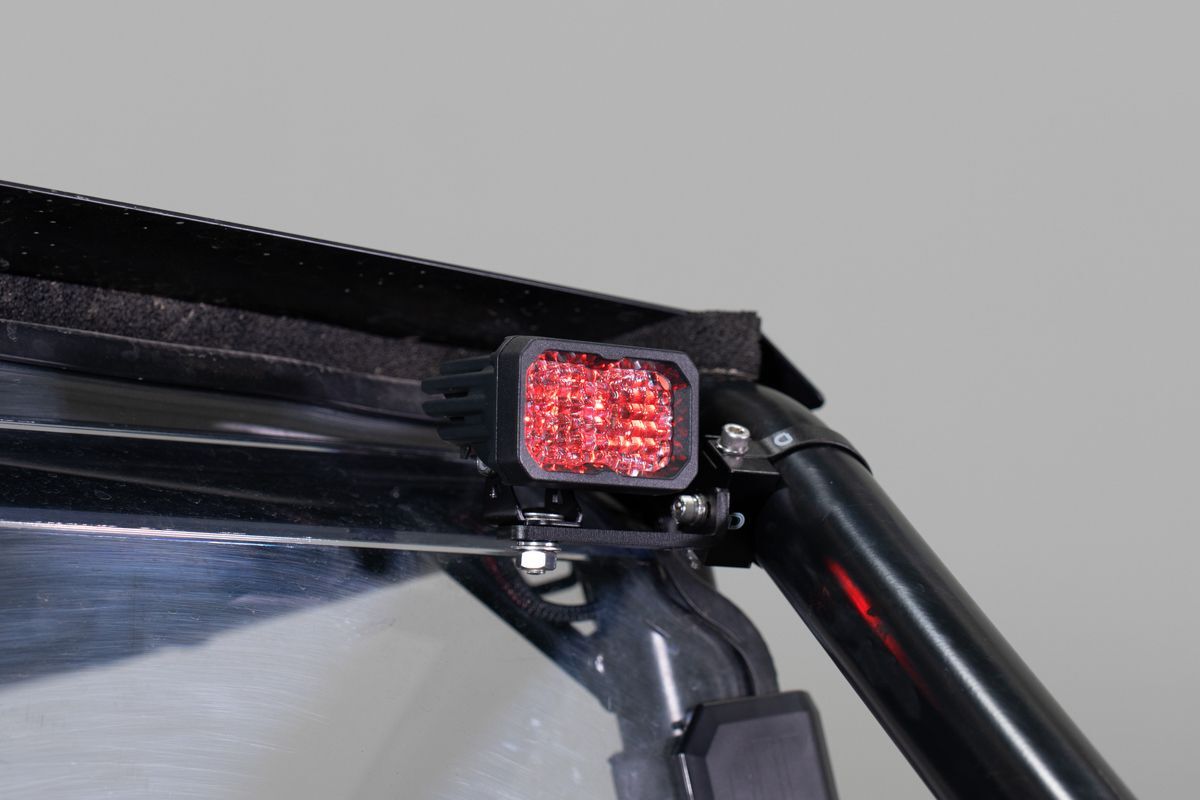

Backlight Functionality: The Stage Series LED pods included with this kit feature a distinctive backlight in a vibrant red color which can function as an additional accent light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

Focused: Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of our pods is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Patterns. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

Flood: pattern was designed to provide uniform, even illumination with a full 60x60 degree spread on the SSC2 LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

Features:

• Mount two SSC2 pods above the rear cargo bed.
• Adds high-power reverse light, and red accent light.
• Bolts onto the roll bars, no cutting or modification.
• Designed and assembled in USA.

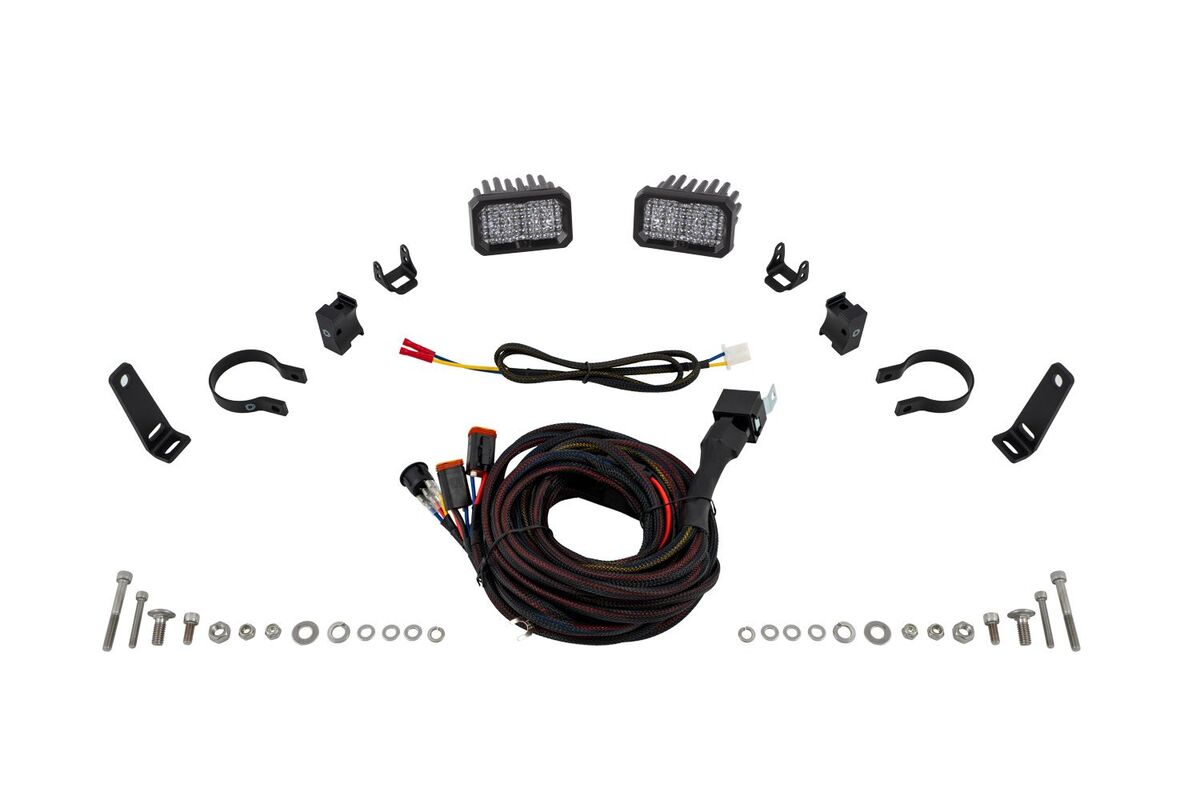

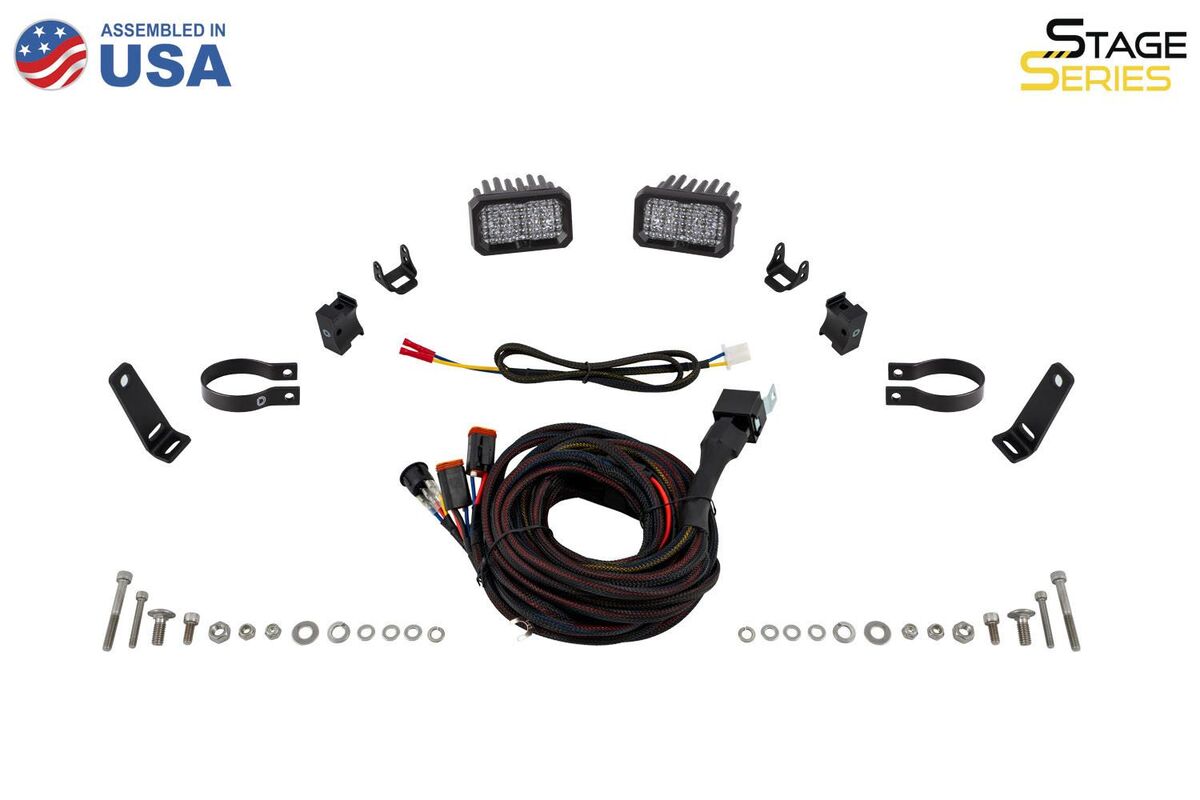

In the Box:

• Two (2) SSC2 LED Pods
• Two (2) 2" Roll Bar Mount Kits
• One (1) Heavy Duty Dual Output 4-pin Wiring Harness

Application:

• Datasheet(s) (click to download): SSC2 Sport White Standard, SSC2 Pro White Standard

• Color Temp (CCT): 6000K

• Beam Angle: Flood, 80°x50°

• Current (amps @ 12.8V): 1.1

• Polarity: Polarity Specific

• Operating Temperature: -40C to 85C (-40F to 185F)

• LED Emitter: Luxeon Z ES, Cree XP-L HI, Cree XHP50

• Connector(s): Deutsch DT Input

• Driver Features: Constant Current

• Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

• Cooling: Passive, Pin-Fin heatsink

• Compliance Ratings: SAE J575 Durability Test

• Intrusion Ratings: IP67 Weatherproof

• Unit Weight (lb): 0.9

• Product Weight (lb): 3.6

• Shipped Weight (lb): 4.6

Fitment:

• Make: Honda
• Model: Talon
• Years: 2019, 2020, 2021, 2022, 2023, 2024
