Aftermarket Assassins '20 Polaris RZR Pro XP S3 Clutch Kit

Aftermarket Assassins '20 Polaris RZR Pro XP S3 Clutch Kit

This should be one of your first modifications
Our S3 recoil clutch kits pack a huge punch! No matter the terrain, they hit hard and just keep pulling for days. On the trail or at the race you'll notice wicked acceleration and instant clutch response when getting back into the throttle after hammering that corner. In the dunes you'll see the same benefits, but also have much less bogging when climbing that big dune. The machine will hold RPM so you can get where you need to go, and get there faster! Going mudding? Our mud setup will help turn those tires through the thick and deep with much better RPM and wheel speed that's key to climbing out of that hole. We have a huge amount of CVT knowledge, a great passion for the sport, and have many hours into testing different setups in the real world. We know you'll be extremely pleased with the performance gain from our clutch kits!
The biggest problem with Pro XP clutching is they do not have enough belt grip. When the first Pro XP models arrived they had a soft secondary spring that slipped the belt under full shift. They were then fitted with a stiffer secondary spring and now the problem is they rev too high for good belt grip with that spring. Our kit helps combat this with a stiffer secondary spring over factory for even better belt grip, and the right primary weight/spring to get proper RPM. Our S3 clutch kit includes everything the S2 does, but adds the helix. The helix adds more aggressive shift to the secondary clutch which gives you big acceleration gains and feels more like your throttle is locked to the rear wheels.

Performance Helix 107-1043: Aggressive helix with acceleration/higher horsepower/aggressive fast pace drivers in mind.
Pro XP 2 Seat: Works well with 30-33" Dirt Tires, 30-32" dune paddles
Pro XP 4 Seat: Works well with 30-32" Dirt Tires, 28-30" dune paddles
High Load Helix 107-1042: Slightly less aggressive than the 1043 helix with good acceleration gains/power transfer over the OEM helix. Designed for a heavier vehicle, heavier tires, heavy sand load or crawling type riding in mind. Excellent all around helix for any Pro XP!
Pro XP 2 Seat: Works well with 30-35" Dirt Tires, 30-32" dune paddles
Pro XP 4 Seat: Works well with 30-33" Dirt Tires, 28-32" dune paddles
Our Recoil clutch weights are easily adjustable with simple magnets. They have a custom AA profile, the BEST coating on the market (nitrocarburizing) which has increased wear resistance, improved fatigue strength, and added surface lubricity. These clutch weights also offer great performance and the ability to tune for many different applications or modification in the future, all without the need to buy extra parts. The magnetic weights are the best option to properly place the mass where we need it on the weight for best performance for your application.
An initial setup guideline is included which shows the best setups for dunes, mud, or all around trail riding. This also has brief instructions on installing your clutch kit, and other important information.

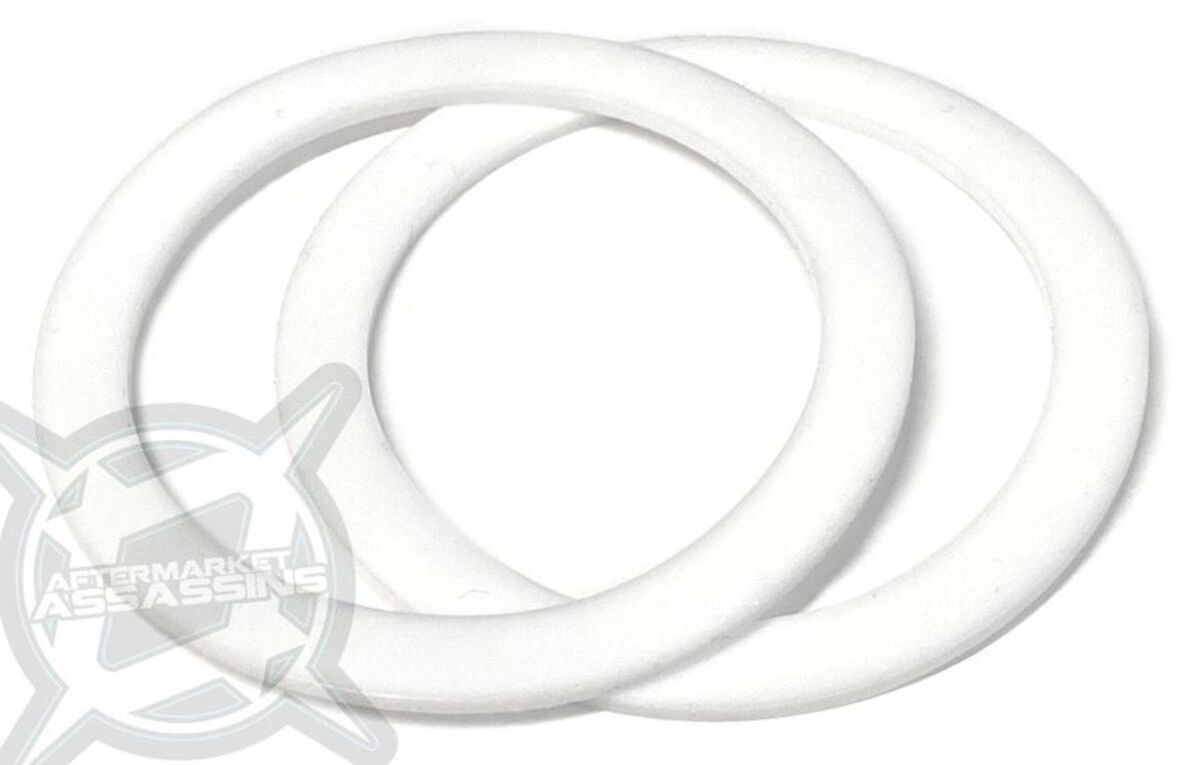

Optional: Butter shift washers for slightly more spring pressure, smoother shifts, and less clutch harmonics
We HIGHLY suggest running our Stryker Belt as we've found it grips much better in the clutch
 We also HIGHLY suggest our Revolver Billet Clutch Cover with Tower Lock as the P90X clutch design is very weak.
We HIGHLY suggest our Primary Clutch Limiter to prevent clutch over shift belt rub on the clutch housing
Have alignment issues? Use our P90X Secondary Clutch Alignment Shim Kit to set things straight
Highly recommend upgrading to our Heavy Duty P90X Secondary Clutch Rollers
The only special tool needed is our Compression Tool 1.

Features:

• Kits work great with both stock or modified machines
• Works with tire or paddle sizes 28" to 35" depending on helix choice
• A must have when running larger tires or paddles
• Wicked throttle response when on & off the throttle
• More efficient power transferred to the wheels
• More consistent clutch performance
• Cooler running belt temps, especially with larger tires or paddles
• Longer belt and clutch life
• Easily adjustable if needed
• Slightly higher engagement which is still very smooth (1800-2000 RPM)

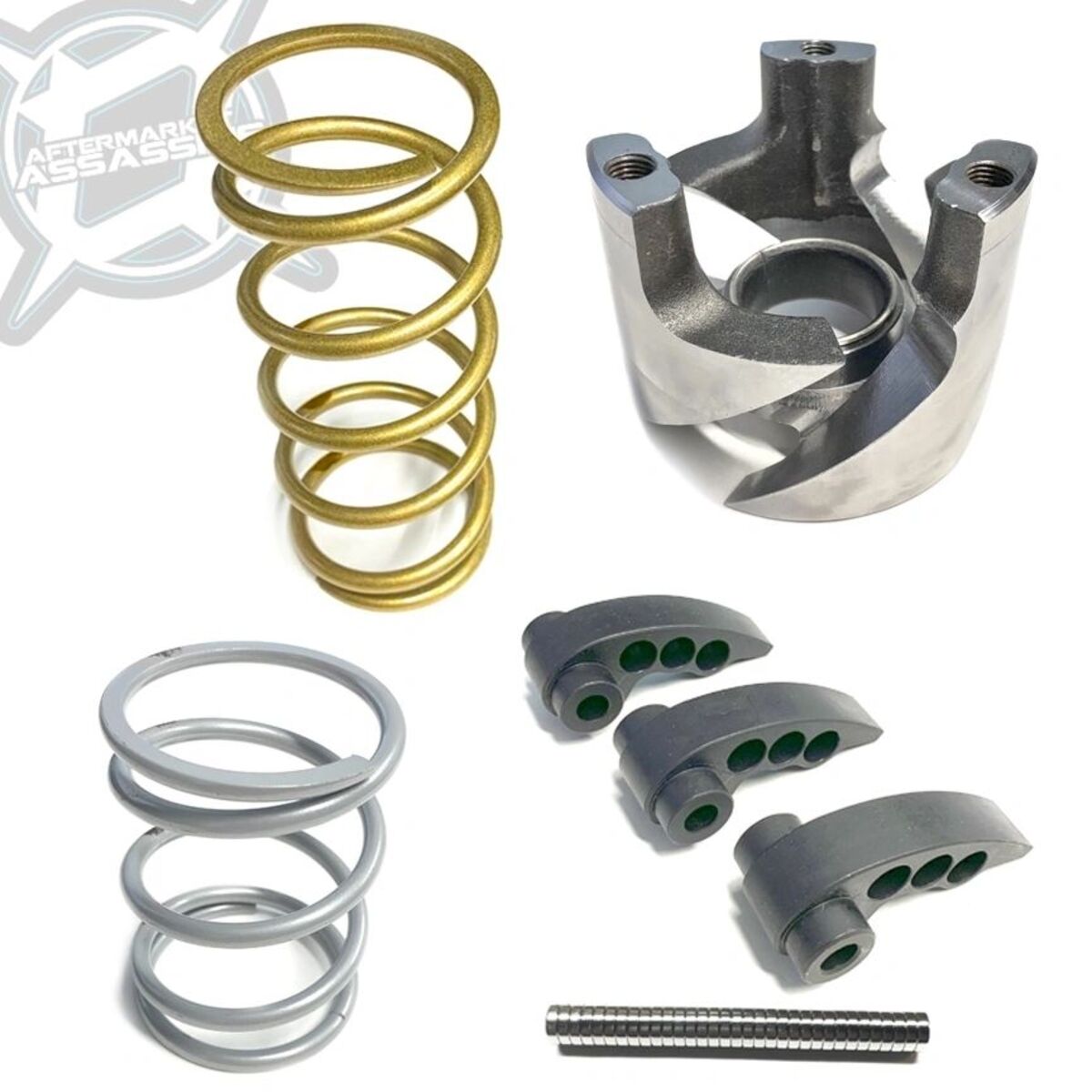

Kit Includes:

• Kits include: AA magnetic adjustable clutch weights,
• AA primary spring,
• AA secondary spring
• Our AA custom cut helix

Note:

• Does NOT fit 2021-Up Models as the helix design changed


Fitment:

• Fits ONLY 2020 RZR Pro XP Models 2 & 4 Seat

Installation Instructions:
