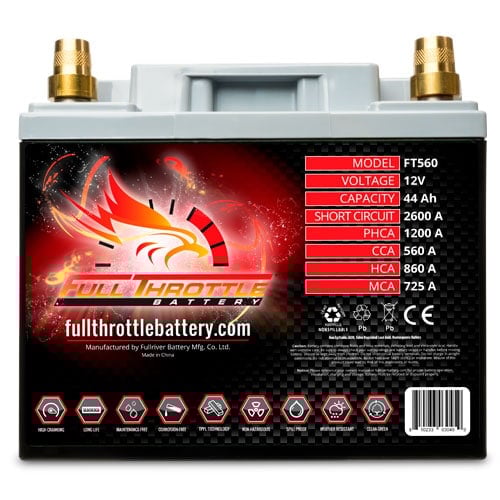

Full Throttle (Fullriver) FT560 High Capacity Dual Purpose AGM Battery (Right Positive)
SKU: FR-FT560/FU-BHD-X3

Full Throttle (Fullriver) FT560 High Capacity Dual Purpose AGM Battery (Right Positive)

SKU: FR-FT560/FU-BHD-X3
$305.99 $359.99
Custom Icon
Earn $5 Fueled Cash
This item ships FREE

Full Throttle (Fullriver) FT560 High Capacity Dual Purpose AGM Battery (Right Positive)

Cycling Capacity
20 hour rate 44 Amp Hours
Reserve Capacity
@ 25 Amps 80 minutes @ 75 Amps 14 minutes
Mechanical Specifications
Group Size
Terminal Type M8
Total Height 6.69" (170 mm)
Height 6.69" (170 mm)
Width 6.54" (166 mm)
Length 7.80" (198 mm)
Weight 33.3 lbs (15.1 kg)
Case Type ABS Plastic - Flame Res Rating UL94-HB
Discharge Table (Constant Current)
Time Amps Rate
20 hr 2.2 0.05 CA
10 hr 4 0.1 CA
8 hr 4.8 0.13 CA
5 hr 7 0.25 CA
3 hr 11.3 0.33 CA
2 hr 14.7 0.5 CA
1 hr 27.2 1 CA
Electrical Specifications
Nominal Voltage 12 Volt
Capacity @ 100 hour rate 48 AH
Capacity @ 20 hour rate 44 AH
Capacity @ 10 hour rate 40 AH
Capacity @ 5 hour rate 35 AH
CCA 560
CA or MCA 725
Short Circuit Current 2600 Amps
Internal Resistance 2.7m Ω
Charge Voltages
Battery Voltages
Charge Stage 12V 24V 36V 48V
Bulk 14.7 V 29.4 V 44.1 V 58.8 V
Absorption 14.7 V 29.4 V 44.1 V 58.8 V
Float 13.6 V 27.2 V 40.8 V 54.6 V
TC Factor: -4mV/°C/cell
Temperature Range Specifications
Condition Recommended Maximum
Storage -15°C to 50°C -40°C to 71°C
Operation -15°C to 40°C -40°C to 71°C
Charge with TC -15°C to 50°C -40°C to 71°C
Charge without TC 0°C to 40°C -15°C to 50°C
Terminal Torque Specifications
Terminal Type ft-lbs in-lbs Nm
AP | DT (AP) | M6 | M6M (stud) | TP07 (AP) | TP08 (AP) 4.2 - 6.0 50-70 5.6 - 7.9
FR45 6.0 - 7.5 70-90 7.9 - 10.1
M8 | LT 7.1 - 8.0 85-95 9.6 - 10.7
DT (stud) | M10M (stud) 9.2 - 10.4 110-125 12.2 - 14.0

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Full Throttle Battery

Full Throttle (Fullriver) FT560 High Capacity Dual Purpose AGM Battery (Right Positive)

From $254.99 $299.99

Full Throttle (Fullriver) FT560 High Capacity Dual Purpose AGM Battery (Right Positive)

Cycling Capacity
20 hour rate 44 Amp Hours
Reserve Capacity
@ 25 Amps 80 minutes @ 75 Amps 14 minutes
Mechanical Specifications
Group Size
Terminal Type M8
Total Height 6.69" (170 mm)
Height 6.69" (170 mm)
Width 6.54" (166 mm)
Length 7.80" (198 mm)
Weight 33.3 lbs (15.1 kg)
Case Type ABS Plastic - Flame Res Rating UL94-HB
Discharge Table (Constant Current)
Time Amps Rate
20 hr 2.2 0.05 CA
10 hr 4 0.1 CA
8 hr 4.8 0.13 CA
5 hr 7 0.25 CA
3 hr 11.3 0.33 CA
2 hr 14.7 0.5 CA
1 hr 27.2 1 CA
Electrical Specifications
Nominal Voltage 12 Volt
Capacity @ 100 hour rate 48 AH
Capacity @ 20 hour rate 44 AH
Capacity @ 10 hour rate 40 AH
Capacity @ 5 hour rate 35 AH
CCA 560
CA or MCA 725
Short Circuit Current 2600 Amps
Internal Resistance 2.7m Ω
Charge Voltages
Battery Voltages
Charge Stage 12V 24V 36V 48V
Bulk 14.7 V 29.4 V 44.1 V 58.8 V
Absorption 14.7 V 29.4 V 44.1 V 58.8 V
Float 13.6 V 27.2 V 40.8 V 54.6 V
TC Factor: -4mV/°C/cell
Temperature Range Specifications
Condition Recommended Maximum
Storage -15°C to 50°C -40°C to 71°C
Operation -15°C to 40°C -40°C to 71°C
Charge with TC -15°C to 50°C -40°C to 71°C
Charge without TC 0°C to 40°C -15°C to 50°C
Terminal Torque Specifications
Terminal Type ft-lbs in-lbs Nm
AP | DT (AP) | M6 | M6M (stud) | TP07 (AP) | TP08 (AP) 4.2 - 6.0 50-70 5.6 - 7.9
FR45 6.0 - 7.5 70-90 7.9 - 10.1
M8 | LT 7.1 - 8.0 85-95 9.6 - 10.7
DT (stud) | M10M (stud) 9.2 - 10.4 110-125 12.2 - 14.0

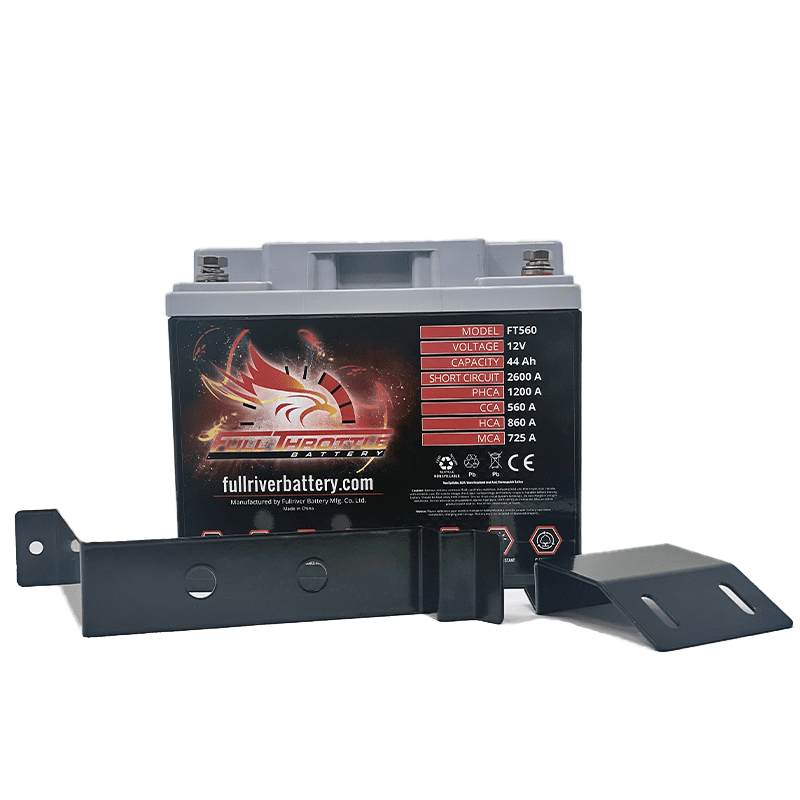

Add Bracket for X3?
